Toro Workman HDX Auto - Oil Filter Assembly

Workman HDX Auto
Page 3 − 18
Kohler Gasoline Engine
Oil Filter Assembly

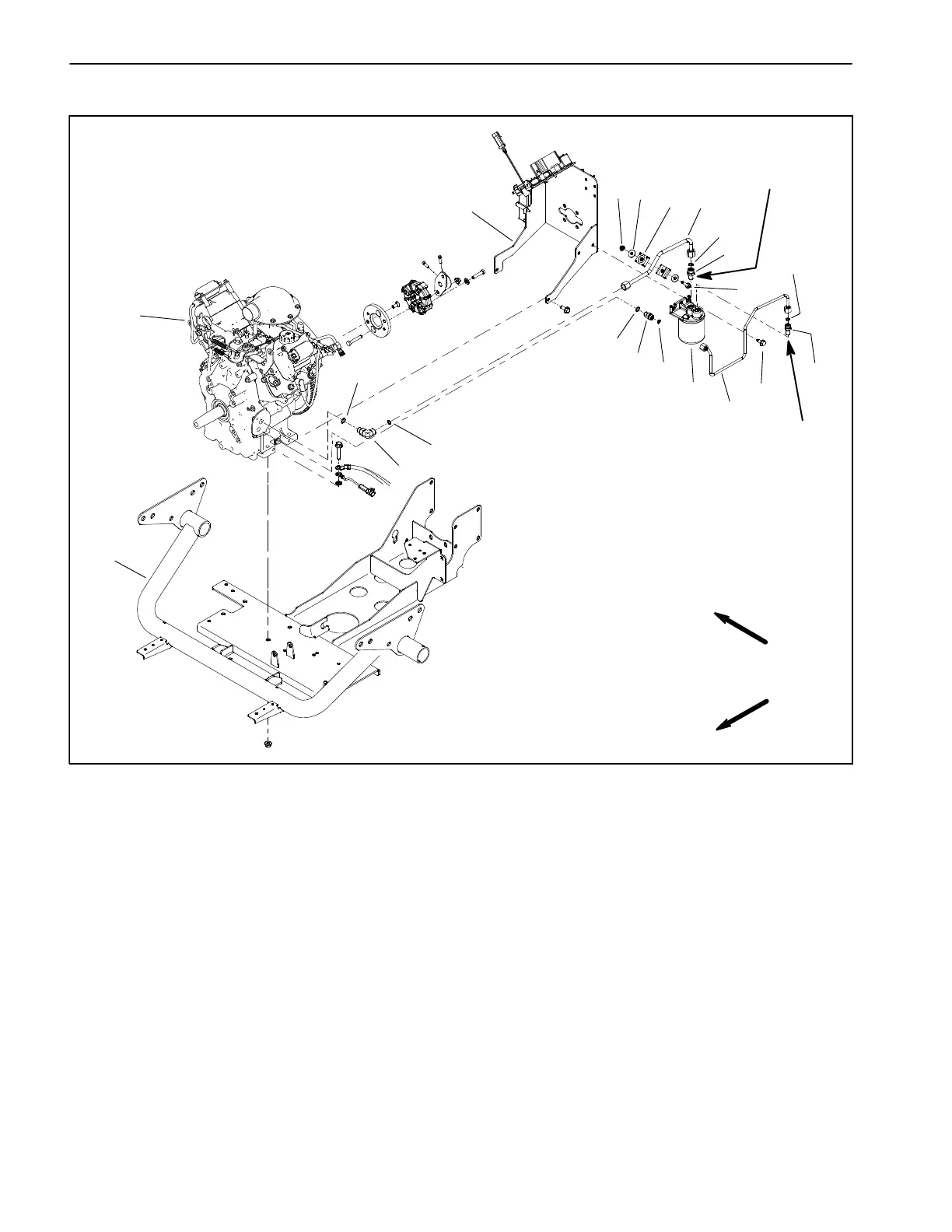

Figure 19
1. Engine
2. Sub−frame assembly
3. Pump mount
4. Oil filter assembly
5. Washer head screw (2)
6. Flange head screw
7. Tube clamp (2)
8. Washer (2)
9. Flange nut
10. Hydraulic fitting
11. O−ring
12. Hydraulic tube
13. O−ring
14. 90
o
hydraulic fitting
15. O−ring
16. Hydraulic fitting
17. O−ring
18. Hydraulic tube
19. O−ring
20. Hydraulic fitting
21. O−ring
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
Thread
Sealant
Thread
Sealant
