Toro Workman HDX Auto - Hydraulic Manifold (Vehicles with High Flow Hydraulics)

Workman HDX AutoPage 7 − 58Hydraulic System
Hydraulic Manifold (Vehicles with High Flow Hydraulics)
1. Hydraulic manifold assembly
2. Hydraulic hose
3. O−ring
4. Hydraulic tube
5. Hydraulic tube
6. Hydraulic hose
7. Cap screw (2)
8. Oil filter assembly
9. Tee fitting
10. O−ring
11. Engine mount assembly

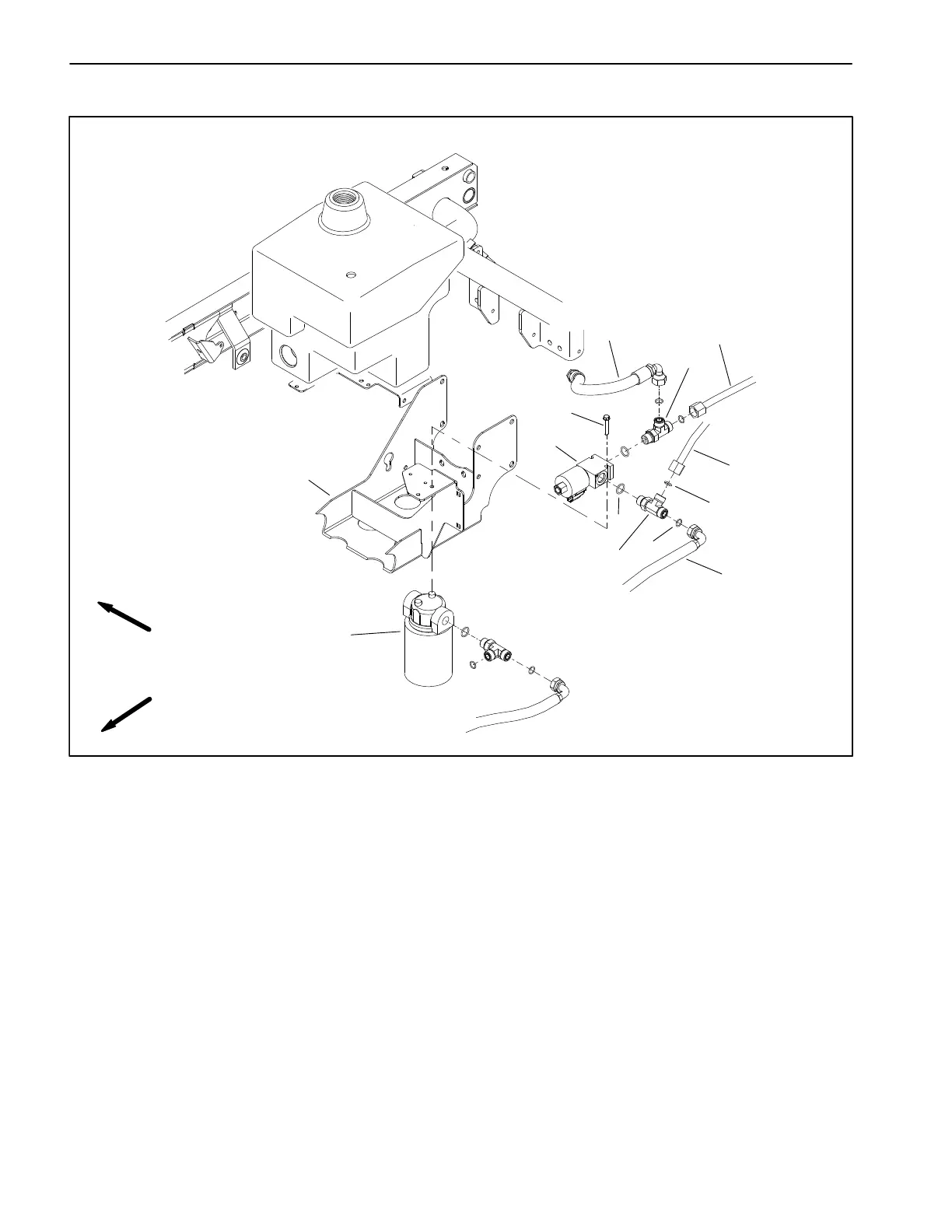

Figure 46
FRONT
RIGHT
2
3
6
8
9
10
1
5
7
4
3
9
11
Workman HDX automatic vehicles equipped with High
Flow Hydraulics use a hydraulic manifold mounted sole-
noid valve to engage the accessory hydraulic circuit.
The hydraulic manifold is attached to the vehicle above
the hydraulic oil filter assembly (Fig. 47).
