Toro Workman HDX Auto - Service and Repairs; Shift Cable

Workman HDX AutoPage 4 − 12Drive Train
Service and Repairs
Shift Cable
1. Transmission lever
2. Knob (2)
3. Speed range lever
4. Hydraulic lever
5. Knob
6. Cable clamp
7. Screw (2)
8. Clevis pin
9. Hairpin
10. Shift cable clevis
11. Shift cable
12. Lever support assembly

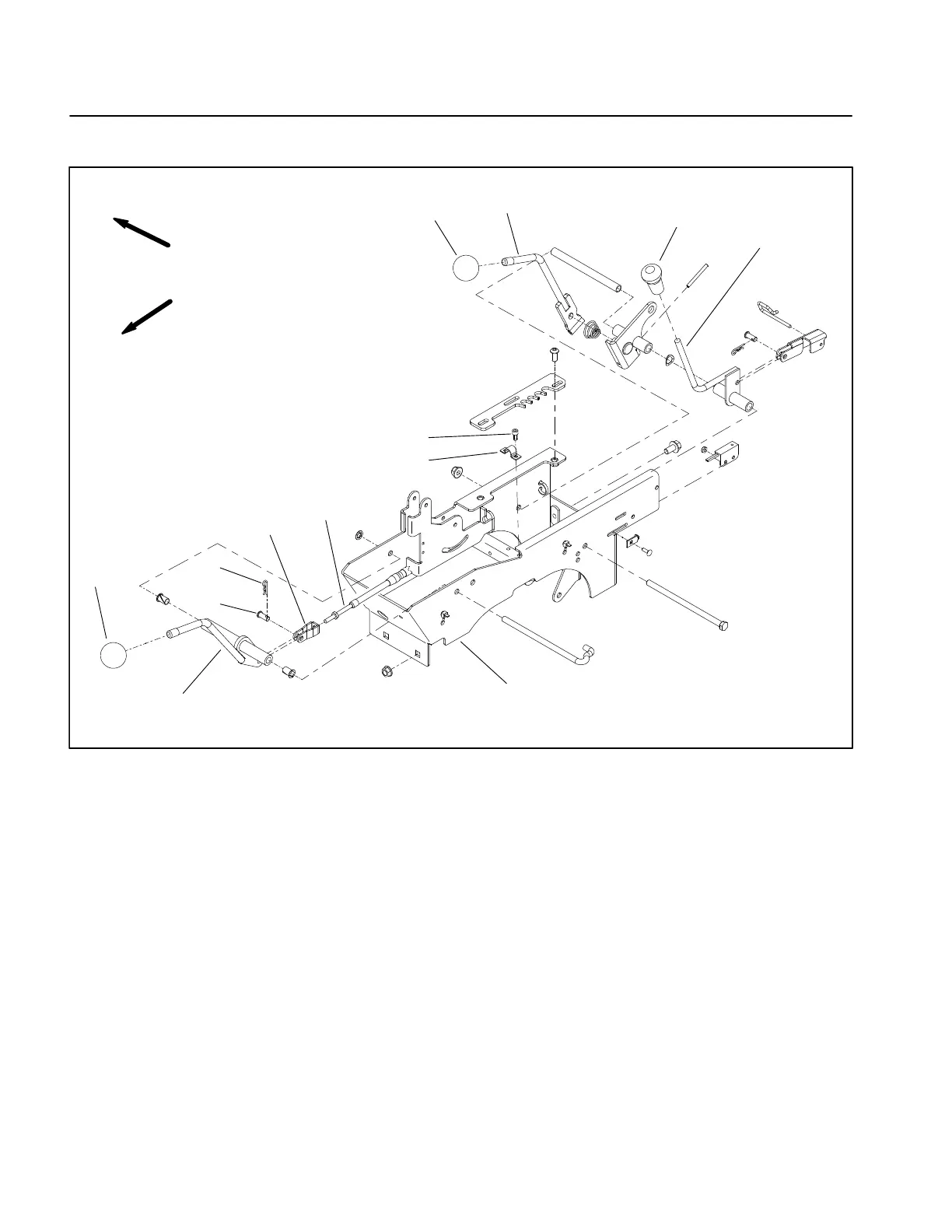

Figure 12
FRONT
RIGHT
2
3
6
8
9
10
11
1
5
7
12
4
2
Shift Cable Removal (Fig. 12)
1. Park vehicle on a level surface, raise and support ve-
hicle cargo bed (if installed), shut engine off and engage
the parking brake. Remove key from the ignition switch.
2. Remove knobs from control levers, then remove shift
and control plates from seat base (Fig. 13).
3. Remove two (2) screws (item 7) and cable clamp
(item 6) that secure shift cable to lever support.
4. Remove hair pin and clevis pin that secure shift cable
clevis (item 10) to transmission lever (item 1) in shift
plate opening of seat base.
5. Remove shift cable from transmission shift lever
(Fig. 14):
A. Remove hair pin and clevis pin that secure shift
cable to shift lever on transmission.
B. Loosen jam nuts (item 6 in Fig. 14) that secure
shift cable to shift cable mount bracket on engine/
transmission mount.
C. Disconnect cable from transmission shift lever.
