Toro Workman HDX Auto - Windshield Wiper Assembly (Machines with Operator Cab)

Workman HDX Auto Page 5 - 45 Chassis

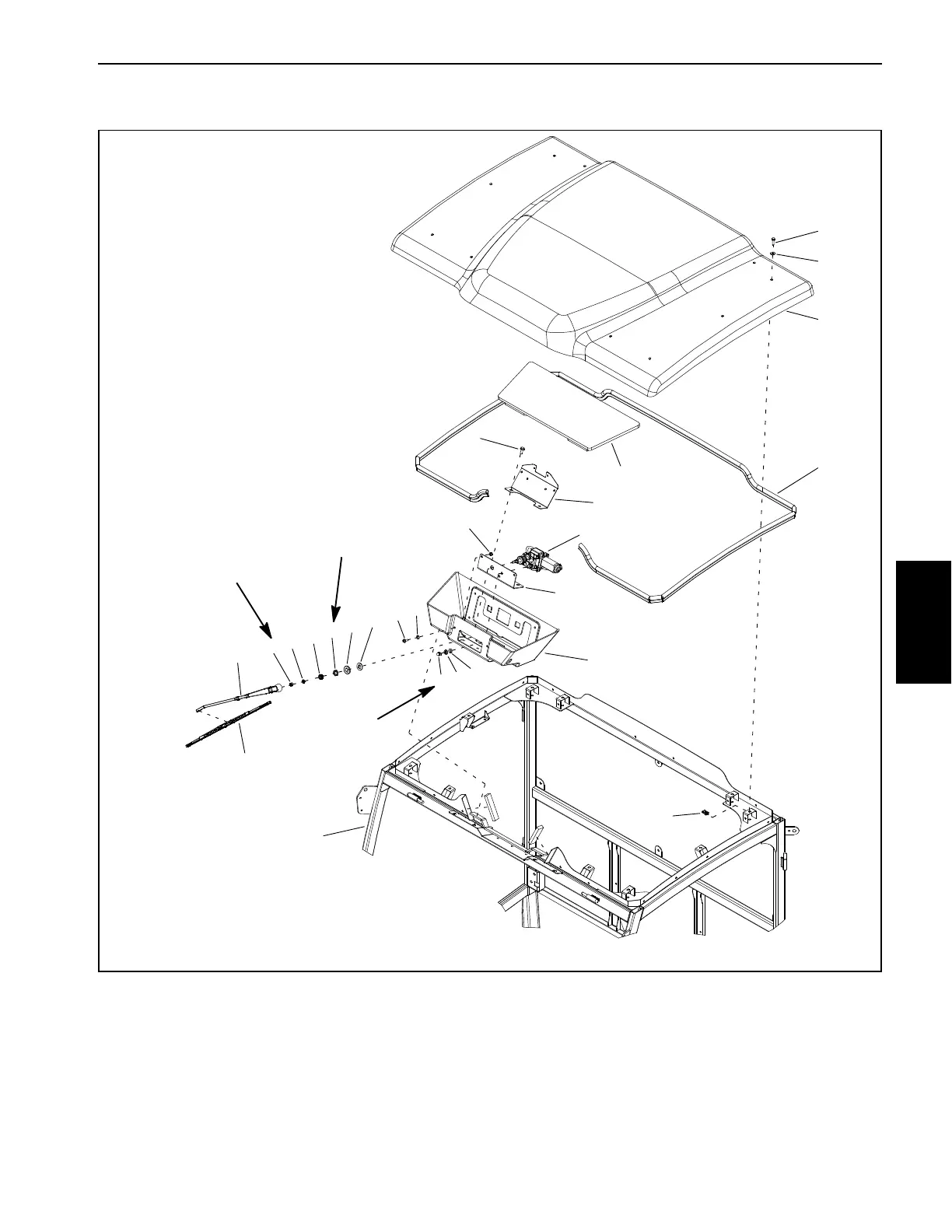

Windshield Wiper Assembly (Machines with Operator Cab)
1. Flange- head screw (10 each)
2. Sealing washer (10 each)
3. Cab roof
4. Bulb trim seal
5. Console foam
6. Fuse block mount
7. Wiper motor
8. Wiper motor bracket
9. Roof console
10. Clip (10 each)
11. Cab frame
12. Seal washer (2 each)
13. Cup cover (2 each)
14. Wiper acorn nut
15. Wiper blade
16. Wiper arm
17. Wiper stud nut (2 each)
18. Lock washer
19. Stud cover
20. Wiper nut (2 each)
21. Cup cover (2 each)
22. Seal washer (2 each)
23. Washer- head screw (2 each)
24. Flat washer (2 each)
25. Flange nut (2 each)
26. Washer- head screw (3 each)
Figure 38
1
2
3
4
5
26
6
7
10
16
17
18
19
20
22
23
24
13
12
9
14
25
8
21
15
11
5to6

Nm
(45to53in-
-lb)
20 to 22

Nm
(177 to 194 in-
-lb)
7to8

Nm
(62 to 70 in-
-lb)
Chassis
