Toro Workman HDX Auto - Primary and Secondary Clutches

Workman HDX AutoPage 4 − 26Drive Train
Primary and Secondary Clutches

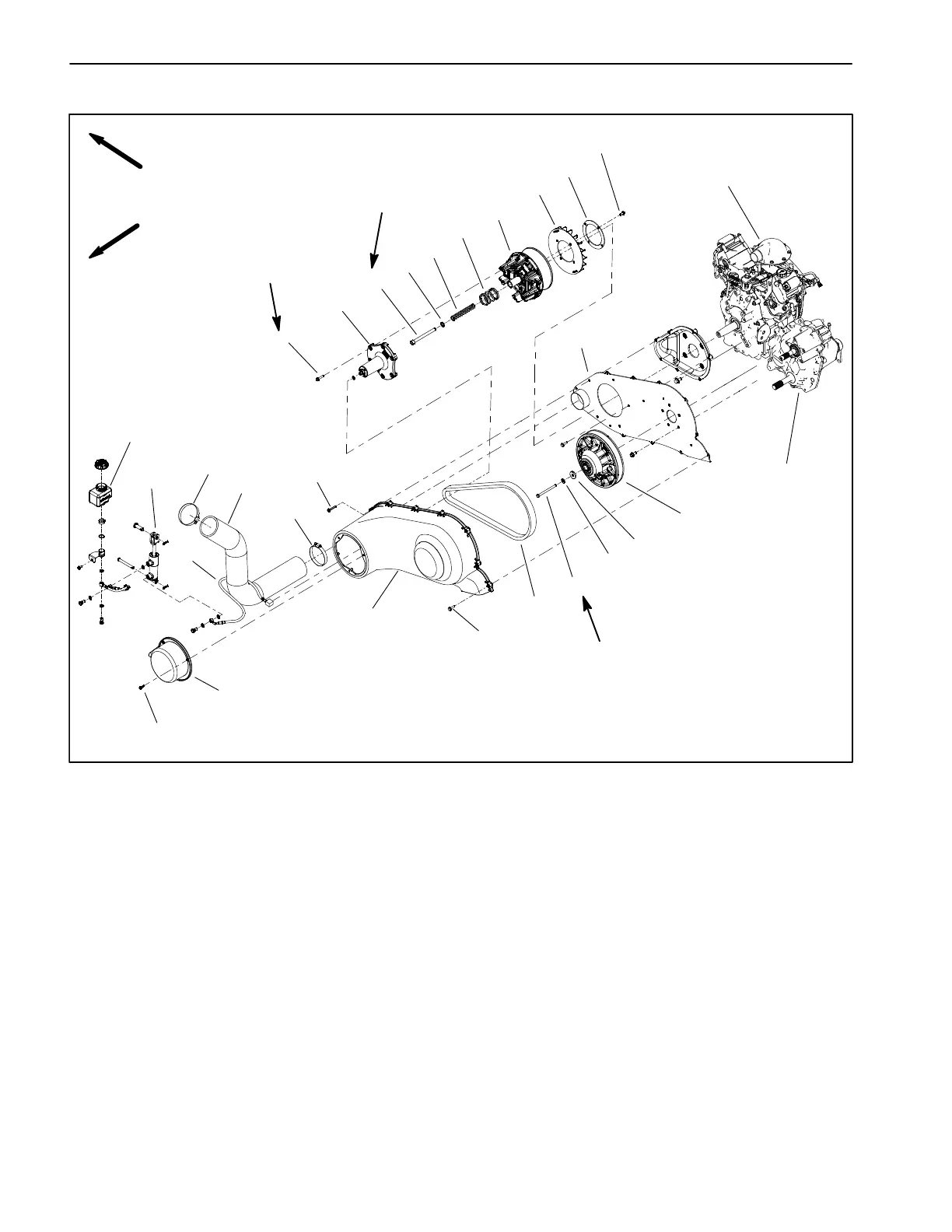

Figure 30
FRONT
RIGHT
1. Engine
2. Transmission
3. Primary clutch
4. Secondary clutch
5. CVT drive belt
6. Washer head screw (3)
7. Speed limiter cover
8. Flange head screw (6)
9. Speed limiter assembly
10. Compression spring
11. Compression spring
12. Speed control hose
13. CVT enclosure cover
14. Washer head screw (9)
15. Washer head screw (2)
16. Spanner plate
17. Socket head screw
18. Flat washer
19. CVT fan
20. Fan stiffener
21. Washer head screw (4)
22. Cap screw
23. Lock washer
24. Flat washer
25. CVT intake hose
26. Hose clamp (2)
27. Speed control cylinder
28. Speed control reservoir
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
18
4
17
19
20
105 to 120 in−lb
(11.9 to 13.5 N−m)
21
22
23
24
25
26
27
28
26
27 to 33 ft−lb
(37 to 44 N−m)
23 to 28 ft−lb
(32 to 37 N−m)
