Toro Workman HDX Auto - Transmission Service

Workman HDX AutoPage 4 − 52Drive Train
Transmission Service
1. Plug
2. Plug
3. Button head screw
4. Flange head screw (14)
5. Flange head screw (5)
6. Socket head screw (3)
7. Lock nut
8. Cup washer (2)
9. Washer (3)
10. Dowel pin (2)
11. Snap ring
12. Retaining ring (2)
13. Retaining ring (2)
14. Retaining ring (3)
15. Thrust washer (2)
16. Thrust washer
17. Needle bearing (2)
18. Ball bearing (5)
19. Needle bearing
20. Ball bearing (2)
21. Ball bearing
22. Compression spring
23. Compression spring (2)
24. Compression spring (2)
25. Spring washer
26. Front gear case
27. Rear gear case
28. Sector gear cover
29. Shift drum
30. Sector gear (31T)
31. Detent star
32. Sector gear (16T)
33. Detent pawl
34. Park plate
35. Front output shaft
36. Helical gear (88T)
37. Reverse shaft
38. Rear output shaft
39. Shift lever
40. Shift shaft rail
41. Vent tube
42. Park shift dog
43. Shift shaft
44. Shift collar
45. Shift fork (2)
46. Sprocket (48T)
47. Low gear (67T)
48. Engagement dog
49. Gear (53T)
50. Input shaft
51. O−ring
52. Spacer
53. Silent chain
54. Silent chain
55. Speed sensor
56. Rotary switch
57. Seal (2)
58. O−ring
59. Seal
60. O−ring

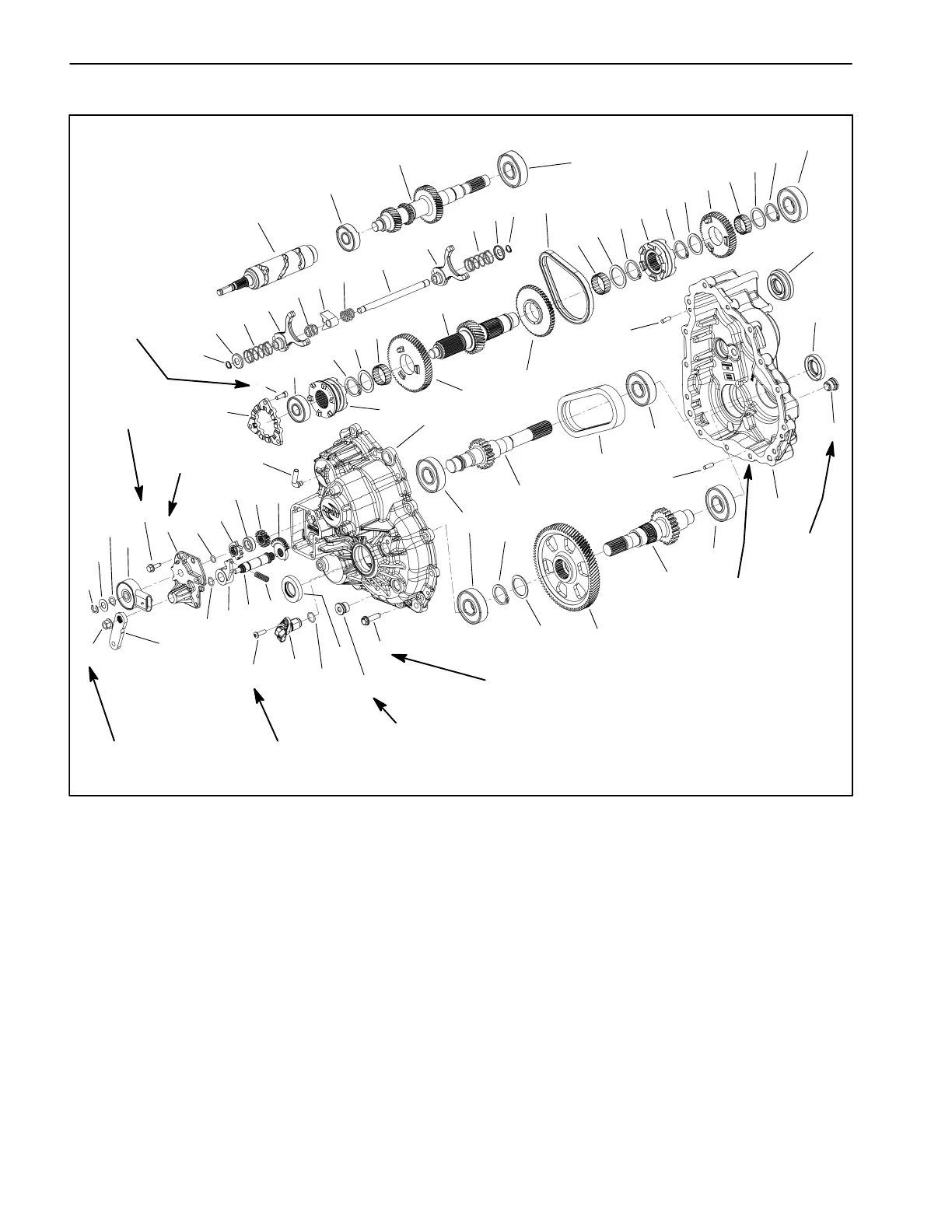

Figure 55
15 to 20 ft−lb
(21 to 27 N−m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
24
23
8
12
10
41
20
14
9
17
18
14
9
18
18
13
15
42
43
44
45
46
47
48
49
50
52
53
54
55
56
59
60
51
57
58
45
57
12 to 18 ft−lb
(17 to 24 N−m)
7 to 9 ft−lb
(10 to 12 N−m)
10 to 14 ft−lb
(14 to 18 N−m)
8 to 10 ft−lb
(11 to 13 N−m)
10 to 14 ft−lb
(14 to 18 N−m
)
9 to 12 ft−lb
(12 to 16 N−m)
Silicone
Sealant
Silicone
Sealant
