Gear Pump (Vehicles with Standard Hydraulics)

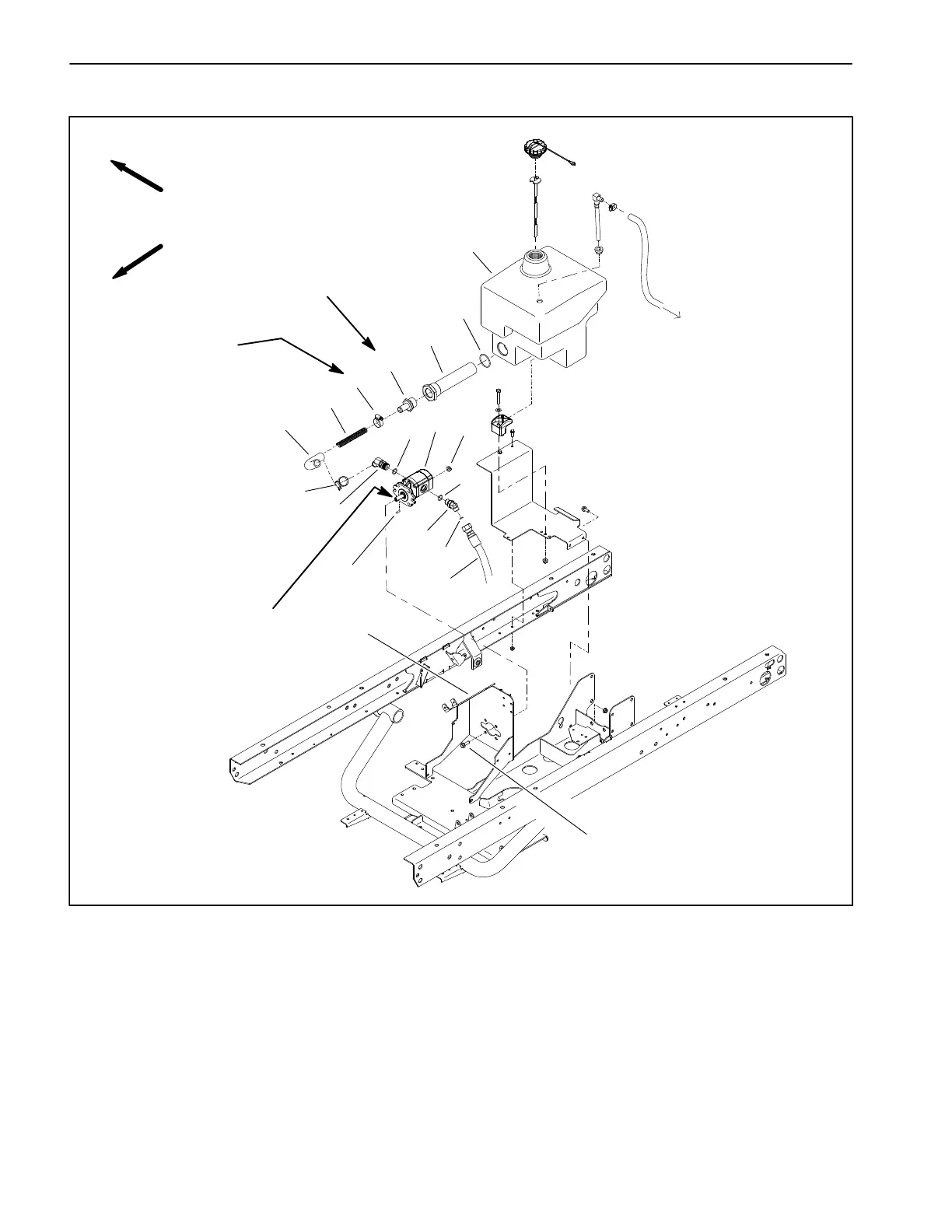

Figure 26
FRONT
RIGHT
1. Hydraulic reservoir
2. Hose clamp (2)
3. Suction hose
4. Spring
5. 45
o
hydraulic fitting
6. O−ring
7. Hydraulic hose
8. O−ring
9. 45
o
hydraulic fitting
10. O−ring
11. Gear pump
12. Flange nut (4)
13. Flange head screw (4)
14. Pump mount
15. Square key
16. Barbed fitting with O−ring
17. Strainer
18. O−ring
2
3
6
8
9
10
13
1
5
7
12
16
17
18
4
11
TO OIL
FILTER
90 to 110 ft−lb
(123 to 149 N−m)
55 to 60 ft−lb
(75 to 81 N−m)
2
14
15
Antiseize
Lubricant
NOTE: The standard gear pump used on Workman
HDX Auto vehicles is a single gear pump. If your vehicle
is equipped with High Flow Hydraulics, a second pump
section is added to the standard gear pump (see Gear
Pump (Vehicles with High Flow Hydraulics) in this sec-
tion).
