Toro Workman HDX Auto - Parking Brake Cable

Workman HDX AutoPage 5 − 22Chassis
Parking Brake Cable
1. Lever support assembly
2. Parking brake lever
3. Spacer (2)
4. Curved washer
5. Clevis pin
6. Lock nut (2)
7. Bellcrank (2)
8. Cap screw (2)
9. Hair pin
10. Flat washer
11. Hair pin
12. Clevis pin
13. Parking brake cable
14. Retaining ring
15. Speed control lever
16. Hydraulic lever
17. Shift lever

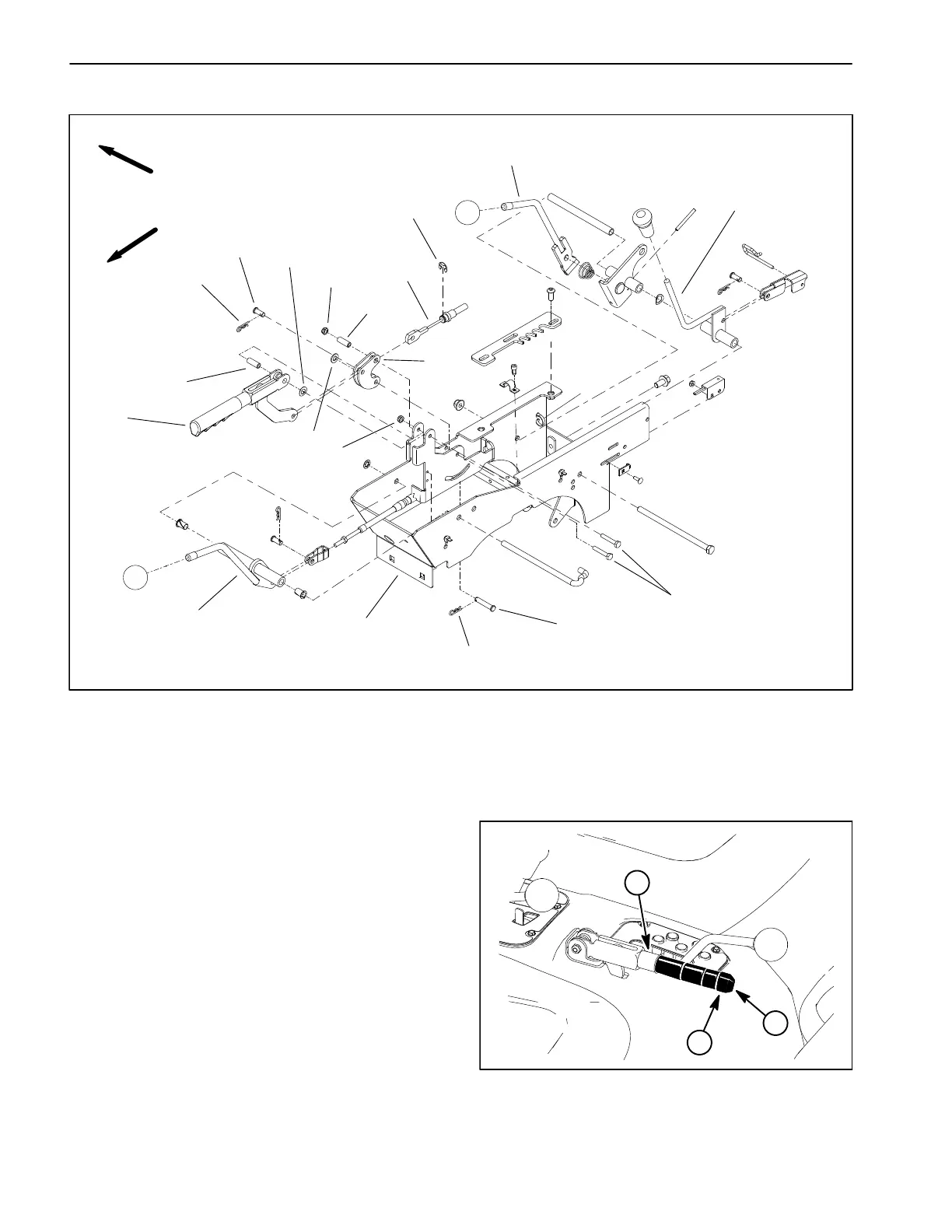

Figure 13
FRONT
RIGHT
15
17
16
13
12
14
11
10
3
6
8
9
5
1
4
2
7
6
3
Removal (Fig. 13)
1. Park vehicle on a level surface, raise and support ve-
hicle cargo bed (if installed), shut engine off and engage
the parking brake. Remove key from the ignition switch.
2. Remove brake lever handle from parking brake lever
and loosen set screw on parking brake lever knob
(Fig. 14). Turn knob on parking brake lever counter-
clockwise all the way to loosen brake cable adjustment.
3. Remove knobs from control levers and then remove
center console control plate to gain access to parking
brake cable in console.
Figure 14
1. Parking brake lever
2. Knob
3. Set screw
1
2
3
