Workman HDX Auto Page 5 − 23 Chassis
4. Disconnect parking brake cable from parking brake
caliper at rear differential (Fig. 15):
A. Remove retaining ring that secures parking brake
cable to engine mount.
B. Remove hair pin and clevis pin that secure park-
ing brake cable clevis to parking brake caliper lever.
C. Disconnect brake cable from caliper lever and re-
move cable from engine mount.
5. Remove retaining ring (item 14) that secures brake
cable to lever support assembly.
6. Remove hair pin (item 11), flat washer (item 10) and
clevis pin (item 12) that secure parking brake cable end
to brake lever and lever support.
7. Note routing of parking brake cable and location of
cable ties used to secure brake cable to vehicle frame.
Remove brake cable from vehicle.
Installation (Fig. 13)
1. Route new parking brake cable in same location as
before and secure with cable ties. Start from rear of ve-
hicle and work towards front.
2. Install brake cable end to brake equalizer on parking
brake lever. Secure brake cable to lever support assem-
bly with retaining ring.
3. Connect parking brake cable to parking brake caliper
at rear differential (Fig. 15 and 16).
A. Route parking brake cable through hole in engine
mount.
B. Connect parking brake cable clevis to parking
brake caliper lever and secure with clevis pin and
hair pin.
C. Secure parking brake cable to engine mount with
retaining ring.
4. Secure center console control plate to seat base with
removed screws. Torque screws a maximum of 12 in−lb
(1.3 N−m).
5. Install control lever knobs.
6. Remove bed support from cargo bed lift cylinder and
lower bed.
7. Adjust parking brake (see Parking Brake in the Ad-
justments section of this chapter).

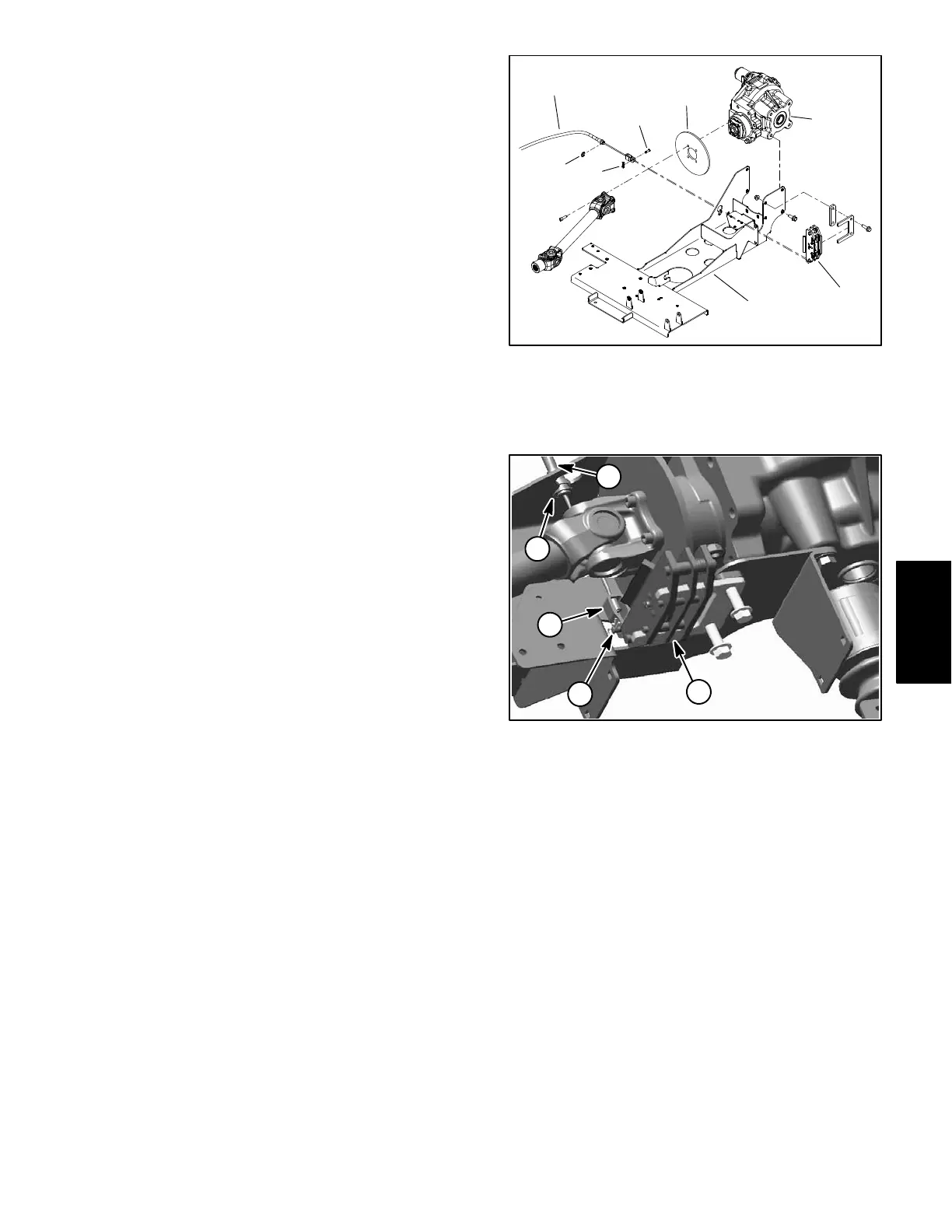

Figure 15
1. Rear differential
2. Parking brake rotor
3. Parking brake caliper
4. Parking brake cable
5. Hairpin
6. Clevis pin
7. Retaining ring
8. Engine mount
2
3
6
1
5
4
7
8
Figure 16
1. Parking brake cable
2. Retaining ring
3. Brake cable clevis
4. Clevis pin/hairpin
5. Parking brake caliper
5
1
3
4
2
Chassis
