Toro Workman HDX Auto - Rear CV (Constant Velocity) Axles

Workman HDX AutoPage 4 − 32Drive Train

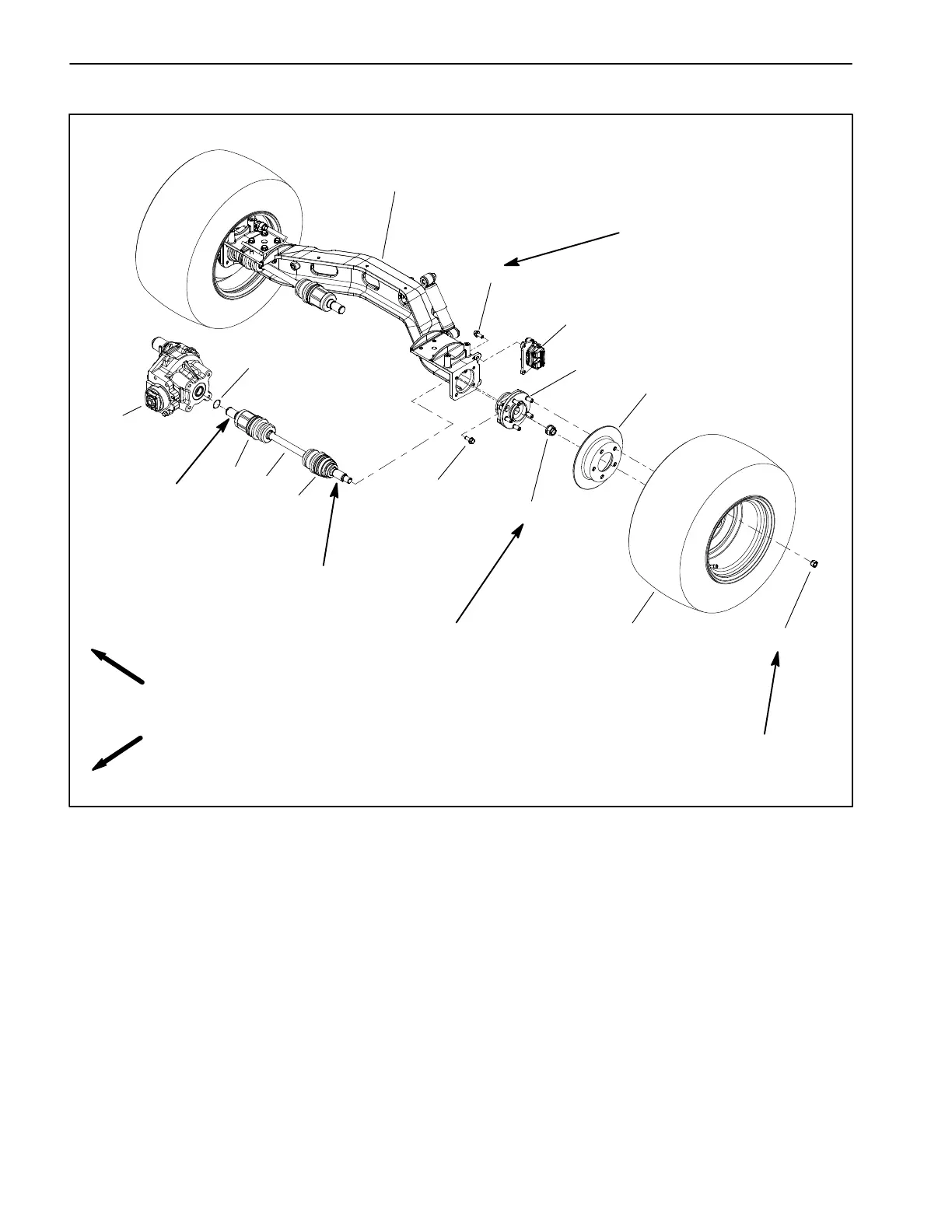

Rear CV (Constant Velocity) Axles
1. Lug nut (5 per wheel)
2. Rear wheel assembly (2)
3. Brake rotor (2)
4. Brake caliper (2)
5. Flange head screw (2 per caliper)
6. Spindle nut(2)
7. Flange head screw (4 per hub)
8. Wheel bearing hub (2)
9. Rear axle
10. CV axle assembly (2)
11. O−ring (2)
12. Rear differential
13. Inboard boot (2)
14. Outboard boot (2)
Figure 38
FRONT
RIGHT
5
3
8
9
2
4
80 to 90 ft−lb
(109 to 122 N−m)
35 to 40 ft−lb
(48 to 55 N−m)
6
12
1
7
10
11
170 to 180 ft−lb
(231 to 244 N−m)
Antiseize
Lubricant
Antiseize
Lubricant
13
14
