Workman HDX AutoPage 5 − 40Chassis
Steering Wheel
Removal (Fig. 32)
1. Park vehicle on a level surface, shut engine off, re-
move key from ignition switch and apply parking brake.
2. Carefully remove steering wheel cover from steering
wheel.
3. Remove hex nut and flat washer that secure steering
wheel to steering control valve.
4. Pull steering wheel from control valve. If necessary,
use suitable puller to remove steering wheel.
Installation (Fig. 32)
1. Apply antiseize lubricant to taper and spline on steer-
ing control valve shaft.
2. Slide steering wheel onto control valve shaft.
3. Secure steering wheel with flat washer and hex nut.
Torque hex nut from 20 to 25 ft−lb (28 to 33 N−m).
4. Install steering wheel cover.

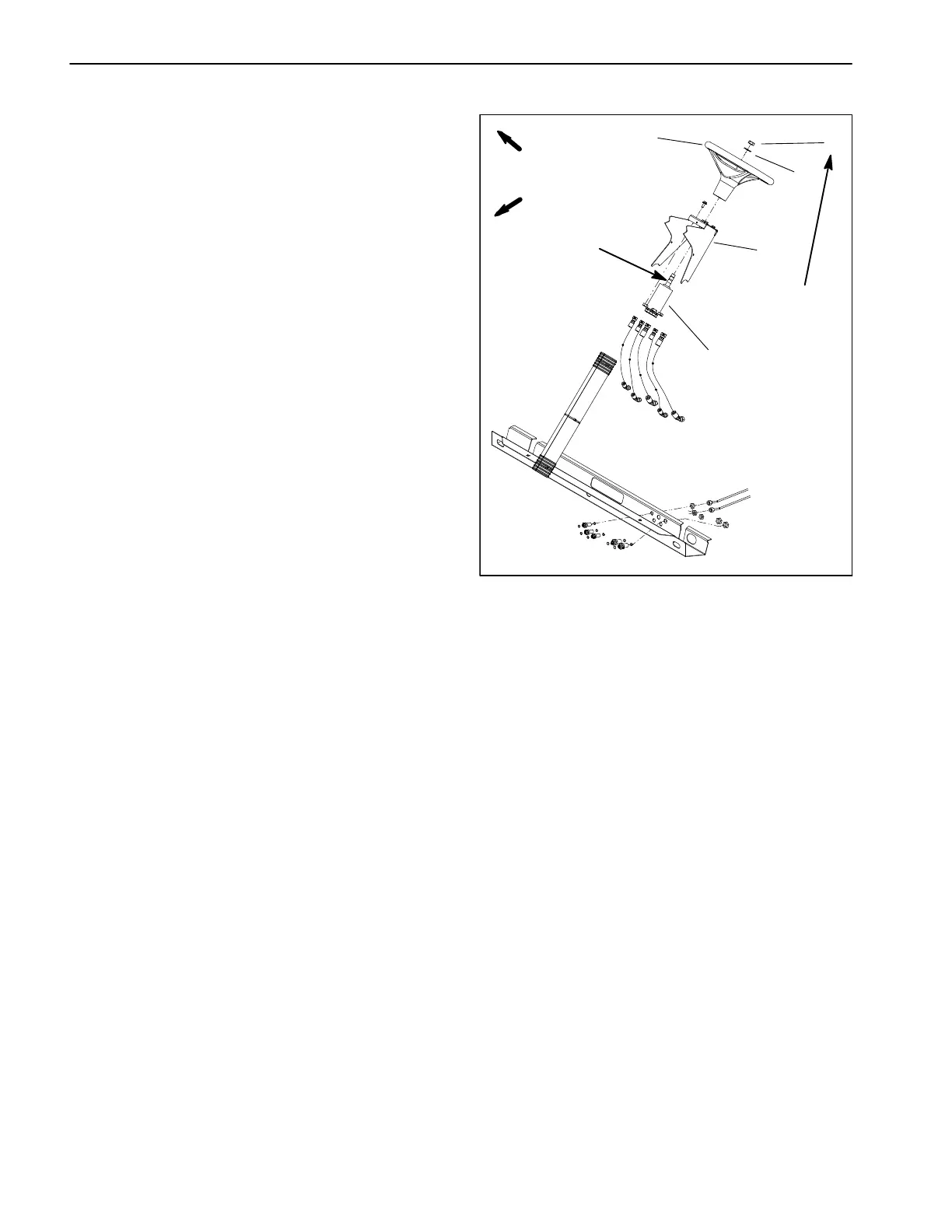

Figure 32
1. Steering wheel
2. Flat washer
3. Hex nut
4. Steering control valve
5. Frame
2
4
1
3
5
Antiseize
Lubricant
20 to 25 ft−lb
(28 to 33 N−m)
FRONT
RIGHT
