Workman HDX Auto Page 6 − 11 Electrical System
Fuses

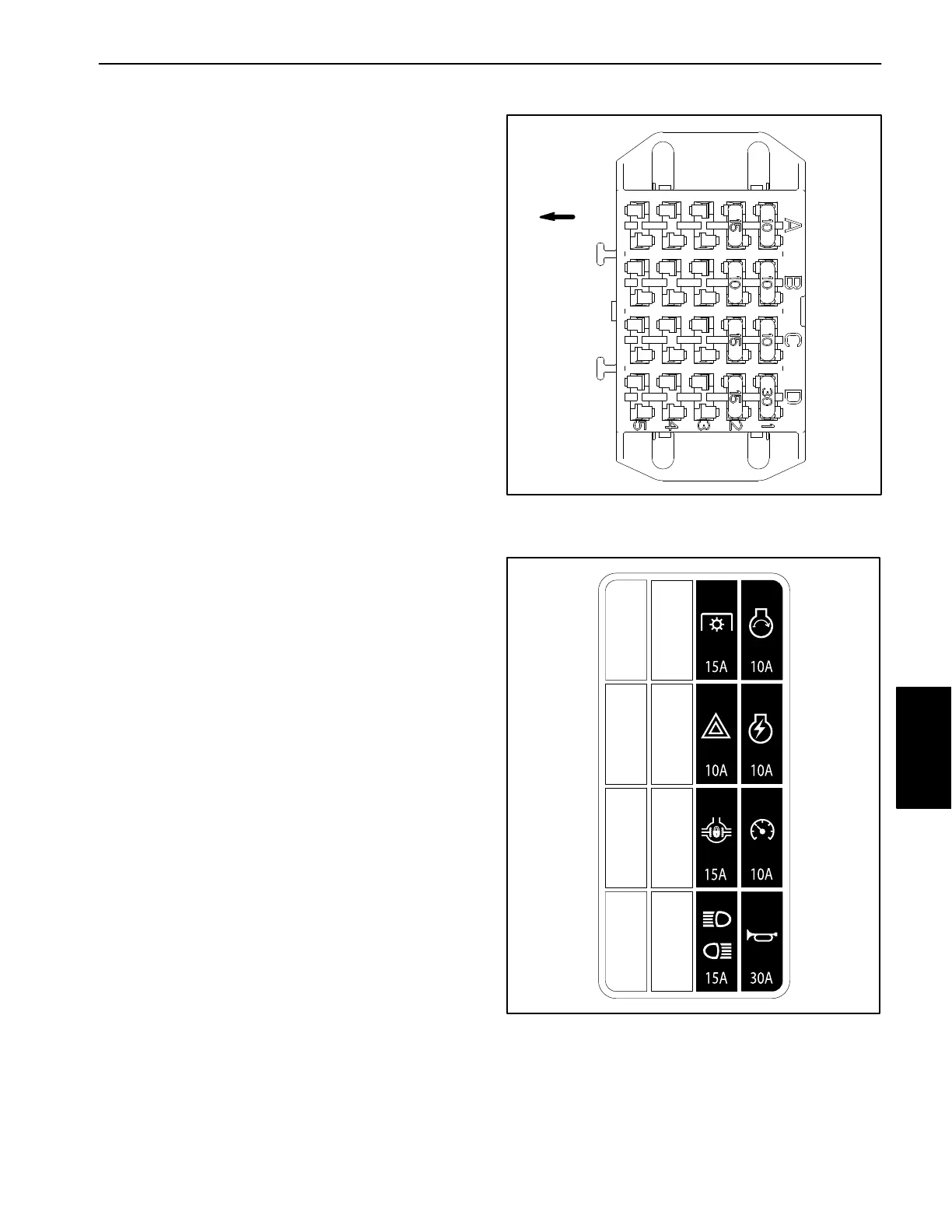

The fuse block is located below the center of the dash
panel (Fig. 9).
Identification and Function (Fig. 10)
Top Row Position A2 (15 amp): Protects power point cir-
cuit.
Top Row Position A1 (10 amp): Protects engine start cir-
cuit.
Second Row Position B2 (10 amp): Protects power sup-
ply circuit for hazard lights (if equipped).
Second Row position B1 (10 amp): Protects power sup-
ply circuit for ignition switch ON.
Third Row Position C2 (15 amp): Protects power supply
circuit for differential lock.
Third Row Position C1 (10 amp): Protects power supply
circuit for speedometer and engine tachometer.
Fourth Row Position D2 (15 amp): Protects power sup-
ply circuit for headlights and rear lights.
Fourth Row Position D1 (30 amp): Protects power sup-
ply circuit for horn.
NOTE: Fuse positions A3, B3, C3 and D3 may be used
for accessory kits on your Workman.
A 30 amp fuse is located in an in−line fuse holder near
the cooling fan. This fuse protects the power supply for
the radiator fan.
A 15 amp fuse is located in an in−line fuse holder near
the engine starter motor. This fuse protects the power
supply for the engine starter solenoid circuit.
Fuse Testing
1. Make sure that ignition switch is OFF and key is re-
moved from switch.
2. Remove fuse from fuse block for testing.
3. Fuse should have continuity across the terminals.
Figure 9
FRONT
Figure 10
