Workman HDX Auto Page 7 − 15 Hydraulic System

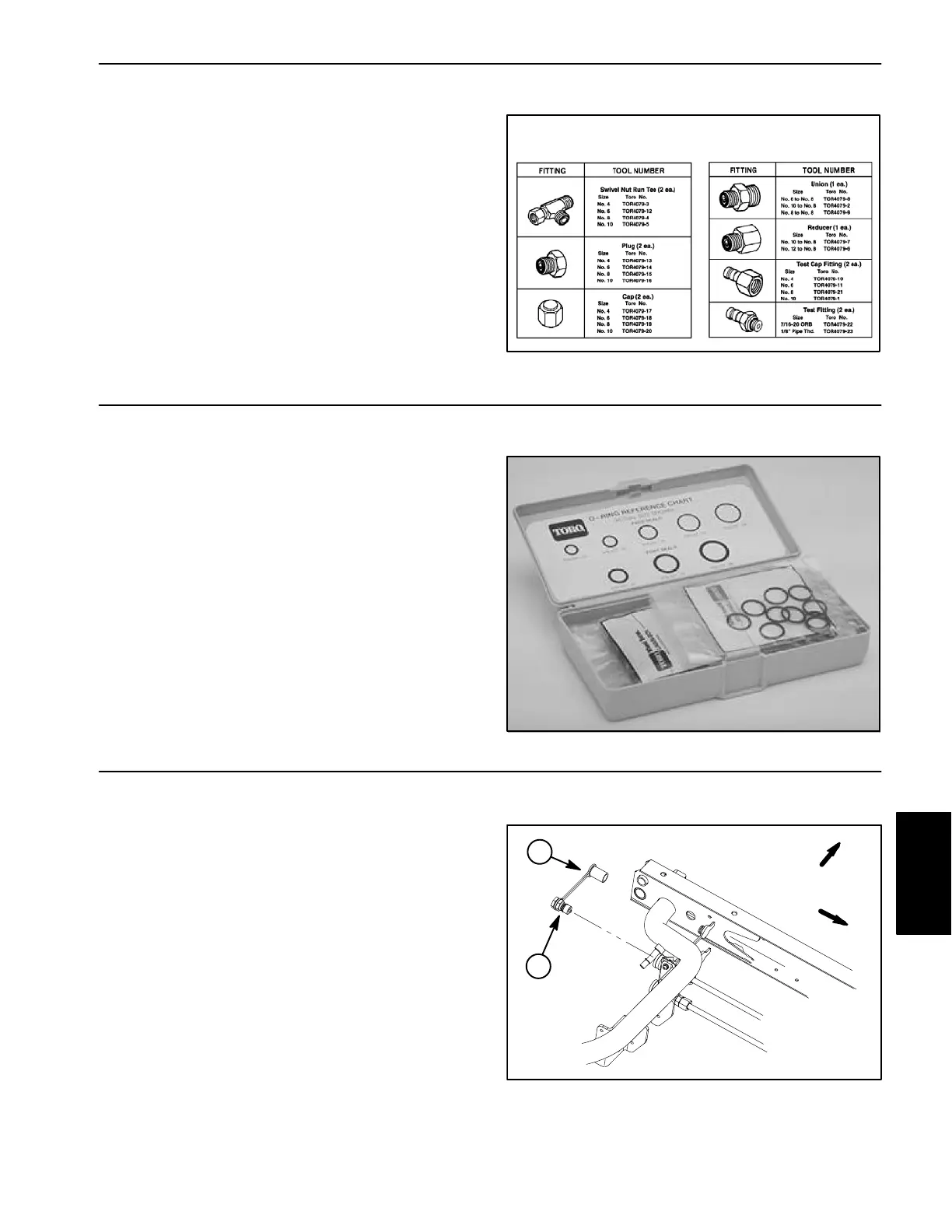

Hydraulic Test Fitting Kit
This kit includes a variety of O−ring Face Seal fittings to
enable you to connect test gauges into the system.
The kit includes: tee’s, unions, reducers, plugs, caps and
male test fittings.
Toro Part Number: TOR4079
Figure 14
TORO TEST FITTING KIT
O−ring Kit
The kit includes O−rings in a variety of sizes for face seal
and port seal hydraulic connections. It is recommended
that O−rings be replaced whenever a hydraulic connec-
tion is loosened.
Toro Part Number: 117−2727
Figure 15
Male Coupler (For High Flow Hydraulics)
Male coupler that fits into the High Flow Hydraulics fe-
male coupler. Male coupler can be used when testing hy-
draulic components of the High Flow Hydraulics system.
Two (2) couplers are required for testing.
Toro Part Number: 105−4170
NOTE: Dust cap (part number 105−7963) for male cou-
pler is available separately.
Figure 16
1
FRONT
LEFT
1. Male coupler 2. Dust cap
2
Hydraulic
System
