272
VLAN tagged:
Indicates the VLAN type the specified application type is using,
'tagged' or 'untagged'.
ID:
Displays the application (eg. Voice VLAN) VLAN identifier (VID) for
the port.
2 Priority:
Displays the Layer
2 priority to be used for the specified
application type.
Media Policy DSCP:
Displays the DSCP value to be used to provide Diffserv node
behavior for the specified application type as defined in IETF RFC
2474.
15.4.4 Neighbor Info
On this page you can get the LLDP-MED information of the neighbors.
Choose the menu LLDP→LLDP-MED→Neighbor Info to load the following page.

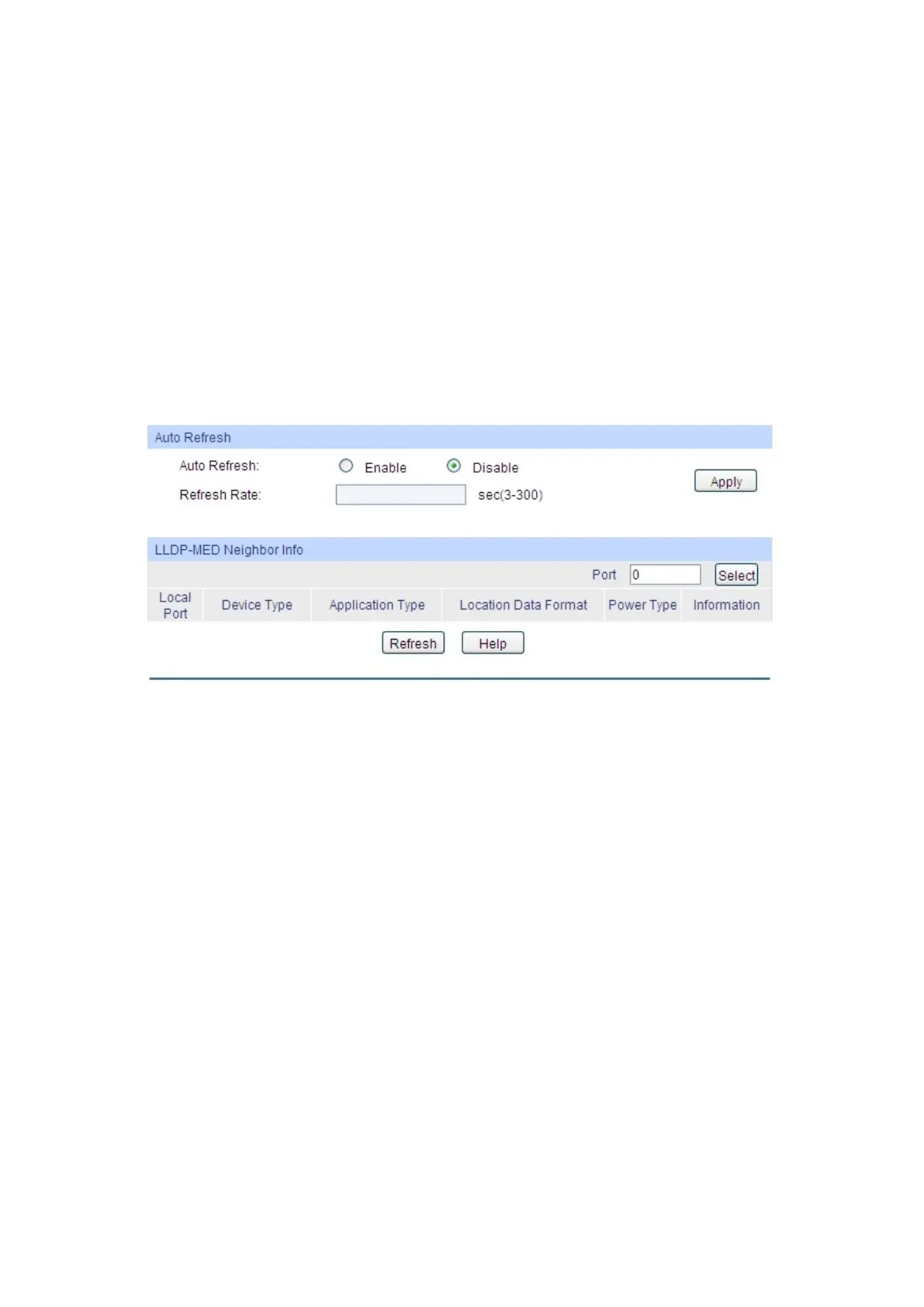

Figure 15-10 LLDP-MED Neighbor Information
The following entries are displayed on this screen
:
Auto Refresh
Auto Refresh: Enable/Disable the auto refresh function.
Refresh Rate: Specify the auto refresh rate.
LLDP-MED Neighbor Info
Select the desired port to display LLDP-MED information of neighbors of the corresponding
port:
Device Type: Displays the device type of the neighbor.
Application Type:
Displays the application type of the neighbor. Application Type
indicates the primary function of the applications defined for the
network policy.
Local Data Format: Displays the location identification of the neighbor.
Power Type: Displays the power type of the neighbor device, either Power
Sourcing Entity (PSE) or Powered Device (PD).
