72
received port. Thus, the packet is assigned automatically to the corresponding VLAN for
transmission.
2. When receiving tagged packet, the switch will process it basing on the 802.1Q VLAN. If the
received port is the member of the VLAN to which the tagged packet belongs, the packet will
be forwarded normally. Otherwise, the packet will be discarded.
3. If the MAC address of a Host is classified into 802.1Q VLAN, please set its connected port of
switch to be a member of this 802.1Q VLAN so as to ensure the packets forwarded normally.
6.2.1 MAC VLAN
On this page, you can create MAC VLAN and view the current MAC VLANs in the table.
Choose the menu VLAN→MAC VLAN to load the following page.

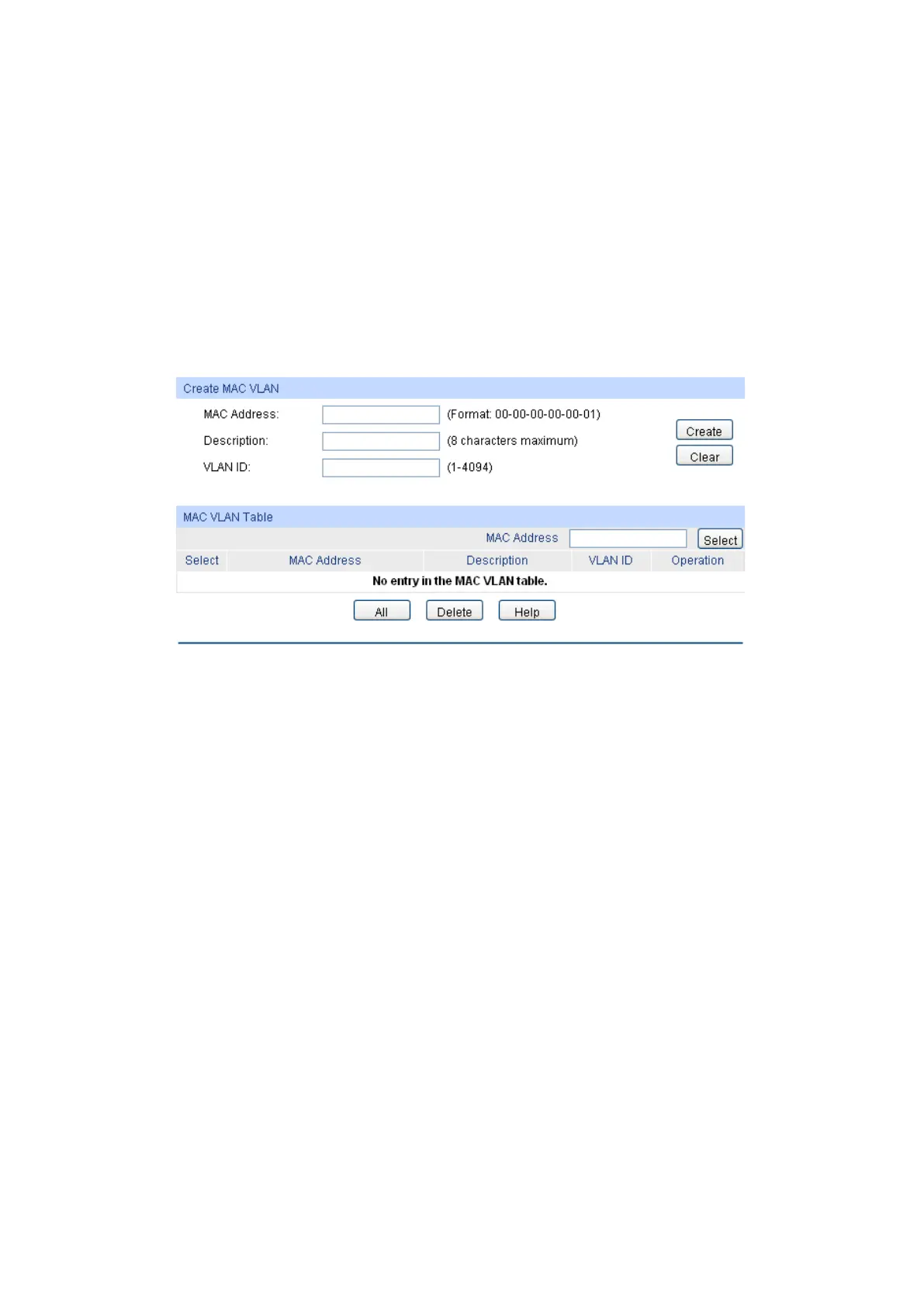

Figure 6-7 Create and View MAC VLAN
The following entries are displayed on this screen:
VLAN Table
Enter the MAC address.
Give a description to the MAC address for identification.
Enter the ID number of the MAC VLAN. This VLAN should be one
of the 802.1Q VLANs the ingress port belongs to.
MAC VLAN Table
Click the Select button to quick-select the corresponding entry
based on the MAC address you entered.
Select the desired entry. It is multi-optional.
Displays the MAC address.
Displays the user-defined description of the MAC address.
Displays the corresponding VLAN ID of the MAC address.
Click the Edit button to modify the settings of the entry. And click
the Modify button to apply your settings.
