TP-Link JetStream L2 User Manual

127
Variable Request
OAMPDUs:
Displays the number of variable request OAMPDUs that have
been transmitted or received on the port.
Variable Response
OAMPDUs:
Displays the number of variable response OAMPDUs that have
been transmitted or received on the port.
Loopback Control
OAMPDUs:
Displays the number of loopback control OAMPDUs that have
been transmitted or received on the port.
Organization
Specific OAMPDUs:
Displays the number of organization specific OAMPDUs that
have been transmitted or received on the port.
Unsupported
OAMPDUs:
Displays the number of unsupported OAMPDUs that have been
transmitted or received on the port.
Frames Lost Due To
OAM:
Displays the number of frames that would otherwise be
transmitted by the OAM sublayer, but did not due to an internal
OAM sublayer transmit error.
8.5.2 Event Log
On this page, you can view the detailed Ethernet OAM event log information of a specific port. The
device will recount the numbers every time you click the clear button or the device is rebooted.
Choose the menu Ethernet OAM→Statistics→Event Log to load the following page.

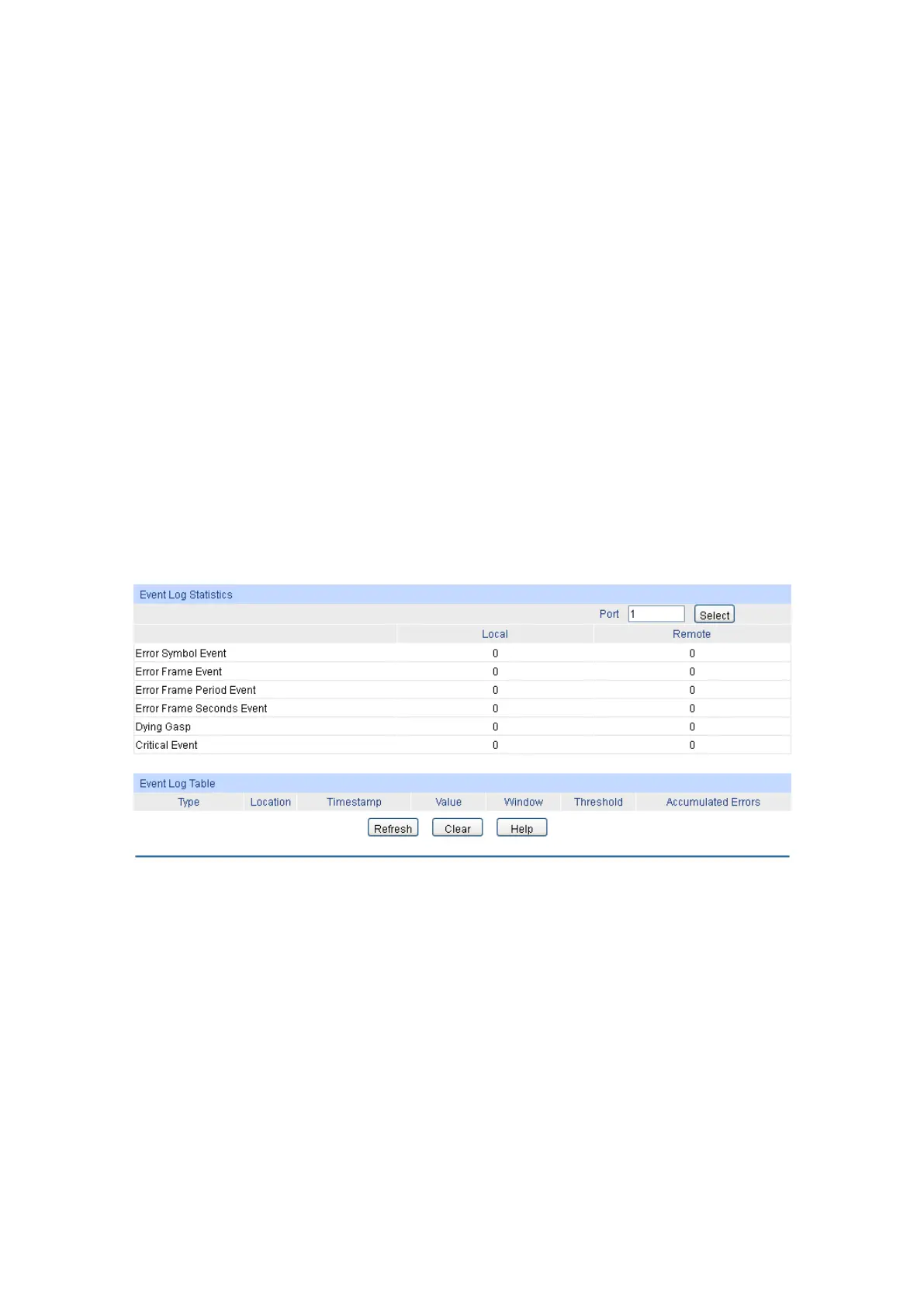

Figure 8-10 Event Log
The following entries are displayed on this screen:

Event Log Statistics
Port Select: Click the Select button to quick-select the corr
esponding port
based on the port number you entered.
Local: Displays the number of link events that have occurred on the
local link.
Remote: Displays the number of link events that have occurred on the
remote link.
Error Symbol Event:
Displays the number of error symbol period link events that have
occurred on the local link or remote link.
