126
Remote Loopback: To start or stop the remote loopback.
8.5 Statistics
You can view the statistics about the detailed Ethernet OAM traffic information and event log
information of a specific port here.
8.5.1 Statistics
On this page, you can view the detailed Ethernet OAM traffic information of a specific port. The
device will recount the numbers every time you click the clear button or the device is rebooted.
Choose the menu Ethernet OAM→Statistics→Statistics to load the following page.

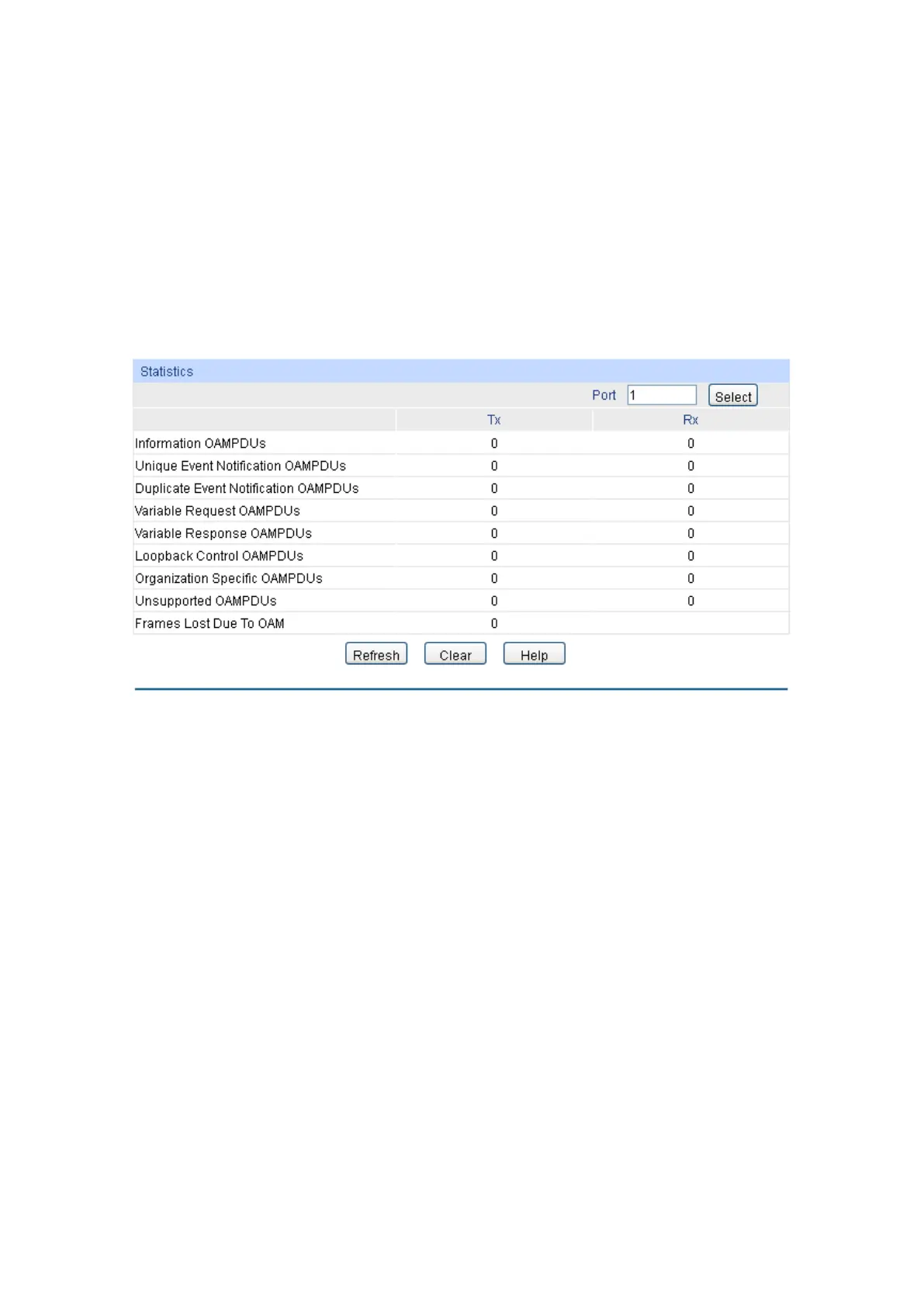

Figure 8-9 Statistics
The following entries are displayed on this screen:
Statistics
Port Select: Click the Select button to quick-
select the corresponding port
based on the port number you entered.
Tx: Displays the number of OAMPDUs that have been transmitted
on the port.
Rx: Displays the number of OAMPDUs that have been received on
the port.
Information
OAMPDUs:
Displays the number of information OAMPDUs that have been
transmitted or received on the port.
Notification
OAMPDUs:
Displays the number of unique event notification OAMPDUs that
have been transmitted or received on the port.
Notification
OAMPDUs:
Displays the number of duplicate event notification OAMPDUs
that have been transmitted or received on the port.
