123
Variable Request: Displays whether the remote client supports variable request.
PDU Revision: Displays the TLV revision of the OAMPDU.
Vendor Information: Displays the vender information of the remote client.
8.2 Link Monitoring
On this page, you can configure the parameters about OAM link events, including the threshold
and the detection period. Also, you can choose whether to notify the link event.
Choose the menu Ethernet OAMLink MonitoringLink Monitoring to load the following
page.

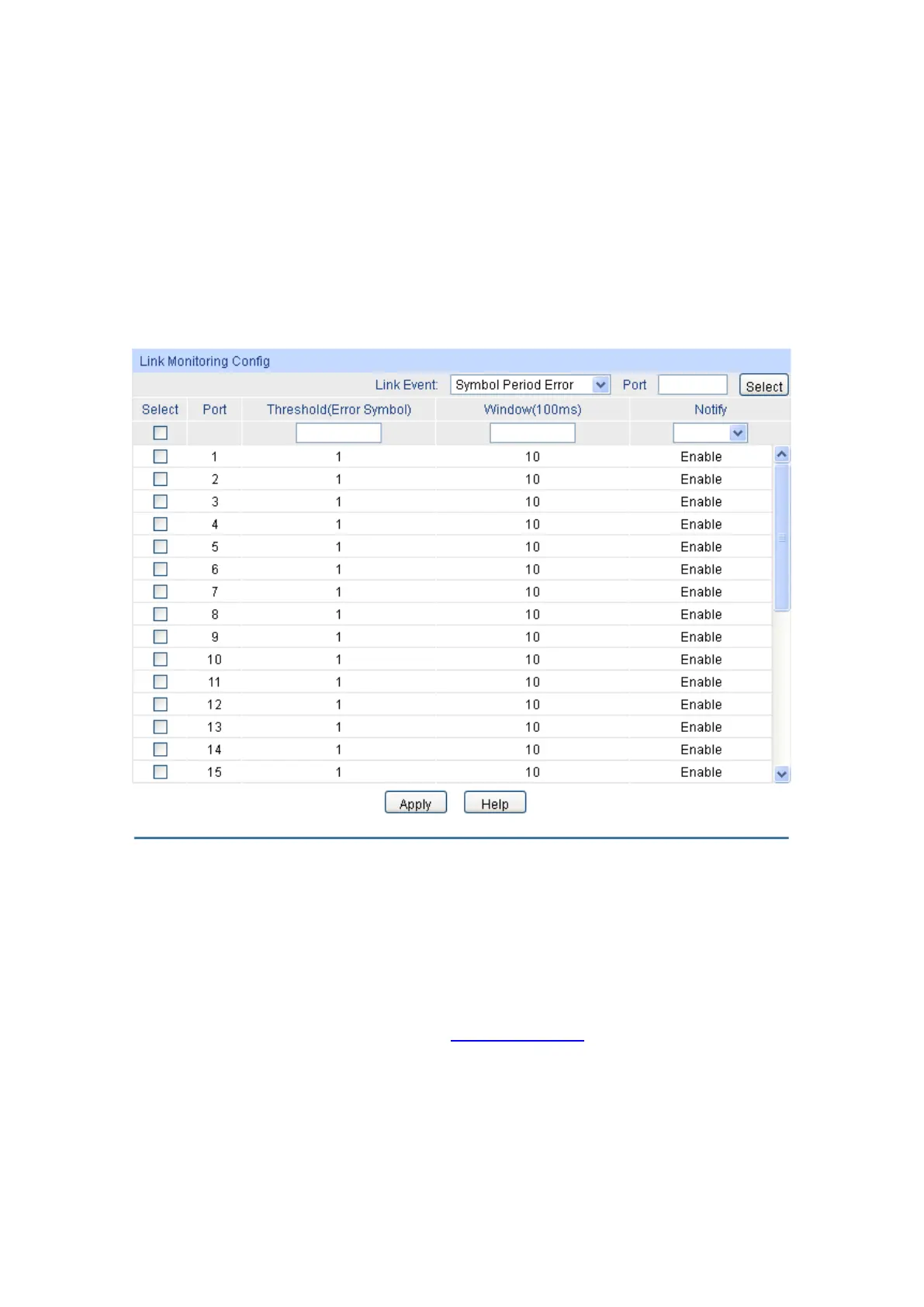

Figure 8-6 Link Monitoring
The following entries are displayed on this screen:
Link Monitoring Config
Link Event: Select one type of the link events to configure. Link events
include Symbol Period Error, Frame Error, Frame Period Error,
and Frame Seconds Error. For more details about link events,
please refer to OAM Link Events.
Port Select: Click the Select button to quick-
select the corresponding port
based on the port number you entered.
Select: Select the desired port for configuration. It is multi-optional.
