254
14.3.1 History Control
On this page, you can configure the History Group for RMON.
Choose the menu SNMPRMONHistory Control to load the following page.

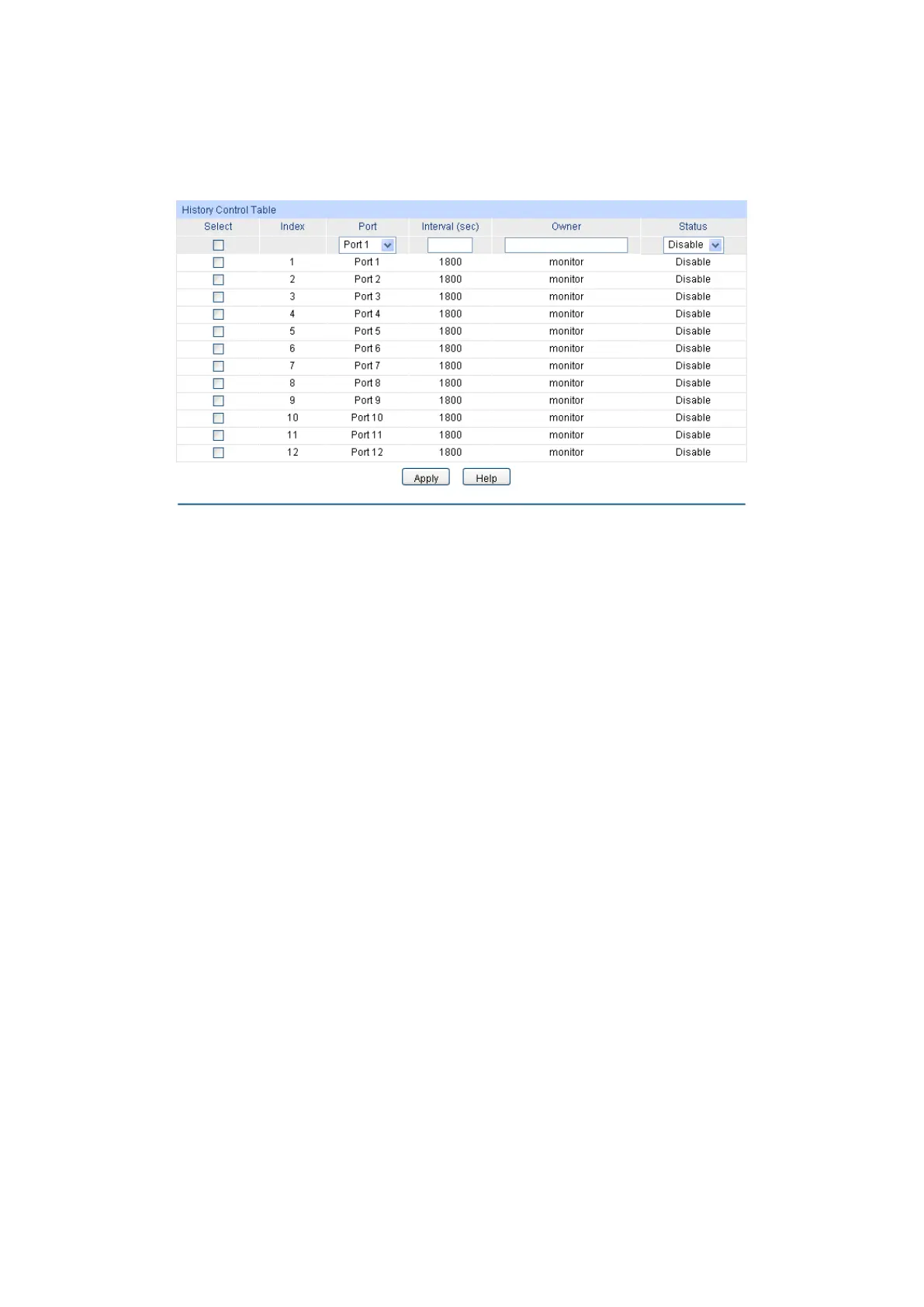

Figure 14-10 History Control
The following entries are displayed on this screen:
History Control Table
Select:
Select the desired entry for configuration.
Index
: Displays the index number of the entry.
Port:
Specify the port from which the history samples were taken.
Interval:
Specify the interval to take samplings from the port.
Owner:
Enter the name of the device or user that defined the entry.
Status:
Enable/Disable the corresponding sampling entry.
