169
10.3.1 IPv4 Multicast Table
On this page you can view the information of the multicast groups already on the switch. Multicast
IP addresses range from 224.0.0.0 to 239.255.255.255. The range for receivers to join is from
224.0.1.0 to 239.255.255.255.
Choose the menu Multicast→Multicast Table→IPv4 Multicast Table to load the following page.

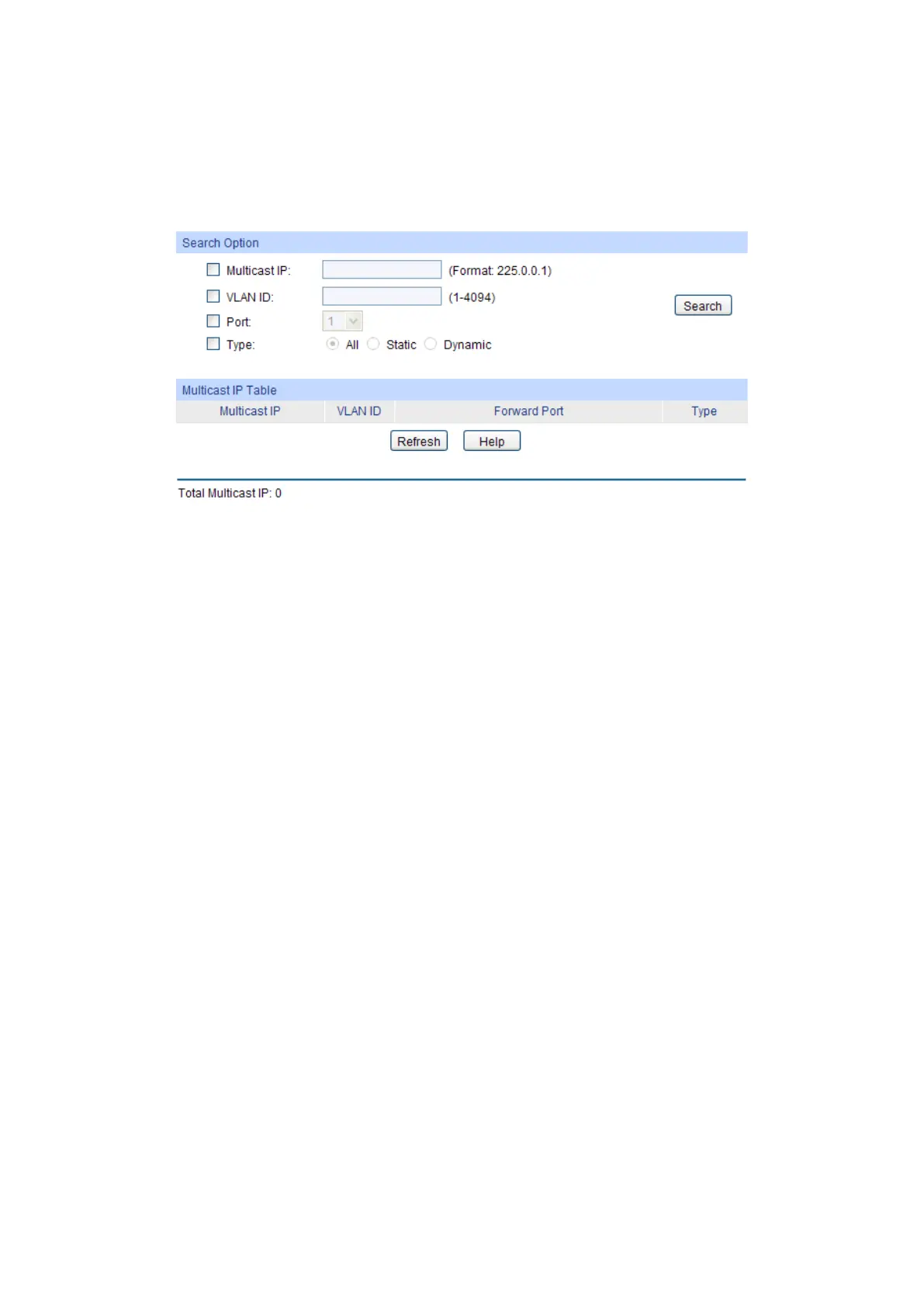

Figure 10-21 IPv4 Multicast Table
The following entries are displayed on this screen:
Search Option
Multicast IP: Enter the multicast IP address the desired entry must carry.
VLAN ID:
Enter the VLAN ID the desired entry must carry.
Port:
Select the port number the desired entry must carry.
Type:
Select the type the desired entry must carry.
All: Displays all multicast IP entries.
Static: Displays all static multicast IP entries.
Dynamic: Displays all dynamic multicast IP entries.
Multicast IP Table
Multicast IP: Displays multicast IP address.
VLAN ID: Displays the VLAN ID of the multicast group.
Forward Port: Displays the forward port of the multicast group.
Type: Displays the type of the multicast IP.
10.3.2 IPv6 Multicast Table
This page displays the IPv6 multicast groups already on the switch.
