Choose the menu ACLACL ConfigStandard-IP ACL to load the following page.

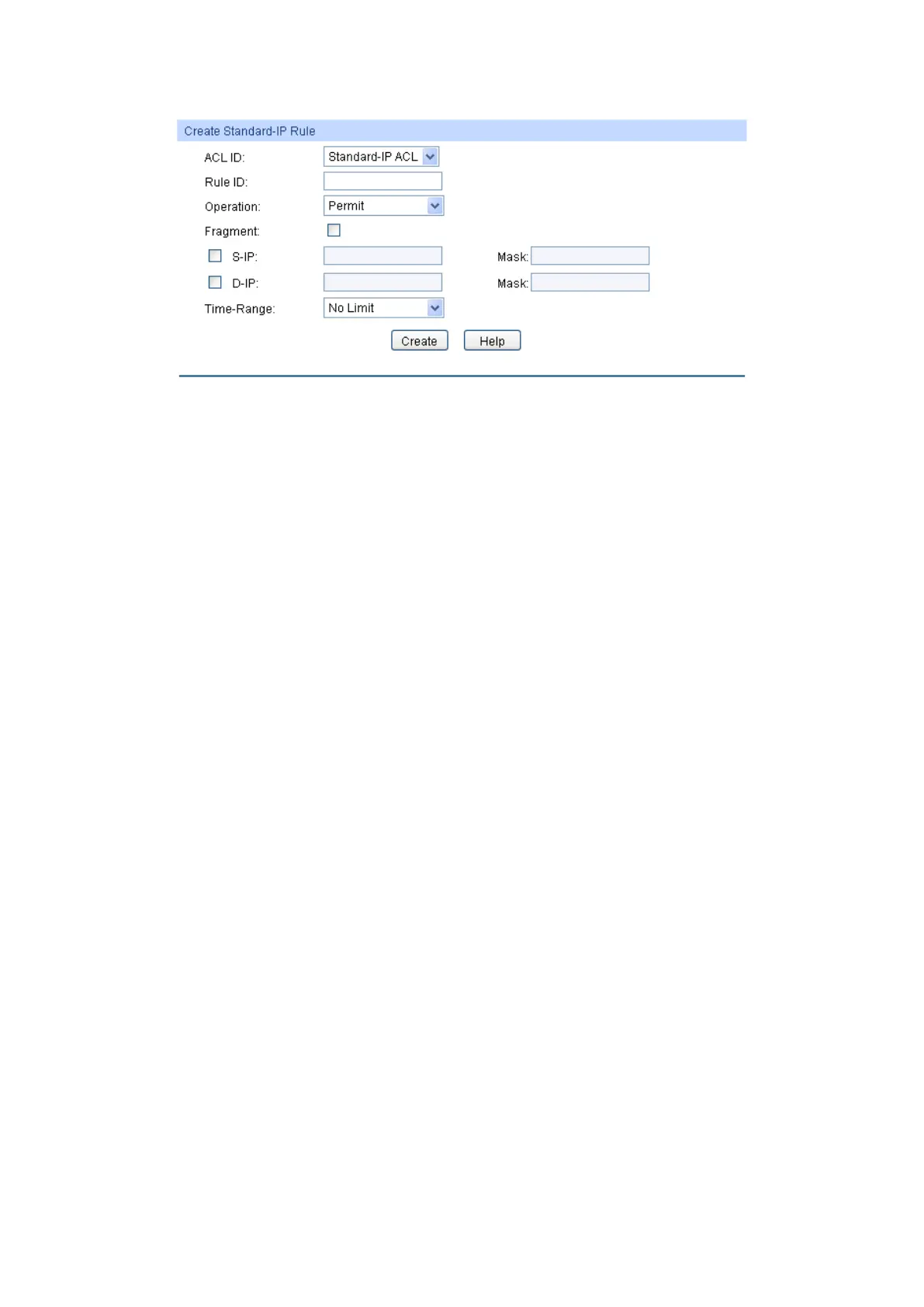

Figure12-7 Create Standard-IP Rule
The following entries are displayed on this screen:
Create Standard-IP Rule
ACL ID: Select the desired Standard-IP ACL for configuration.
Rule ID: Enter the rule ID.
Operation:
Select the operation for the switch to process packets which match the
rules.
Permit: Forward packets.
Deny: Discard Packets.
Fragment: Select if the rule will take effect on the fragment. When the fragment is
selected, this rule will process all the fragments and the last piece of
fragment will be always forwarded.
S-IP: Enter the source IP address contained in the rule.
D-IP: Enter the destination IP address contained in the rule.
Mask: Enter
IP address mask. If it is set to 1, it must strictly match the
address.
Time-Range: Select the time-range for the rule to take effect.
12.2.5 Extend-IP ACL
Extend-IP ACLs analyze and process data packets based on a series of match conditions, which
can be the source IP addresses, destination IP addresses, IP protocol and other information of this
sort carried in the packets.
Choose the menu ACLACL ConfigExtend-IP ACL to load the following page.
