78
6.5 Application Example for MAC VLAN
Network Requirements
Switch A and switch B are connected to meeting room A and meeting room B respectively, and
the two rooms are for all departments;
Notebook A and Notebook B, special for meeting room, are of two different departments;
The two departments are in VLAN10 and VLAN20 respectively. The two notebooks can just
access the server of their own departments, that is, Server A and Server B, in the two meeting
rooms;
The MAC address of Notebook A is 00-19-56-8A-4C-71, Notebook Bs MAC address is
00-19-56-82-3B-70.

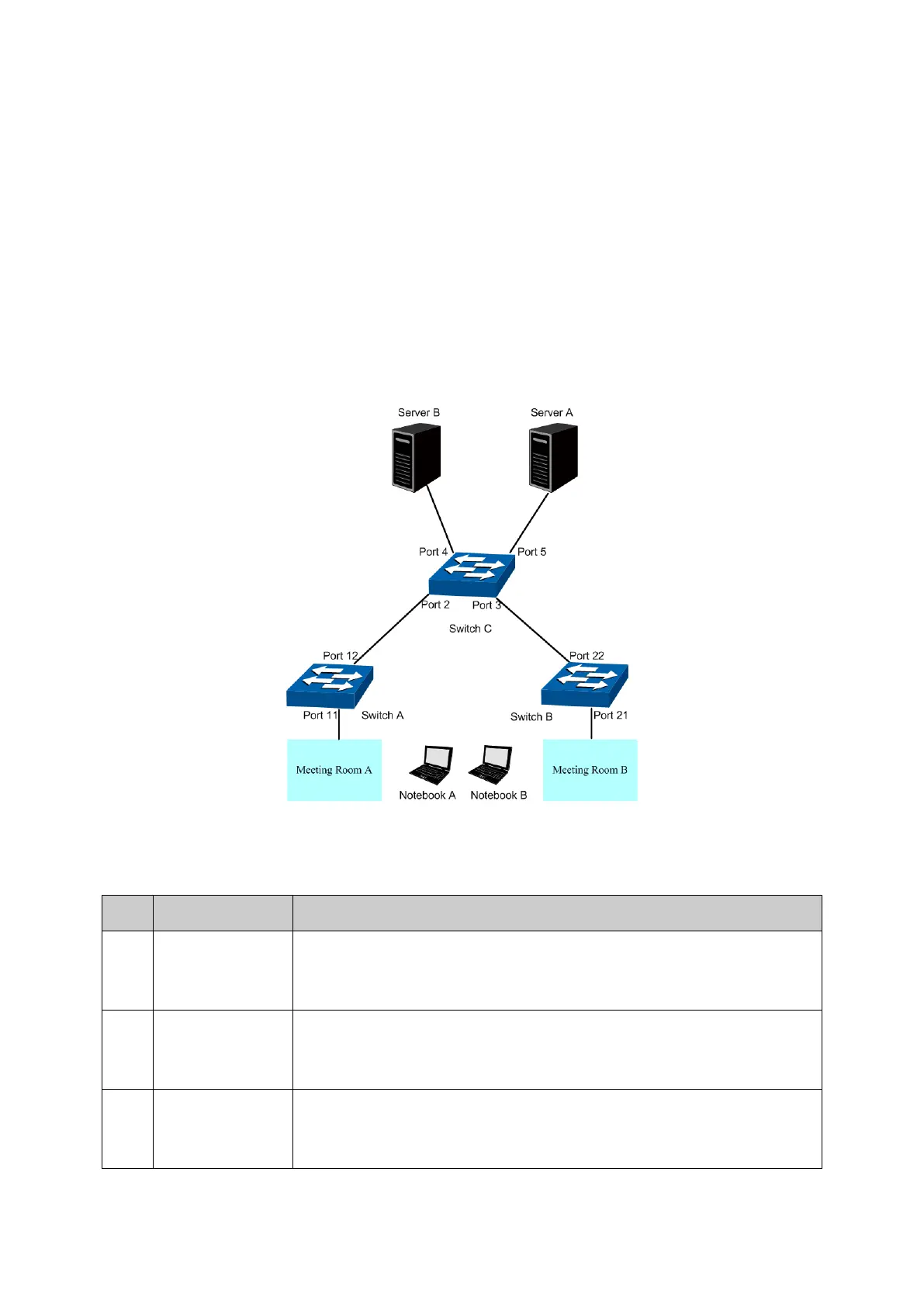

Network Diagram
Configuration Procedure
Configure switch A
Step Operation Description
1
Configure the
Link Type of the
ports
Required. On VLAN802.1Q VLANPort Config page, configure the
link type of Port 11 and Port 12 as GENERAL and TRUNK respectively.
2
Create VLAN10 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLAN ID as 10, ownin
g Port 11 and Port 12, and
configure the egress rule of Port 11 as Untag.
3
Create VLAN20 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLAN
ID as 20, owning Port 11 and Port 12, and
configure the egress rule of Port 11 as Untag.
