77
Switch B is connecting to PC B and Server A;
PC A and Server A is in the same VLAN;
PC B and Server B is in the same VLAN;
PCs in the two VLANs cannot communicate with each other.

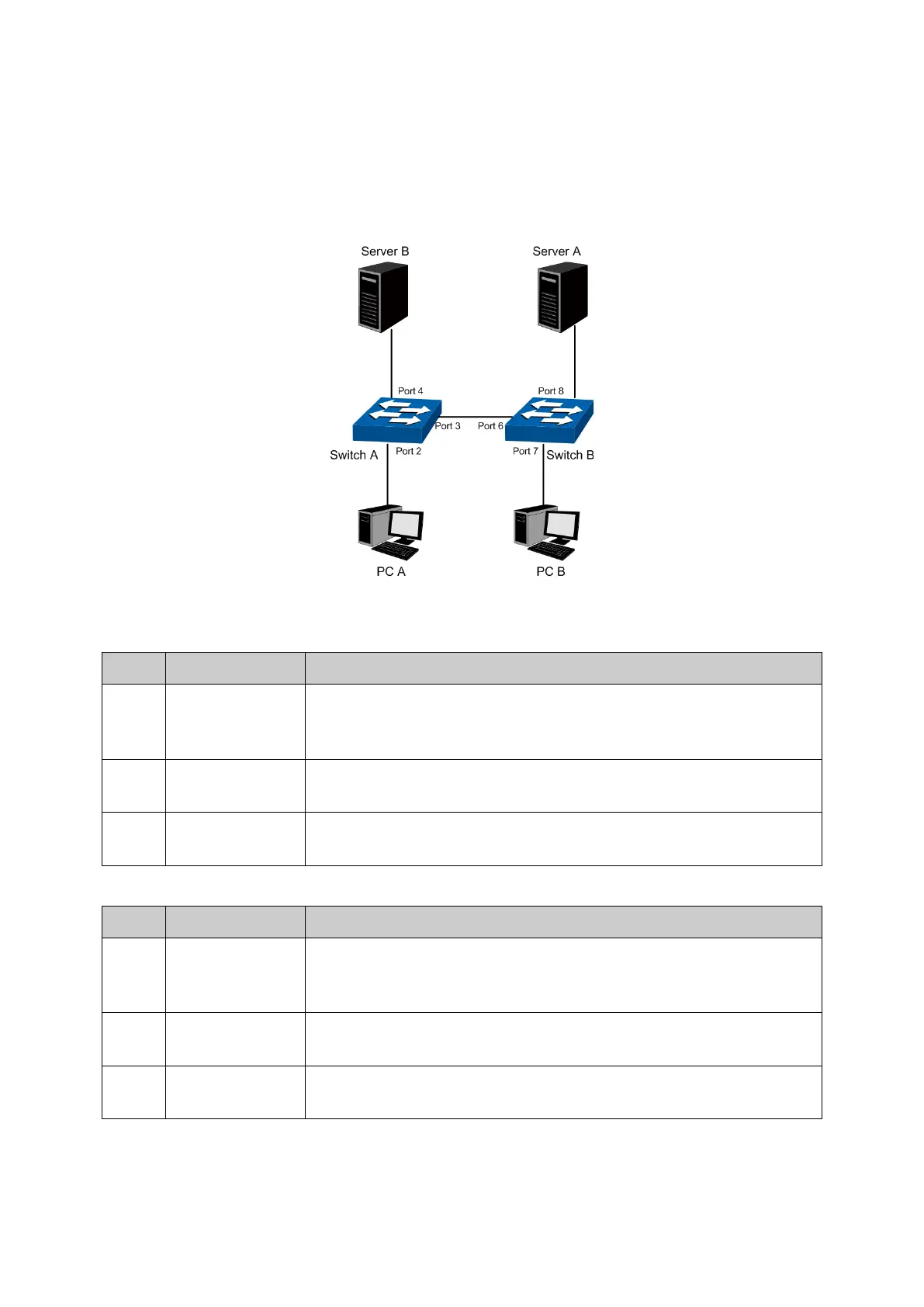

Network Diagram
Configuration Procedure
Configure switch A
Step Operation Description
1
Configure the
Link Type of the
ports
Required. On VLAN802.1Q VLANPort Config
page, configure
the link type of Port 2, Port 3 and
Port 4 as ACCESS, TRUNK and
ACCESS respectively
2
Create VLAN10 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLAN ID as 10, owning Port 2 and Port 3.
3
Create VLAN20 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLAN ID as 20, owning Port 3 and Port 4.
Configure switch B
Step Operation Description
1
Configure the
Link Type of the
ports
Required. On VLAN802.1Q VLANPort Config pa
ge, configure
the link type of Port 7, Port 6 and
Port 8 as ACCESS, TRUNK and
ACCESS respectively.
2
Create VLAN10 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLAN ID as 10, owning Port 6 and Port 8.
3
Create VLAN20 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLAN ID as 20, owning Port 6 and Port 7.
