TP-Link JetStream L2 User Manual

49

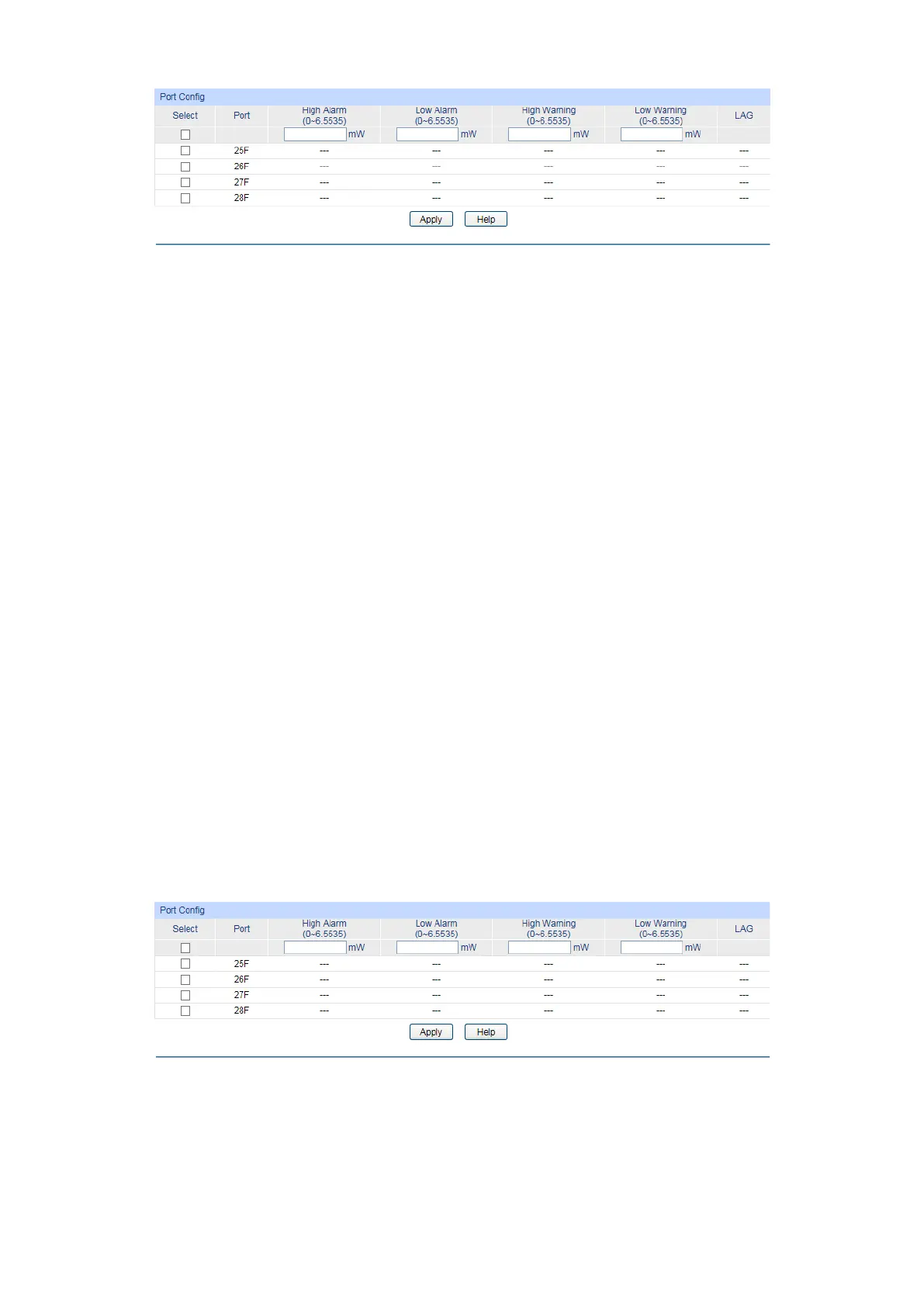

Figure 5-10 Tx Power Threshold
The following entries are displayed on this screen:

Port Config
Select:
Select the desired port for configuration. It is multi-optional.
Port:
Displays the port number.
H
igh Alarm:
This is the highest threshold for the alarm. When the operating
parameter rises above this value, action associated with the
alarm will be taken.
Low Alarm
: This is the lowest threshold for the alarm.
When the operating
parameter falls below this value, action associated with the
alarm will be taken.
High Warning:
This is the highest threshold for the warning. When the
operating parameter rises above this value, action associated
with the warning will be taken.
Low Warning:
This is the lowest threshold for the warning. When the
operating parameter falls below this value, action associated
with the warning will be taken.
LAG:
Displays the LAG number which the port belongs to.
5.2.6 Rx Power Threshold
On this page, you can view and configure the DDM Rx Power Threshold for specific ports on the
switch.
Choose the menu Switching→DDM→Rx Power Threshold to load the following page.
Figure 5-11 Rx Power Threshold
The following entries are displayed on this screen:

Port Config
Select:
Select the desired port for configuration. It is multi-optional.
