12.2.3 MAC ACL
MAC ACLs analyze and process packets based on a series of match conditions, which can be the
source MAC addresses, destination MAC addresses, VLAN ID, and EtherType carried in the
packets.
Choose the menu ACL→ACL Config→MAC ACL to load the following page.

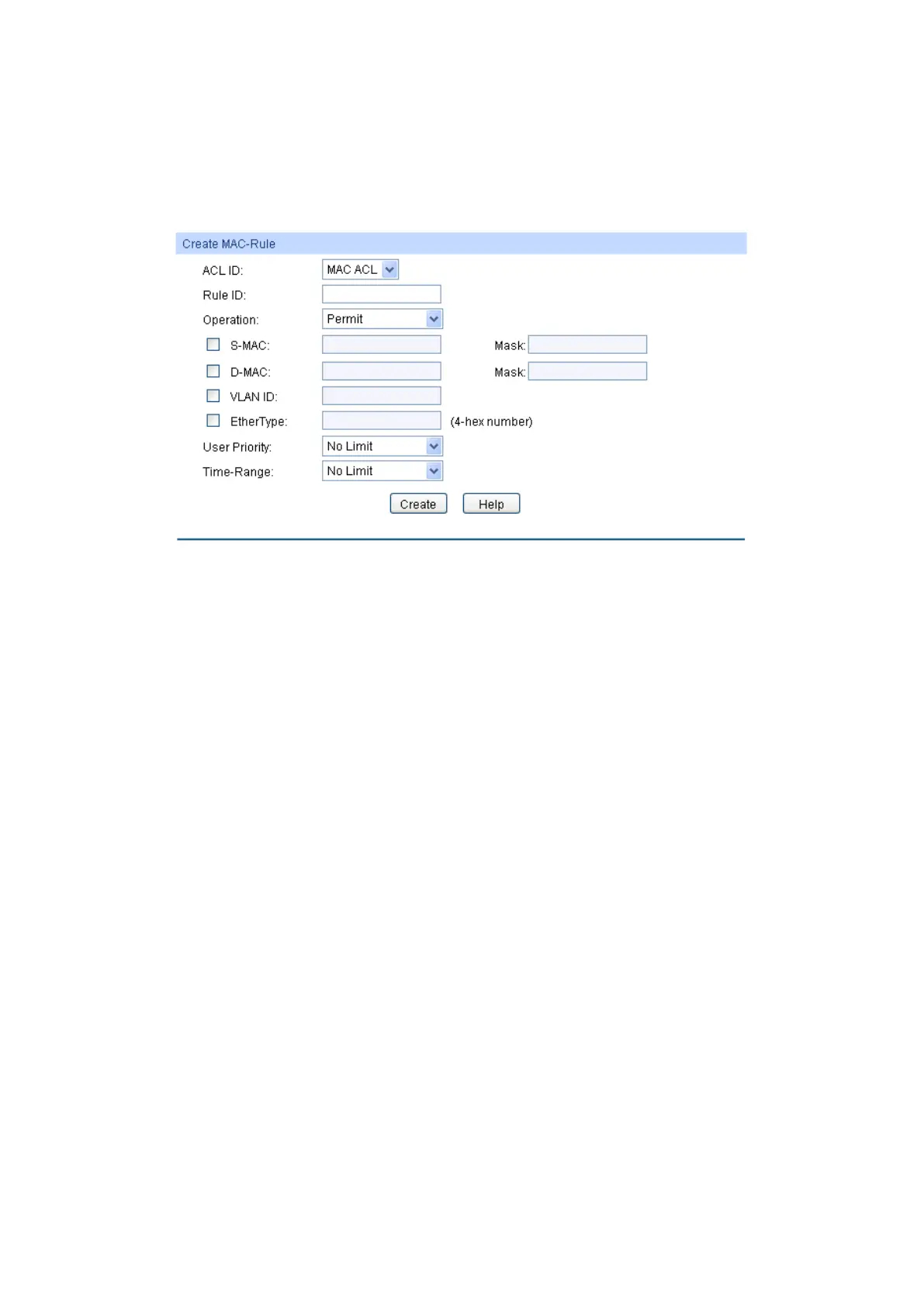

Figure12-6 Create MAC Rule
The following entries are displayed on this screen:
Create MAC-Rule
ACL ID: Select the desired MAC ACL for configuration.
Rule ID: Enter the rule ID.
Operation:
Select the operation for the switch to process packets which match the
rules.
Permit: Forward packets.
Deny: Discard Packets.
S-MAC: Enter the source MAC address contained in the rule.
D-MAC: Enter the destination MAC address contained in the rule.
MASK:
Enter MAC address mask. If it is set to 1, it must strictly match the
address.
VLAN ID: Enter the VLAN ID contained in the rule.
EtherType: Enter EtherType contained in the rule.
User Priority: Select the user priority conta
ined in the rule for the tagged packets to
match.
Time-Range: Select the time-range for the rule to take effect.
12.2.4 Standard-IP ACL
Standard-IP ACLs analyze and process data packets based on a series of match conditions, which
can be the source IP addresses and destination IP addresses carried in the packets.
