228
supplicant during the Quiet Period.
Retry Times:
Specify the maximum transfer times of the repeated
authentication request.
Supplicant Timeout:
Specify the maximum time for the switch to wait for the
response from supplicant before resending a request to
the supplicant.
13.6.2 Port Config
On this page, you can configure the 802.1X features for the ports basing on the actual network.
Choose the menu Network Security802.1XPort Config to load the following page.

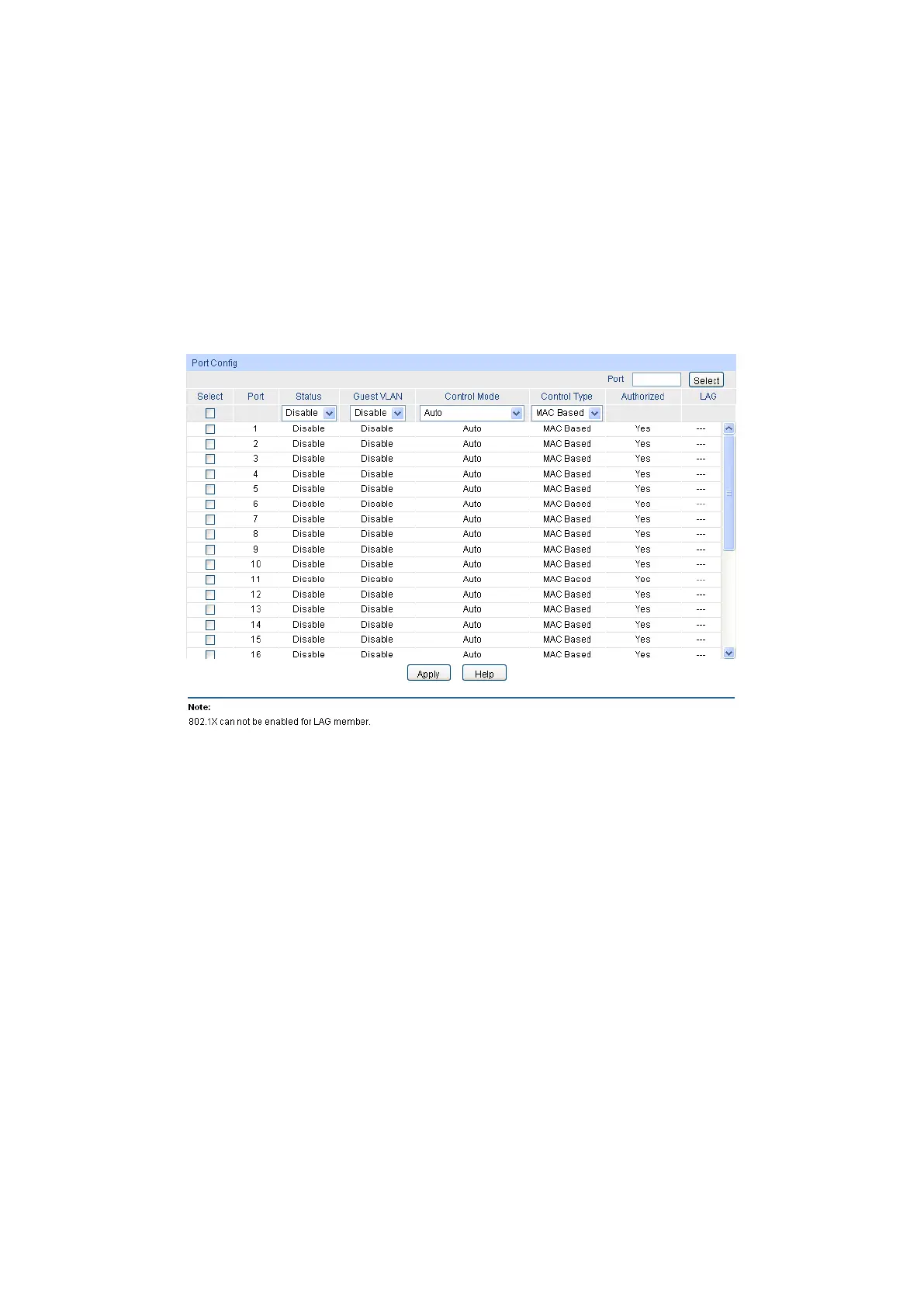

Figure 13-24 Port Config
The following entries are displayed on this screen:
Port Config
Port Select:
Click the Select button to quick-select the corresponding port
based on the port number you entered.
Select:
Select your desired port for configuration. It is multi-optional.
Port:
Displays the port number.
Status:
Enable/Disable the 802.1X authentication feature for the port.
Guest VLAN:
Enable/Disable the Guest VLAN feature for the port.
Control Mode:
Specify the Control Mode for the port.
Auto: In this mode, the port will normally work only after
passing the 802.1X Authentication.
Force-Authorized: In this mode, the port can work normally
without passing the 802.1X Authentication.
Force-Unauthorized: In this mode, the port is forbidden
working for its fixed unauthorized status.
