89
Choose the menu VLANPrivate VLANPVLAN Config to load the following page.

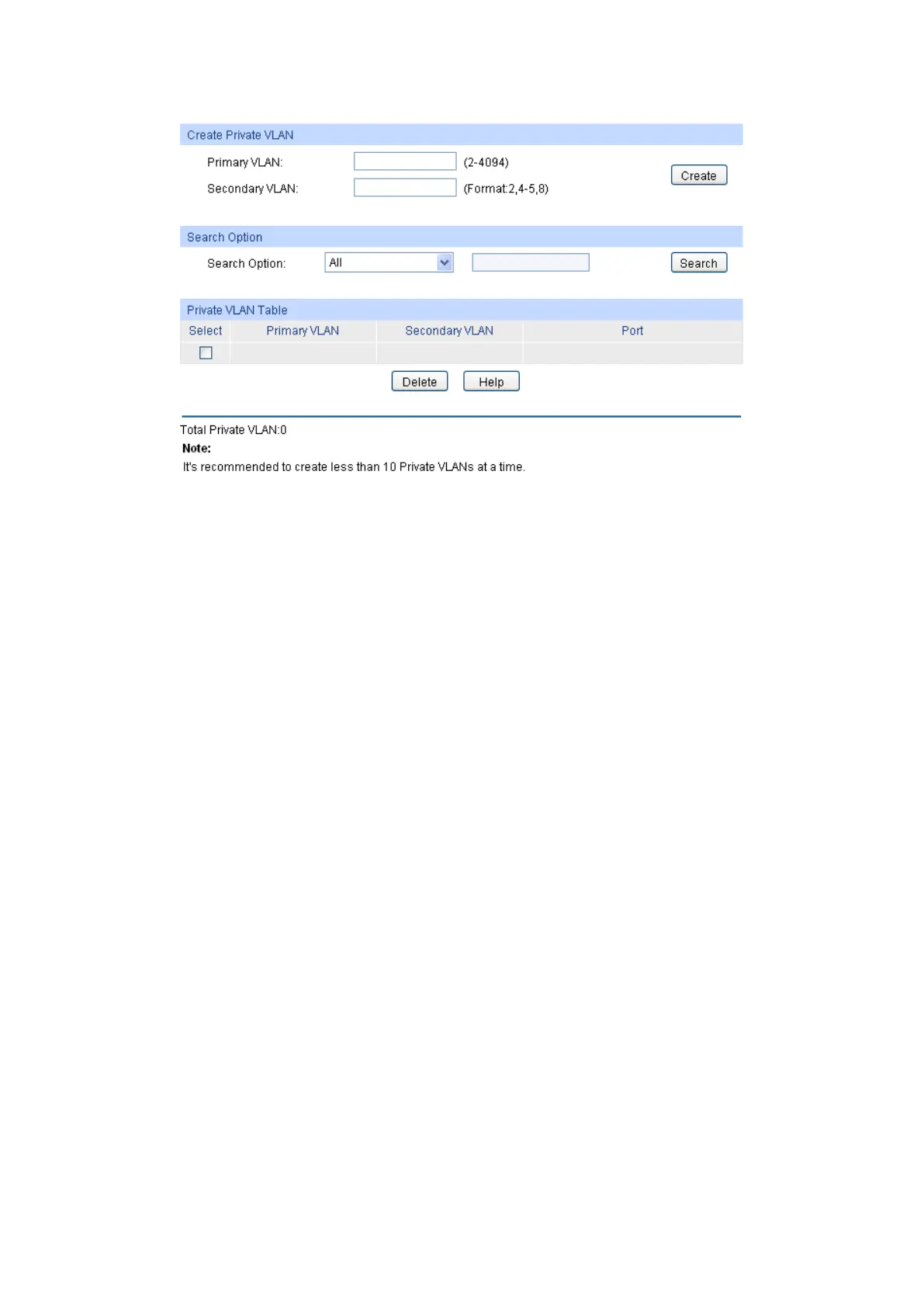

Figure 6-16 Create Private VLAN
The following entries are displayed on this screen:
Create Private VLAN
Primary VLAN
: Enter the ID number of the Primary VLAN.
Secondary VLAN:
Enter the ID number of the Secondary VLAN.
Search Option
Search Option
: Select a Search Option from the pull-down list and click the Search
button to find your desired entry in Private VLAN.
Primary VLAN ID:
Enter the Primary VLAN ID number of the
desired Private VLAN.
Secondary VLAN ID:
Enter the Secondary VLAN ID number of
the desired Private VLAN.
Private VLAN Table
Select:
Select the entry to delete. It is multi-optional.
Primary VLAN
: Displays the Primary VLAN ID number of the Private VLAN.
Secon
dary VLAN
:
Displays the Secondary VLAN ID number of the Private VLAN.
Port
: Displays the Port number of the Private VLAN.
6.8.2 Port Config
The Private VLAN provides two Port Types for the ports, Promiscuous and Host. Usually, the
Promiscuous port is used to connect to uplink devices while the Host port is used to connect to the
he terminal hosts, such as PC and Server.
