57
: Displays the number of packets transmitted on the port.
: Displays the number of octets received on the port. The
are counted in.
: Displays the number of octets transmitted on the port.
: Click the Statistics
button to view the detailed traffic statistics of the
port.
5.4.2 Traffic Statistics
Traffic Statistics screen displays the detailed traffic information of each port, which facilitates you to
monitor the traffic and locate faults promptly.
Choose the menu Switching→Traffic Monitor→Traffic Statistics to load the following page.

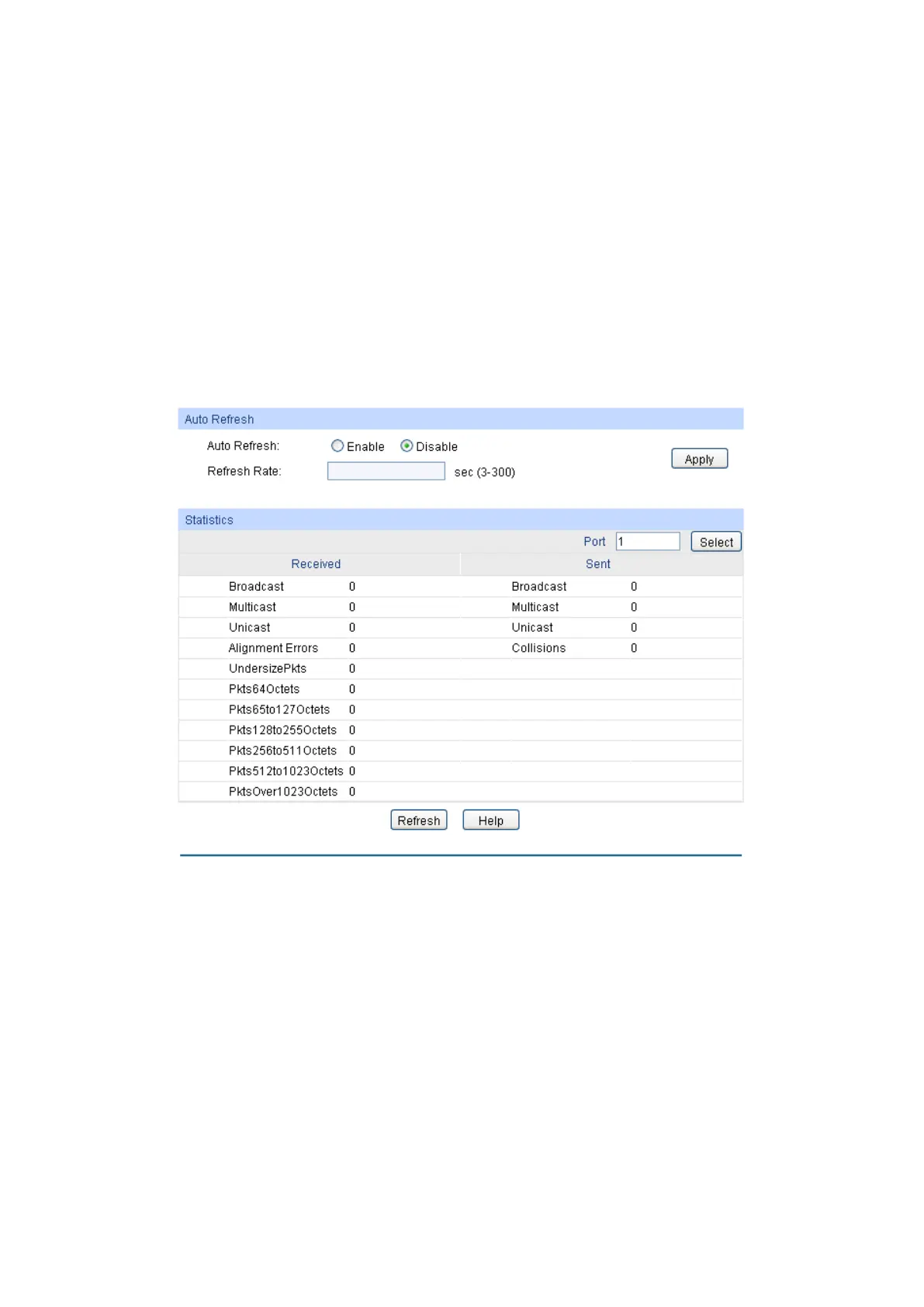

Figure 5-18 Traffic Statistics
The following entries are displayed on this screen:
Auto Refresh
: Allows you to Enable/Disable refreshi
automatically.
: Enter a value in seconds to specify the refresh interval.
Statistics
: Enter a port number and click the Select
button to view the traffic
statistics of the corresponding port.
: Displays the details of the packets received on the port.
