193

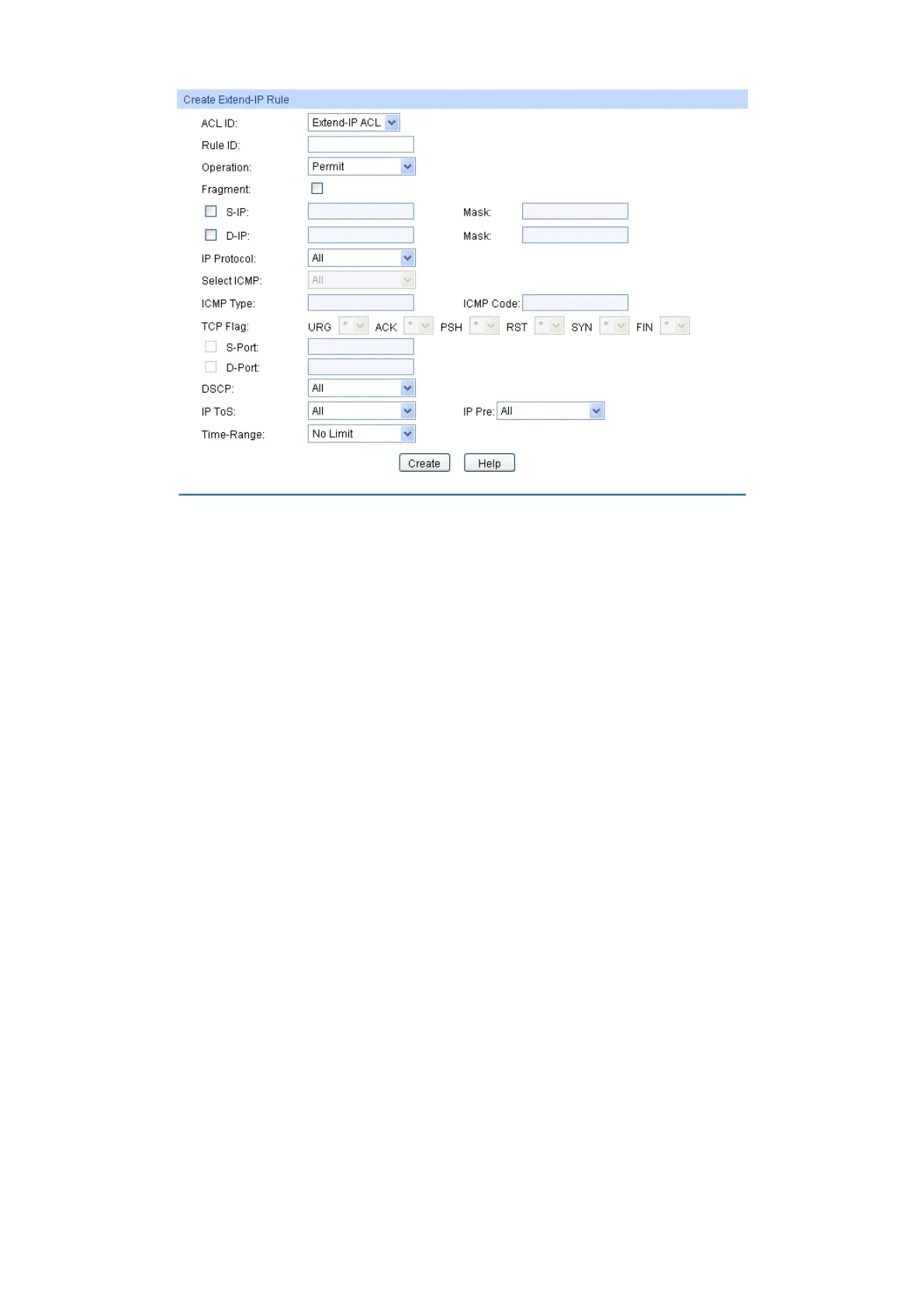

Figure12-8 Create Extend-IP Rule
The following entries are displayed on this screen:
Create Extend-IP Rule
ACL ID: Select the desired Extend-IP ACL for configuration.
Rule ID: Enter the rule ID.
Operation:
Select the operation for the switch to process packets which match the
rules.
Permit: Forward packets.
Deny: Discard Packets.
Fragment: Select if the rule will take effect on the fragment packets. When th
e
fragment is selected, this rule will process all the fragments and the
last piece of fragment will be always forwarded.
S-IP: Enter the source IP address contained in the rule.
D-IP: Enter the destination IP address contained in the rule.
Mask: Enter
IP address mask. If it is set to 1, it must strictly match the
address.
IP Protocol: Select IP protocol contained in the rule.
Select ICMP: Configure the predefined ICMP type and code.
ICMP Type: Configure the predefined ICMP type
ICMP Code
Configure the predefined ICMP code.
TCP Flag
Configure TCP flag when TCP is selected from the pull-
down list of IP
Protocol.
