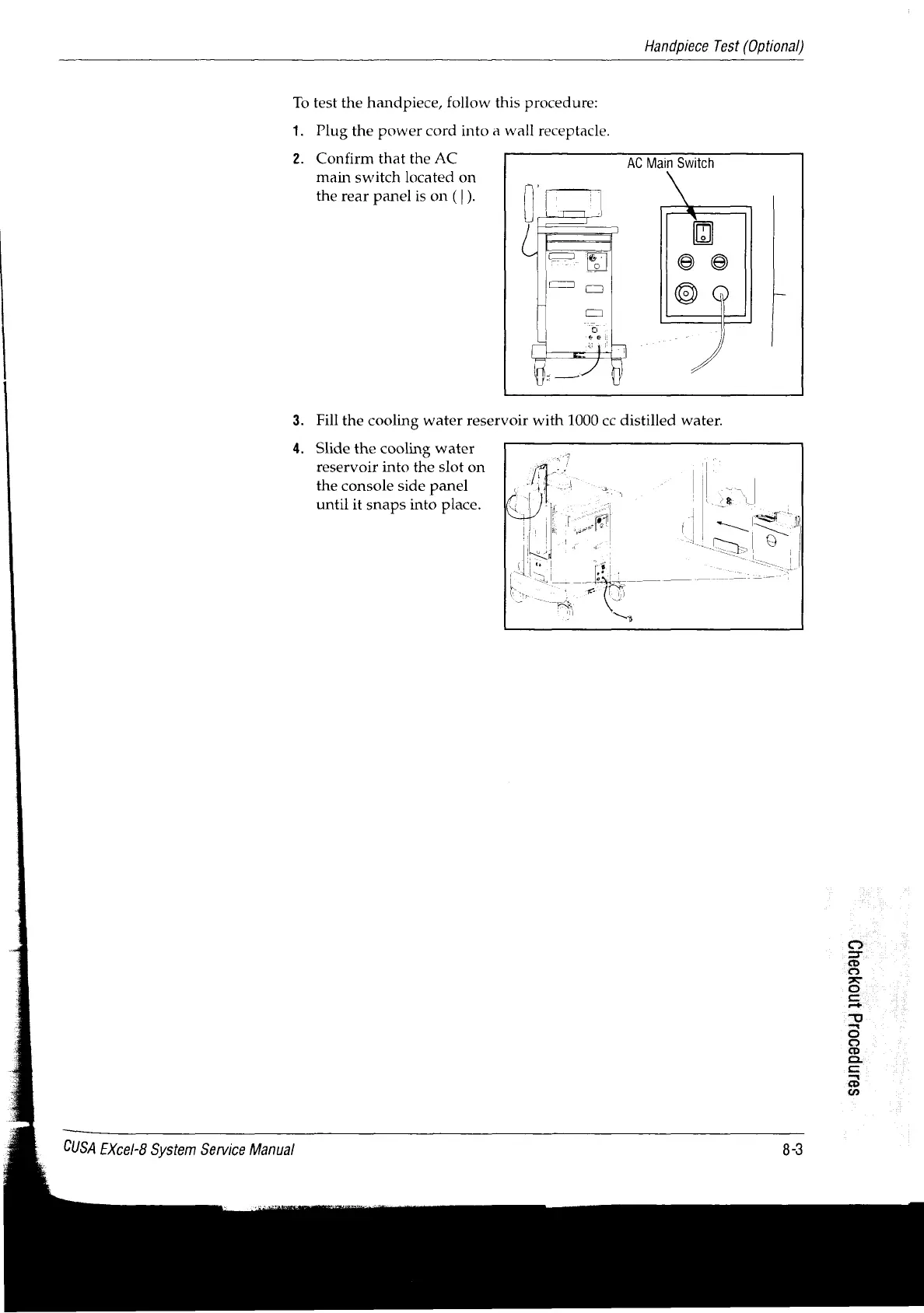

Handpiece Test (Optional)
To test the handpiece, follow this procedure:
1. Plug the power cord into a wall receptacle.
2. Confirm that the AC AC Main Switch
main switch located on
the rear panel is on (|). |
3. Fill the cooling water reservoir with 1000 cc distilled water.
4. Slide the cooling water =
reservoir into the slot on fi aa
the console side panel $ 7 a,
until it snaps into place. CU “Woe coast
5910р99024
1105945)
CUSA EXcel-8 System Service Manual
