Valleylab CUSA EXcel-8 - 36 Khz

Tip Specifications
36 kHz

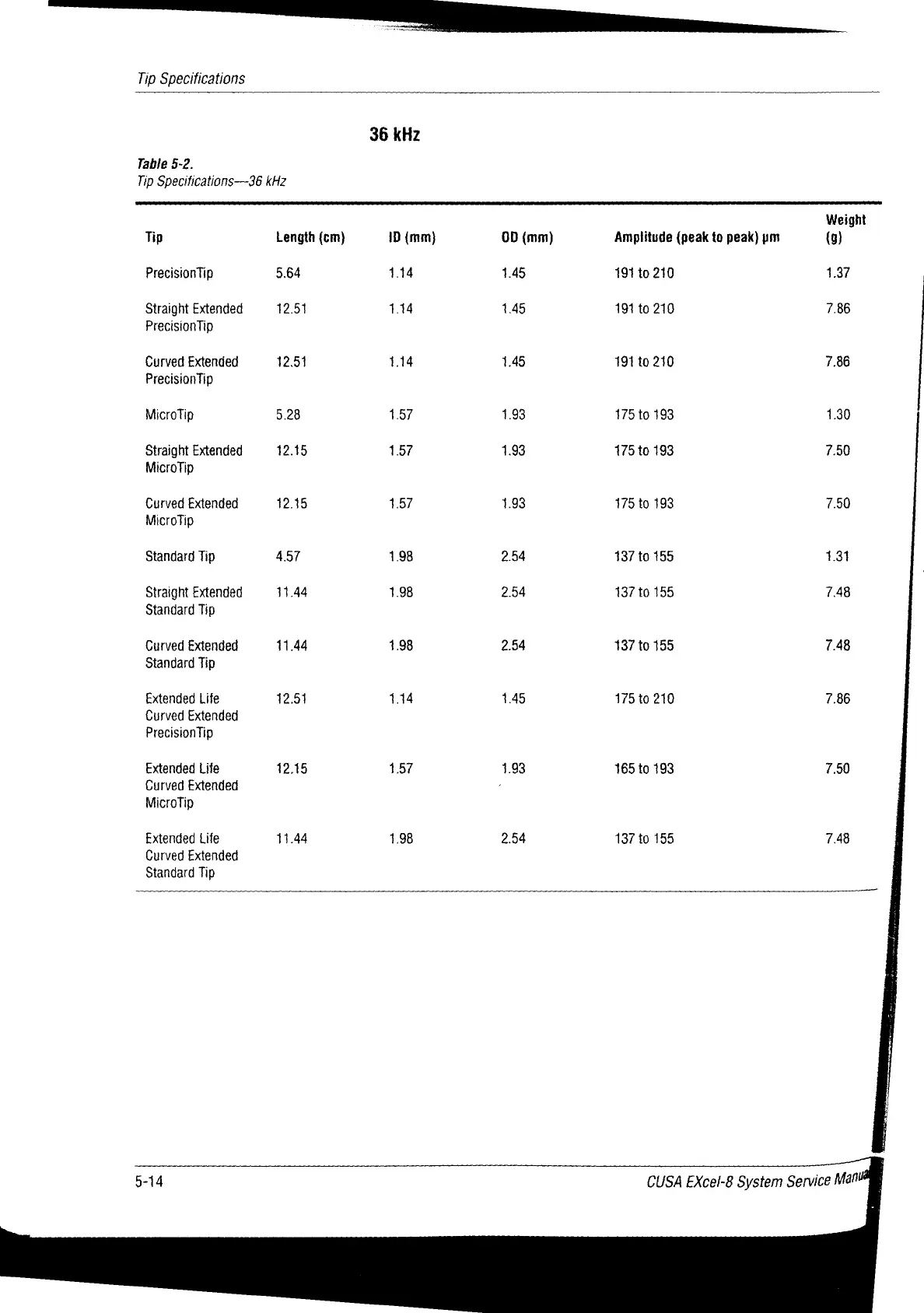

Table 5-2.
Tip Specifications —36 kHz
Weight
Tip Length (cm) ID (mm) OD (mm) Amplitude (peak to peak) pm (9)
PrecisionTip 5.64 1.14 1.45 191 to 210 1.37
Straight Extended 12.51 1.14 1.45 191 to 210 7.86
PrecisionTip
Curved Extended 12.51 1.14 1.45 191 to 210 7.86
PrecisionTip
MicroTip 5.28 1.57 1.93 175 to 193 1.30
Straight Extended 12.15 1.57 1.93 175 to 193 7.50
MicroTip
Curved Extended 12.15 157 1.93 175 to 193 7.50
MicroTip
Standard Tip 457 1.98 2.54 187 to 155 1.31
Straight Extended 11.44 1.98 2.54 137 to 155 7.48
Standard Tip
Curved Extended 11.44 1.98 2.54 137 to 155 7.48
Standard Tip
Extended Life 12.51 1.14 1.45 175 to 210 7.86
Curved Extended
PrecisionTip
Extended Life 12.15 1.57 1.93 165 to 193 7.50
Curved Extended -
MicroTip
Extended Life 11.44 1.98 2.54 137 to 155 7.48
Curved Extended
Standard Tip
5-14 CUSA EXcel-8 System Service Mañ
