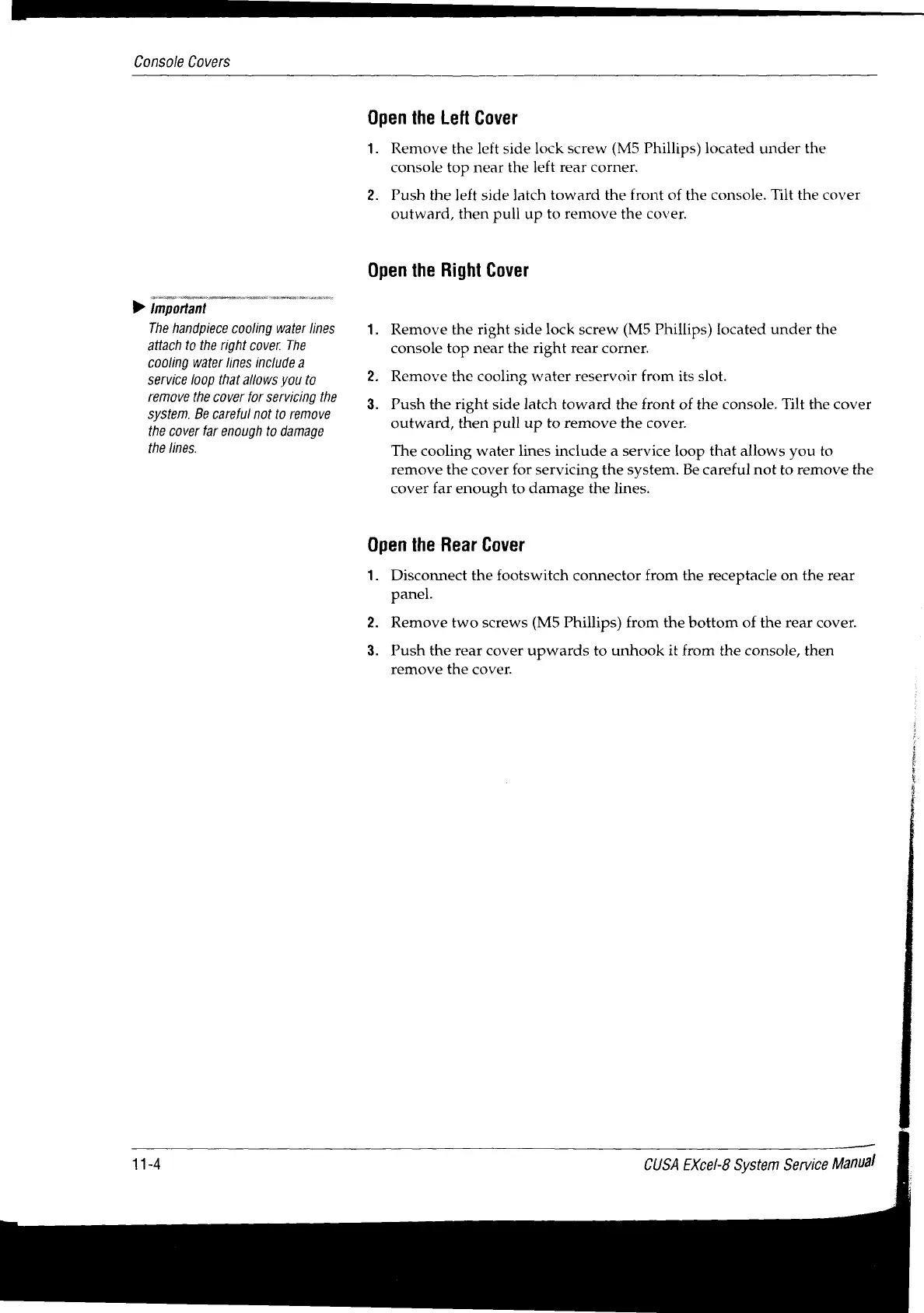

Console Covers
|
D Important
The handpiece cooling water lines
attach to the right cover. The
cooling water lines include a
service loop that allows you to
remove the cover for servicing the
system. Be careful not to remove
the cover far enough to damage
the lines.
Open the Left Cover
1. Remove the left side lock screw (M5 Phillips) located under the
console top near the left rear corner.
Push the left side latch toward the front of the console. Tilt the cover
outward, then pull up to remove the cover.
Open the Right Cover
Remove the right side lock screw (M5 Phillips) located under the
console top near the right rear corner.
Remove the cooling water reservoir from its slot.
Push the right side latch toward the front of the console. Tilt the cover
outward, then pull up to remove the cover.
The cooling water lines include a service loop that allows you to
remove the cover for servicing the system. Be careful not to remove the
cover far enough to damage the lines.
Open the Rear Cover
1. Disconnect the footswitch connector from the receptacle on the rear
panel.
Remove two screws (M5 Phillips) from the bottom of the rear cover.
Push the rear cover upwards to unhook it from the console, then
remove the cover.
