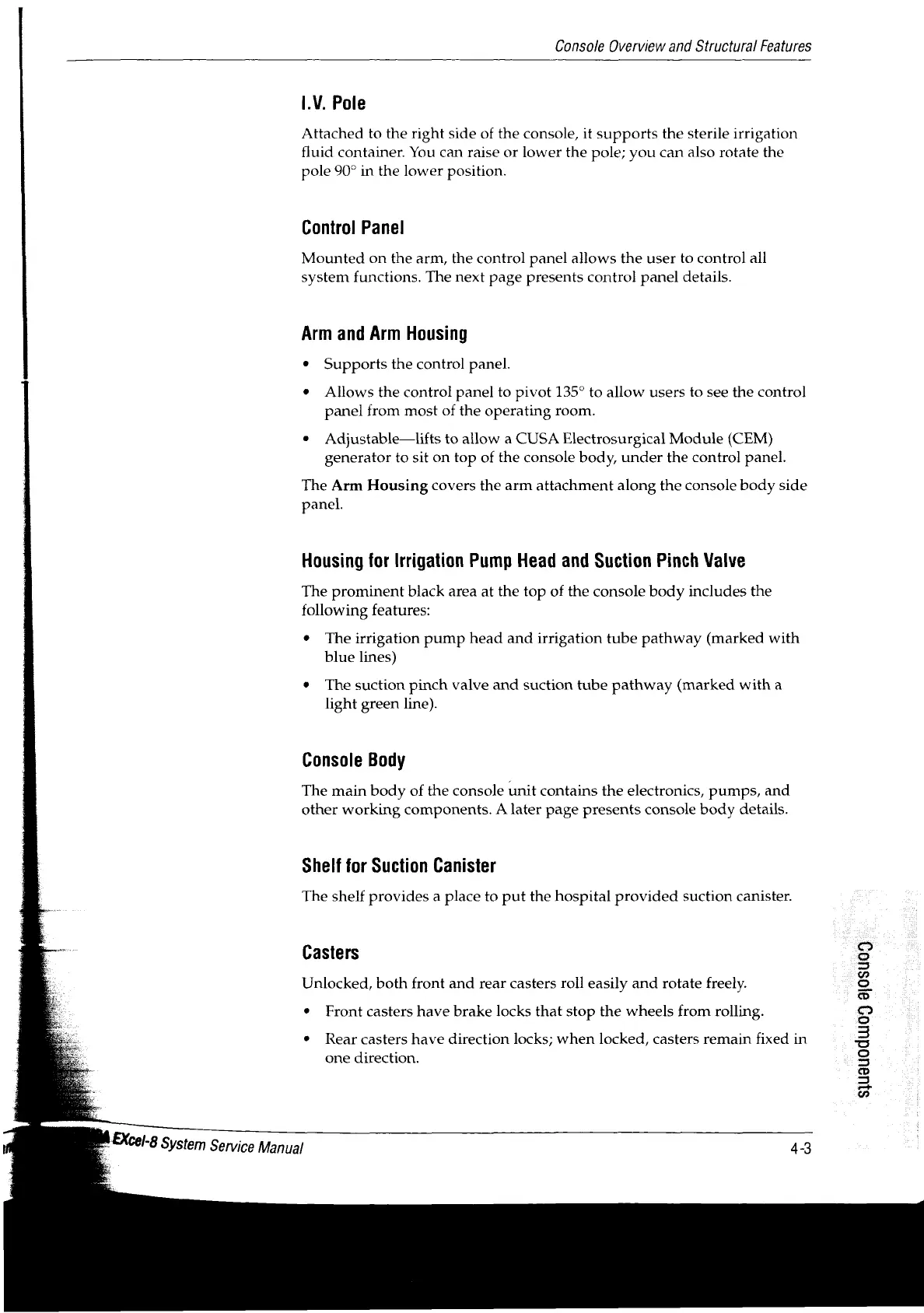

Console Overview and Structural Features
I.V. Pole
Attached to the right side of the console, it supports the sterile irrigation
fluid container. You can raise or lower the pole; you can also rotate the
pole 90° in the lower position.
Control Panel
Mounted on the arm, the control panel allows the user to contro] ail
system functions. The next page presents control panel details.
Arm and Arm Housing
e Supports the control panel.
] e Allows the control panel to pivot 135° to allow users to see the control
panel from most of the operating room.
e Adjustable—lifts to allow a CUSA Electrosurgical Module (CEM)
generator to sit on top of the console body, under the control panel.
The Arm Housing covers the arm attachment along the console body side
panel.
Housing for Irrigation Pump Head and Suction Pinch Valve
The prominent black area at the top of the console body includes the
following features:
* The irrigation pump head and irrigation tube pathway (marked with
blue lines)
* The suction pinch valve and suction tube pathway (marked with a
light green line).
Console Body
The main body of the console unit contains the electronics, pumps, and
other working components. A later page presents console body details.
Shelf for Suction Canister
The shelf provides a place to put the hospital provided suction canister.
Casters
Unlocked, both front and rear casters roll easily and rotate freely.
¢ Front casters have brake locks that stop the wheels from rolling.
e Rear casters have direction locks; when locked, casters remain fixed in
one direction.
