Electronic Parts
Table 14-7.
Ultrasonics board parts—resistors
Table 14-8.
Ultrasonics board parts—diodes

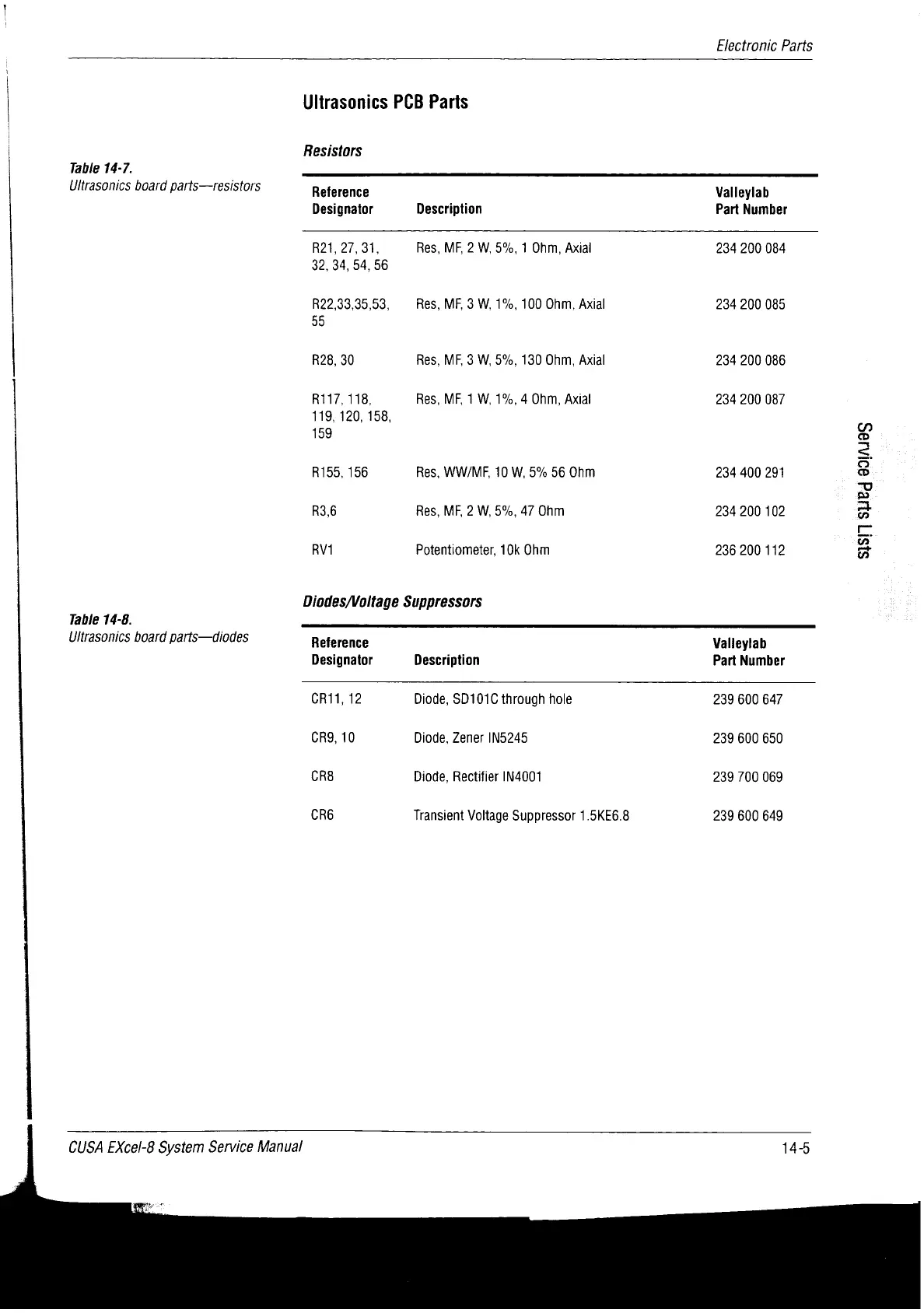

Ultrasonics PCB Parts
Resistors
Reference Valleylab
Designator Description Part Number
R21, 27, 31, Res, MF, 2 W, 5%, 1 Ohm, Axial 234 200 084
32, 34, 54, 56
R22,33,35,53, Res, MF, 3 W, 1%, 100 Ohm, Axial 234 200 085
55
R28, 30 Res, MF, 3 W, 5%, 130 Ohm, Axial 234 200 086
R117, 118, Res, MF, 1 W, 1%, 4 Ohm, Axial 234 200 087
119, 120, 158,
159
R155, 156 Res, WW/MF, 10 W, 5% 56 Ohm 234 400 291
R3,6 Res, MF, 2 W, 5%, 47 Ohm 234 200 102
RV1 Potentiometer, 10k Ohm 236 200 112
Diodes/Voltage Suppressors
Reference Valleytab
Designator Description Part Number
CR11, 12 Diode, SD101C through hole 239 600 647
CR9, 10 Diode, Zener IN5245 239 600 650
CR8 Diode, Rectifier IN4001 239 700 069
CR6 Transient Voltage Suppressor 1.5KE6.8 239 600 649
CUSA EXcel-8 System Service Manual
14-5
