Valleylab CUSA EXcel-8 - Install the Suction Pinch Valve

Suction Pinch Valve

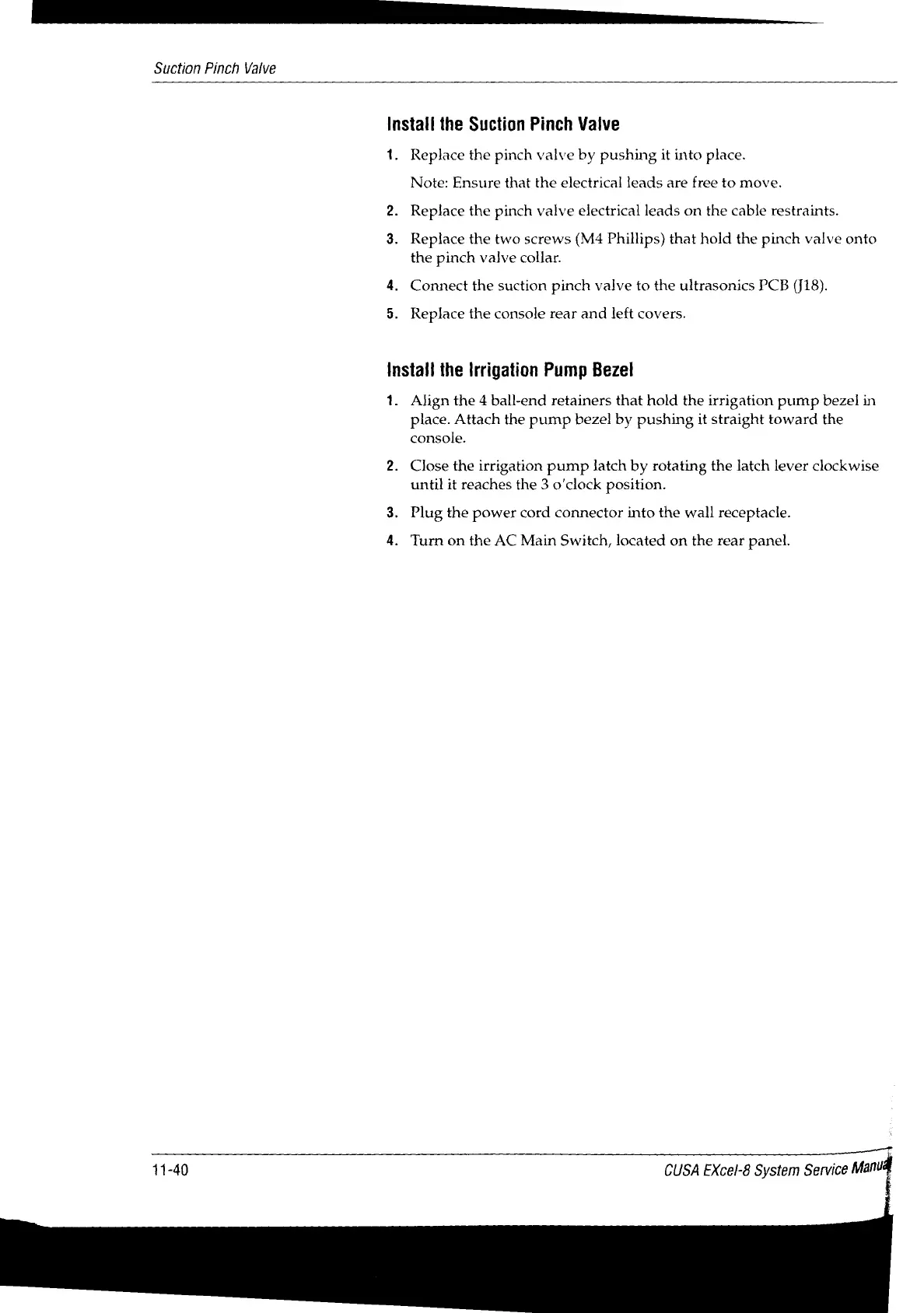

Install the Suction Pinch Valve
1.
Replace the pinch valve by pushing it into place.
Note: Ensure that the electrical leads are free to move.
Replace the pinch valve electrical leads on the cable restraints.
Replace the two screws (M4 Phillips) that hold the pinch valve onto
the pinch valve collar.
Connect the suction pinch valve to the ultrasonics PCB (J18).
Replace the console rear and left covers.
Install the Irrigation Pump Bezel
1.
11-40
Align the 4 ball-end retainers that hold the irrigation pump bezel in
place. Attach the pump bezel by pushing it straight toward the
console.
Close the irrigation pump latch by rotating the latch lever clockwise
until it reaches the 3 o'clock position.
Plug the power cord connector into the wall receptacle.
Turn on the AC Main Switch, located on the rear panel.
CUSA EXcel-8 System Service manu
