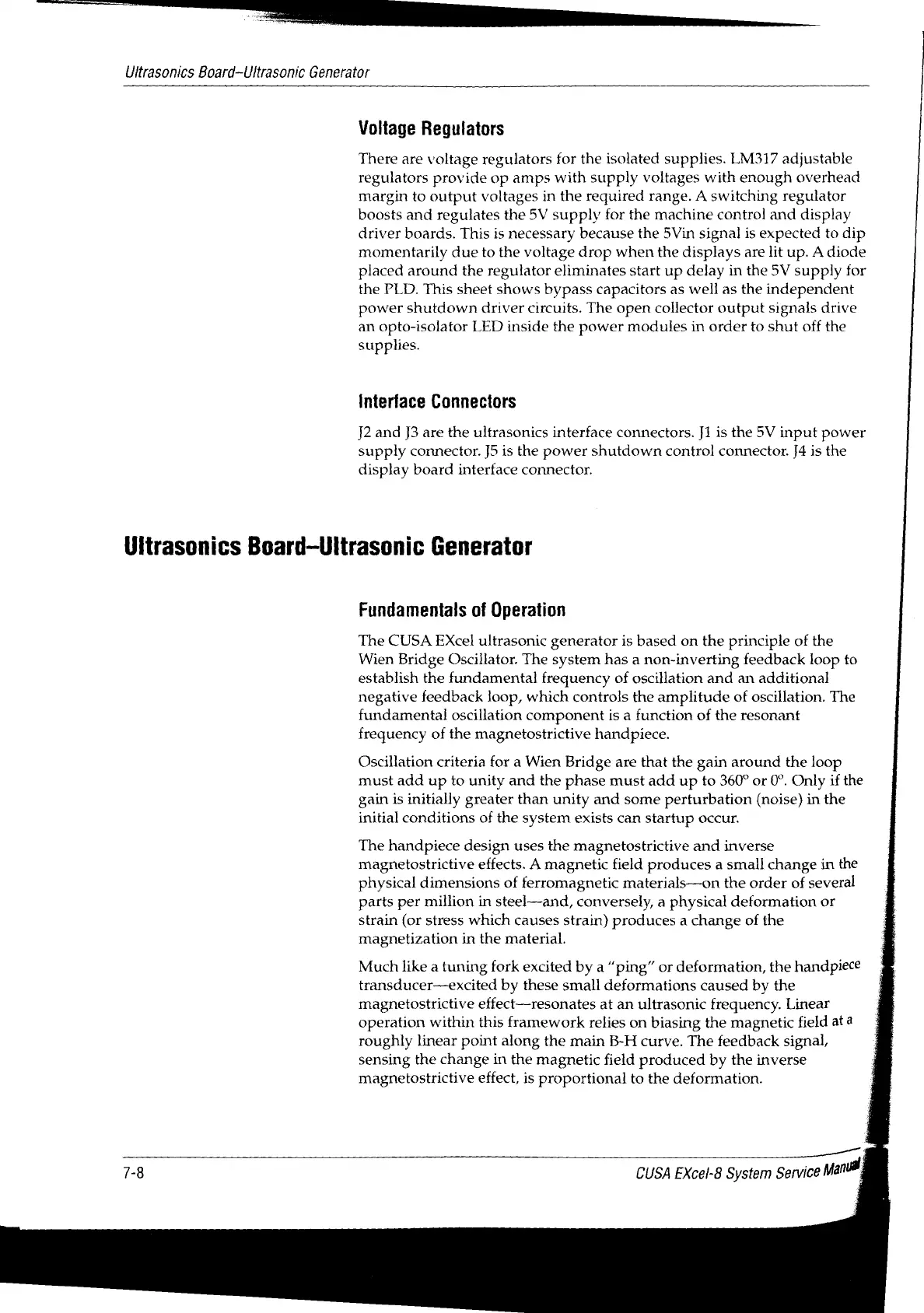

Ultrasonics
Board-Ultrasonic
Generator
Voltage
Regulators
There
are
voltage
regulators
for
the
isolated
supplies.
LM317
adjustable
regulators
provide
op
amps
with
supply
voltages
with
enough
overhead
margin
to
output
voltages
in
the
required
range.
A
switching
regulator
boosts
and
regulates
the
5V
supply
for
the
machine
control
and
display
driver
boards.
This
is
necessary
because
the
5Vin
signal
is
expected
to
dip
momentarily
due
to
the
voltage
drop
when
the
displays
are
lit
up.
A
diode
placed
around
the
regulator
eliminates
start
up
delay
in
the
5V
supply
for
the
PLD.
This
sheet
shows
bypass
capacitors
as
well
as
the
independent
power
shutdown
driver
circuits.
The
open
collector
output
signals
drive
an
opto-isolator
LED
inside
the
power
modules
in
order
to
shut
off
the
supplies.
Interface
Connectors
J2
and
J3
are
the
ultrasonics
interface
connectors.
J1
is
the
5V input
power
supply
connector.
J5
is
the
power
shutdown
control
connector.
J4
is
the
display
board
interface
connector.
Ultrasonics
Board-Ultrasonic
Generator
Fundamentals
of
Operation
The
CUSA
EXcel
ultrasonic
generator
is
based
on
the
principle
of
the
Wien
Bridge
Oscillator.
The
system
has
a
non-inverting
feedback
loop
to
establish
the
fundamental
frequency
of
oscillation
and
an
additional
negative
feedback
loop,
which
controls
the
amplitude
of
oscillation.
The
fundamental
oscillation
component
is
a
function
of
the
resonant
frequency
of
the
magnetostrictive
handpiece.
Oscillation
criteria
for
a
Wien
Bridge
are
that
the
gain
around
the
loop
must
add
up
to
unity
and
the
phase
must
add
up
to
360°
or
0°.
Only
if
the
gain
is
initially
greater than
unity
and
some
perturbation
(noise)
in
the
initial
conditions
of
the
system
exists
can
startup
occur.
The
handpiece
design
uses
the
magnetostrictive
and
inverse
magnetostrictive
effects.
A
magnetic
field
produces
a
small
change
in
the
physical
dimensions
of
ferromagnetic
materials—on
the
order
of
several
parts
per
million
in
steel—-and,
conversely,
a
physical
deformation
or
strain
(or
stress
which
causes
strain)
produces
a
change
of
the
magnetization
in
the
material.
Much
like
a
tuning
fork
excited
by
a
“ping”
or
deformation,
the
handpiece
transducer—excited
by
these
small
deformations
caused
by
the
magnetostrictive
effect—resonates
at
an
ultrasonic
frequency.
Linear
operation
within
this
framework
relies
on
biasing
the
magnetic
field
at
4
roughly
linear
point
along
the
main
B-H
curve.
The
feedback
signal,
sensing
the
change
in
the
magnetic
field
produced
by
the
inverse
magnetostrictive
effect,
is
proportional
to
the
deformation.
78
CUSA
EXcel-8
System
Service
Man
