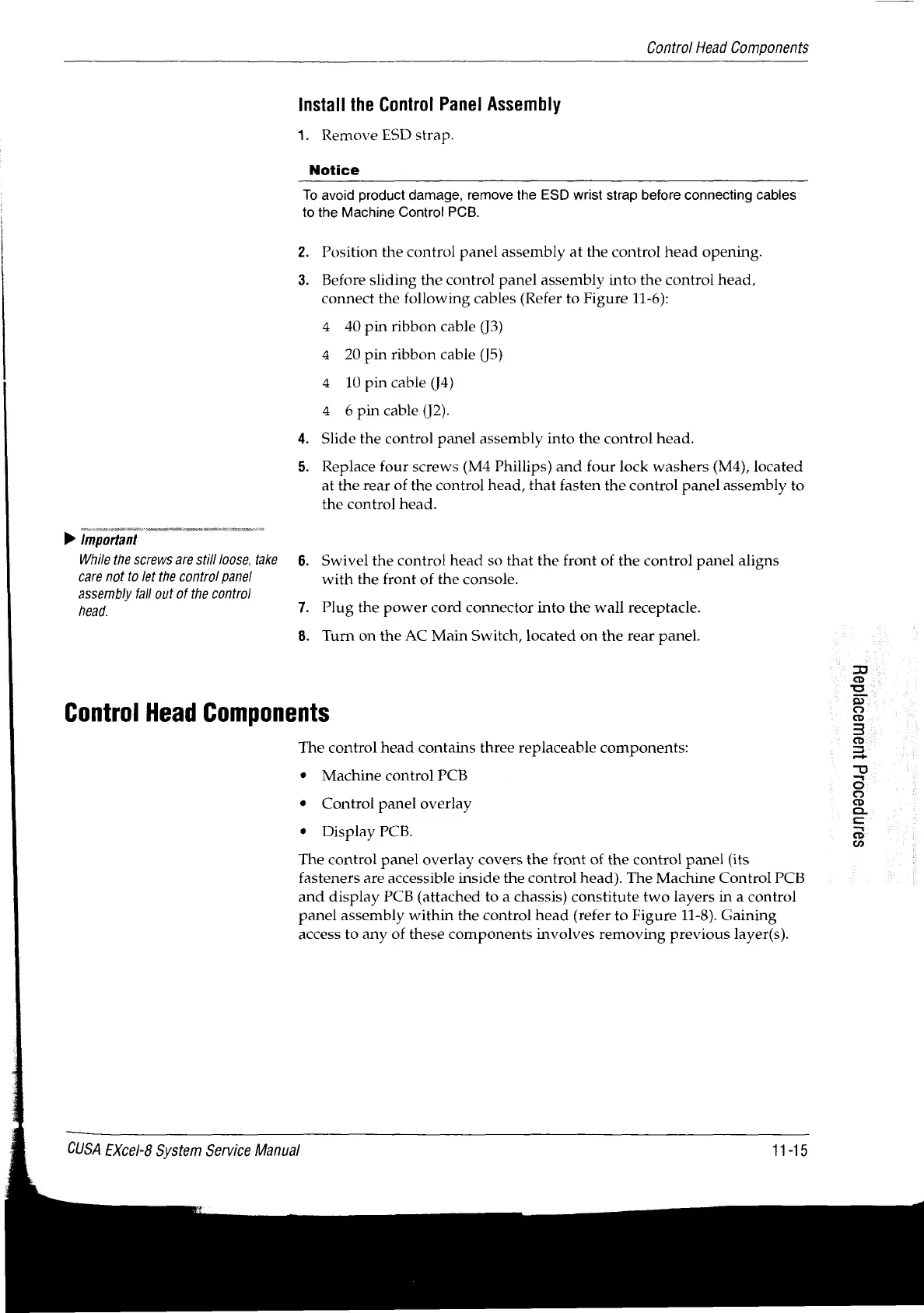

Control Head Components
EDIT E RP CC IN RI
D Important
While the screws are still loose, take
care not to let the control panel
assembly fail out of the control
head.
Install the Control Panel Assembly
1. Remove ESD strap.
Notice
To avoid product damage, remove the ESD wrist strap before connecting cables
to the Machine Control PCB.
2. Position the control panel assembly at the control head opening.
3. Before sliding the control panel assembly into the control head,
connect the following cables (Refer to Figure 11-6):
4 40 pin ribbon cable (J3)
4 20 pin ribbon cable (J5)
4 10 pin cable (J4)
4 6 pin cable (J2).
4. Slide the control panel assembly into the control head.
5. Replace four screws (M4 Phillips) and four lock washers (M4), located
at the rear of the control head, that fasten the control panel assembly to
the control head.
6. Swivel the control head so that the front of the control panel aligns
with the front of the console.
Plug the power cord connector into the wall receptacle.
8. Turn on the AC Main Switch, located on the rear panel.
Control Head Components
The control head contains three replaceable components:
* Machine control PCB
e Control panel overlay
* Display PCB.
The control panel overlay covers the front of the control panel (its
fasteners are accessible inside the control head). The Machine Control PCB
and display PCB (attached to a chassis) constitute two layers in a control
panel assembly within the control head (refer to Figure 11-8). Gaining
access to any of these components involves removing previous layer(s).
CUSA EXcel-8 System Service Manual 11-15
