Control Head Components

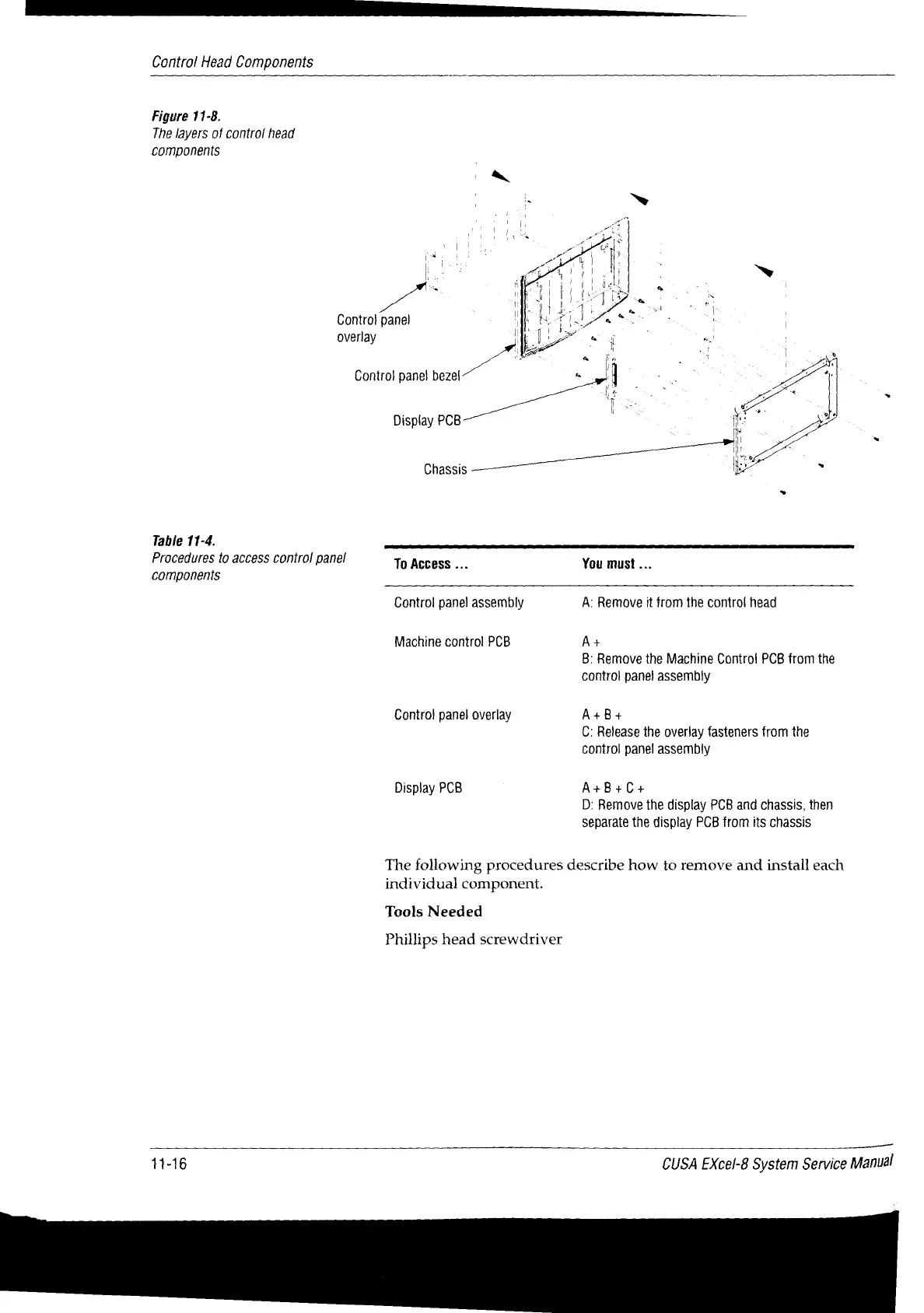

Figure 11-8.
The layers of control head
components
a ~ ， 、
Control
panel
We
し
コン
トー
ーー
!
overlay | ロコ レグ = i ] κ.
Control
panel
bezel
A
ㆍ
:
de ;
Display PCB to
Chassis
Table 11-4.
Procedures to access control panel To Access ... You must …
components
Control panel assembly A: Remove it from the control head
Machine control PCB A+
B: Remove the Machine Control PCB from the
control panel assembly
Control panel overlay A+B+
C: Release the overlay fasteners from the
control panel assembly
Display PCB A+B+C+
D: Remove the display PCB and chassis, then
separate the display PCB from its chassis
The following procedures describe how to remove and install each
individual component.
Tools Needed
Phillips head screwdriver
11-16 CUSA EXcel-8 System Service Manual
