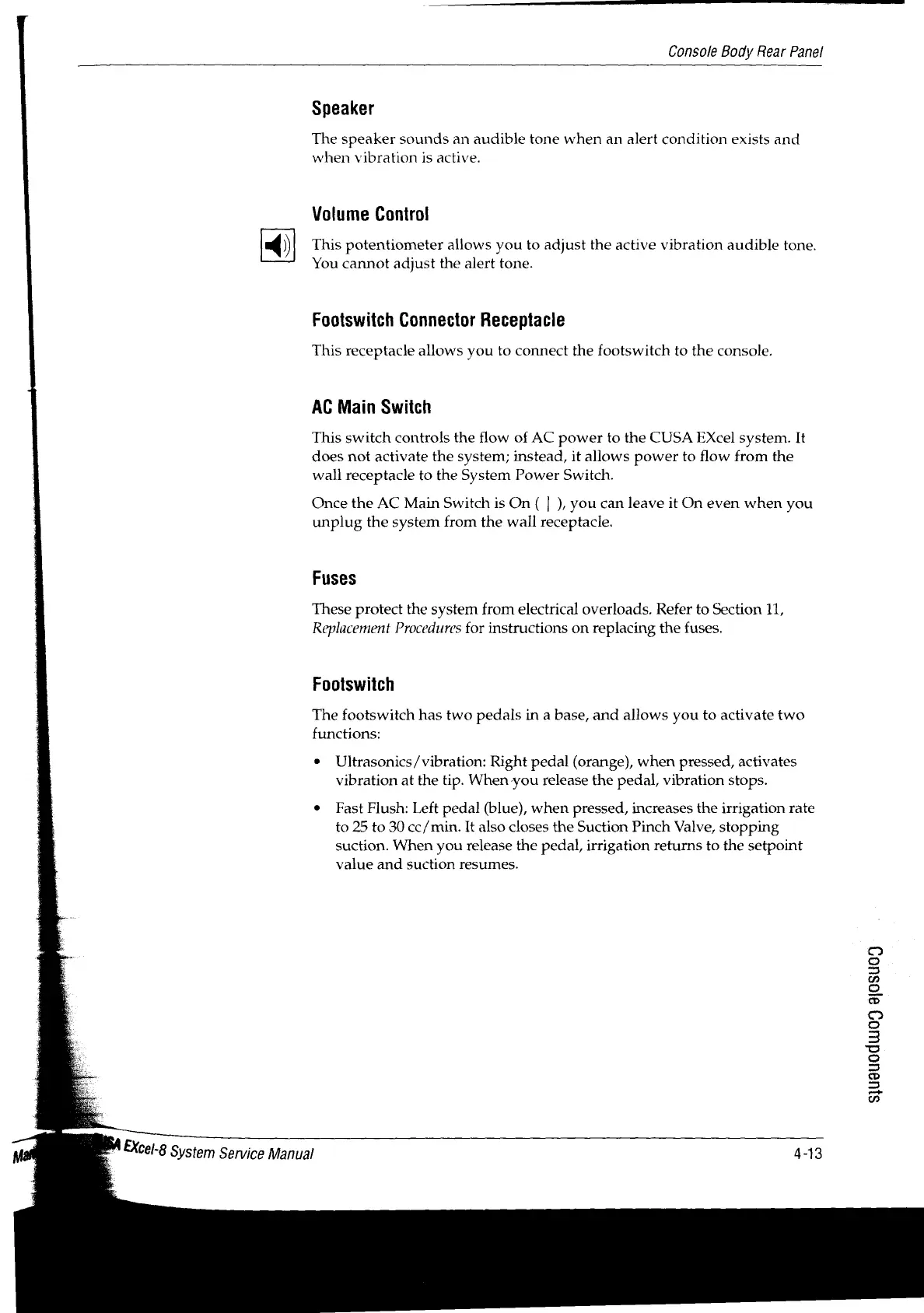

Console Body Rear Panel
Speaker
The speaker sounds an audible tone when an alert condition exists and
when vibration is active.
Volume Control
=) This potentiometer allows you to adjust the active vibration audible tone.
You cannot adjust the alert tone.
Footswitch Connector Receptacle
This receptacle allows you to connect the footswitch to the console.
AC Main Switch
This switch controls the flow of AC power to the CUSA EXcel system. It
does not activate the system; instead, it allows power to flow from the
wall receptacle to the System Power Switch.
Once the AC Main Switch is On ( | ), you can leave it On even when you
unplug the system from the wall receptacle.
Fuses
These protect the system from electrical overloads. Refer to Section 11,
Replacement Procedures for instructions on replacing the fuses.
Footswitch
The footswitch has two pedals in a base, and allows you to activate two
functions:
* Ultrasonics/vibration: Right pedal (orange), when pressed, activates
vibration at the tip. When you release the pedal, vibration stops.
* Fast Flush: Left pedal (blue), when pressed, increases the irrigation rate
to 25 to 30 cc/min. It also closes the Suction Pinch Valve, stopping
suction. When you release the pedal, irrigation returns to the setpoint
value and suction resumes.
