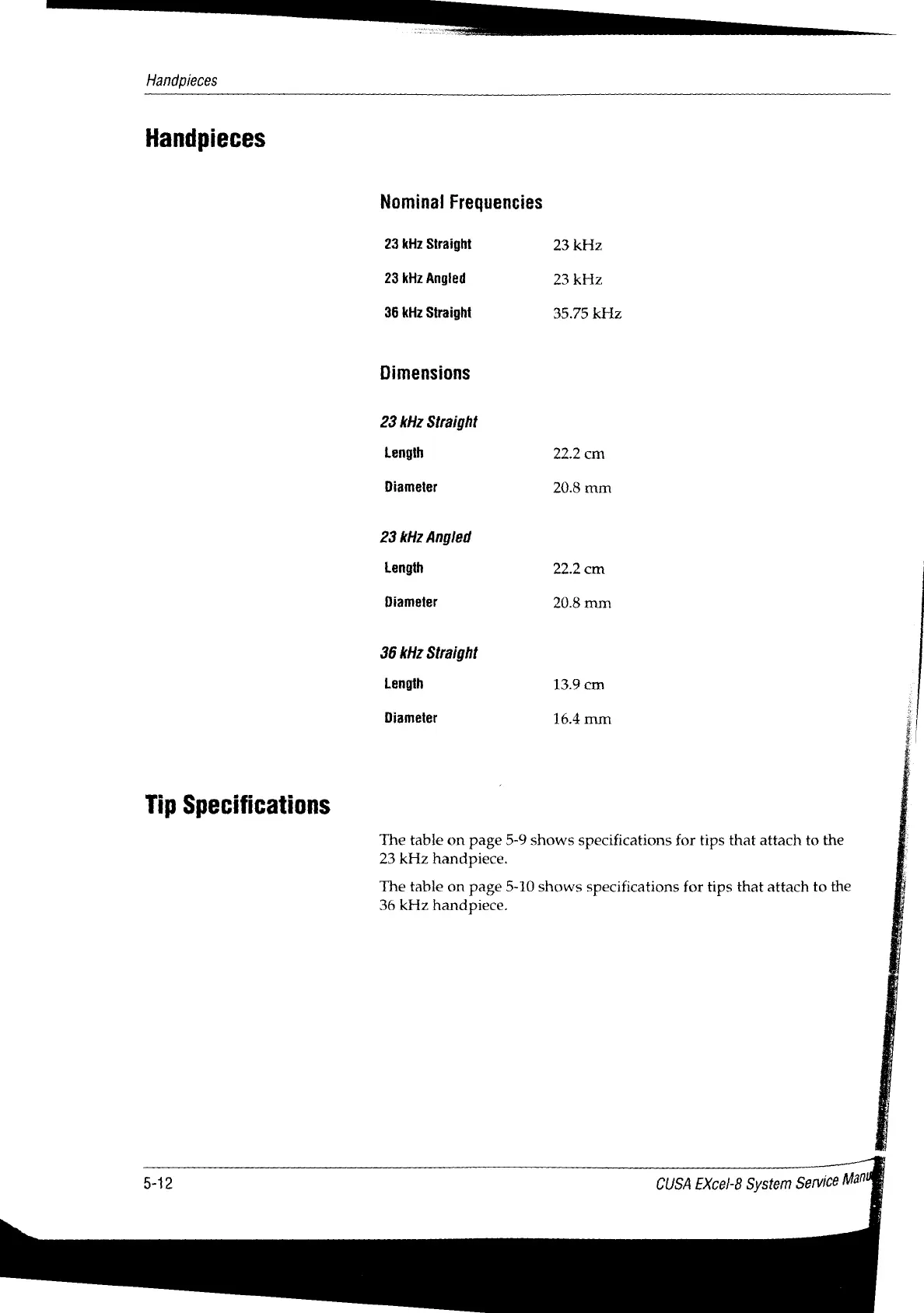

Handpieces
Handpieces
Nominal Frequencies
23 kHz Straight 23 kHz
23 kHz Angled 23 kHz
36 kHz Straight 35.75 kHz
Dimensions
23 kHz Straight
Length 22.2 ст
Diameter 20.8 mm
23 kHz Angled
Length 22.2 cm
Diameter 20.8 mm
36 kHz Straight
Length 13.9 cm
Diameter 16.4 mm
Tip Specifications
The table on page 5-9 shows specifications for tips that attach to the
23 kHz handpiece.
The table on page 5-10 shows specifications for tips that attach to the
36 kHz handpiece.
