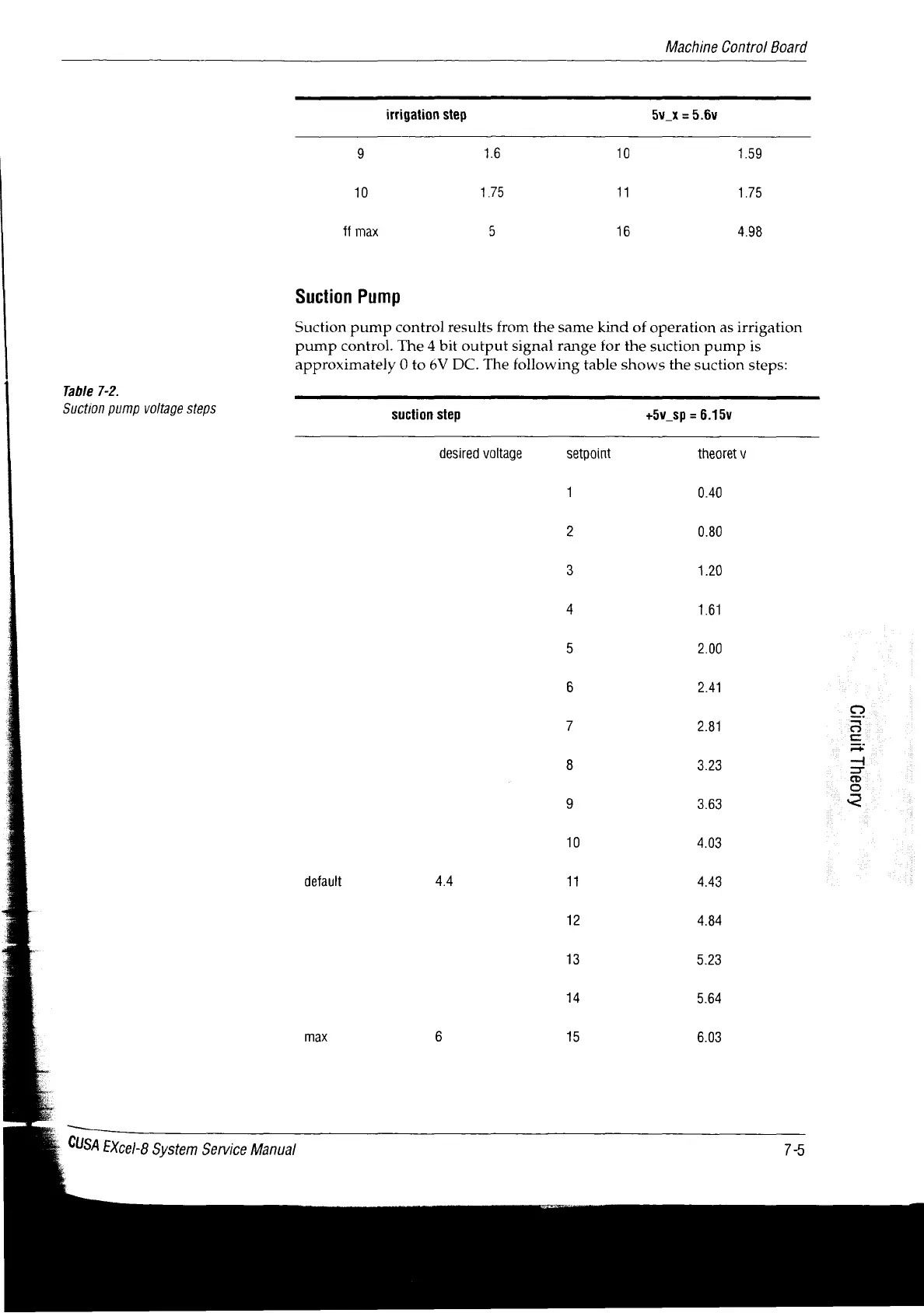

Machine Control Board
irrigation step by x=5.6v
9 1.6 10 1.59
10 1.75 11 1.75
ff max 5 16 4.98
Suction Pump
Suction pump control results from the same kind of operation as irrigation
pump control. The 4 bit output signal range for the suction pump is
approximately 0 to 6V DC. The following table shows the suction steps:
Table 7-2.
Suction pump voltage steps suction step +5v_sp = 6.15v
desired voltage setpoint theoret v
1 0.40
2 0.80
3 1.20
4 1.61
5 2.00
6 2.41
e
7 2.81 o
=.
8 3.23 3
co
2
9 3.63 <
10 4.03
default 44 11 4.43
12 4.84
13 5.23
14 5.64
max 6 15 6.03
