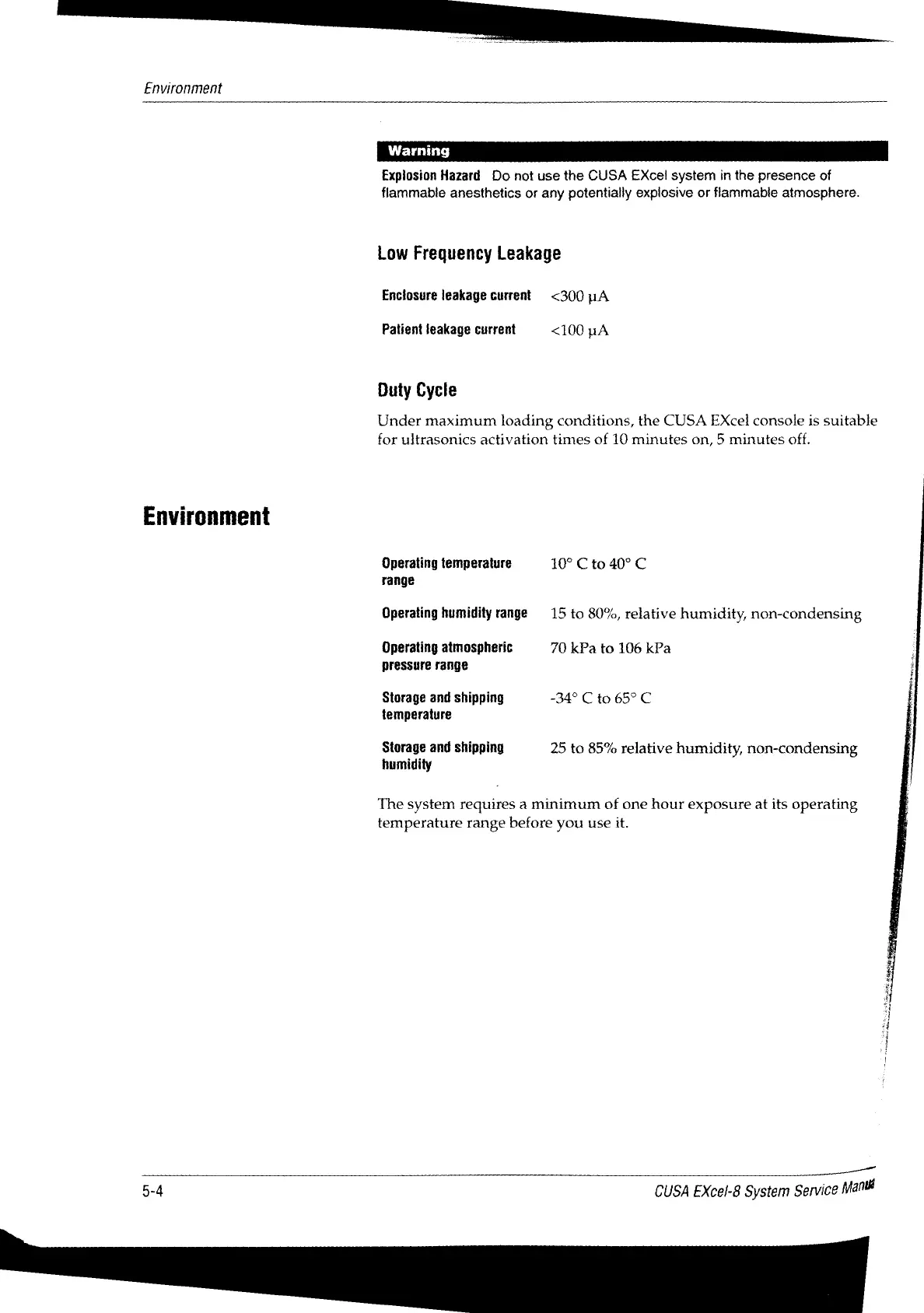

Valleylab CUSA EXcel-8 - Duty Cycle; Environment; Low Frequency Leakage

Environment
Explosion Hazard Do not use the CUSA EXcel system in the presence of
flammable anesthetics or any potentially explosive or flammable atmosphere.
Low Frequency Leakage
Enclosure leakage current
Patient leakage current
Duty Cycle
<300 pA
<100 pA
Under maximum loading conditions, the CUSA EXcel console is suitable
for ultrasonics activation times of 10 minutes on, 5 minutes off.
Environment
Operating temperature 10° C to 40° C
range
Operating humidity range 15 to 80%, relative humidity, non-condensing
Operating atmospheric 70 kPa to 106 kPa
pressure range
Storage and shipping -34° C to 65° C
temperature
Storage and shipping 25 to 85% relative humidity, non-condensing
humidity
The system requires a minimum of one hour exposure at its operating
temperature range before you use it.
!
|
一 一
5-4 CUSA EXcel-8 System Service Mant
