Valleylab CUSA EXcel-8 - Remove the Control Panel Assembly

Ultrasonics and Machine Control Printed Circuit Boards
Remove the Control Pane! Assembly
1. Swivel the control head so that the front of the control panel is 90° from
the front of the console.
2. Remove four screws (M4 Phillips) and four lock washers (M4), located
at the rear of the control head, that fasten the control panel assembly to
the control head.
A
> Important
When the screws are loose, take 3. Slide the contro! panel forward far enough to allow disconnecting the
care not to let the control panel following cables:
assembly fall out of the control
head. 4 40 pin ribbon cable (J3)
4 20 pin ribbon cable (J5)
4 10 pin cable (14)
4 6 pin cable (J2).
Refer to Figure 11-6.

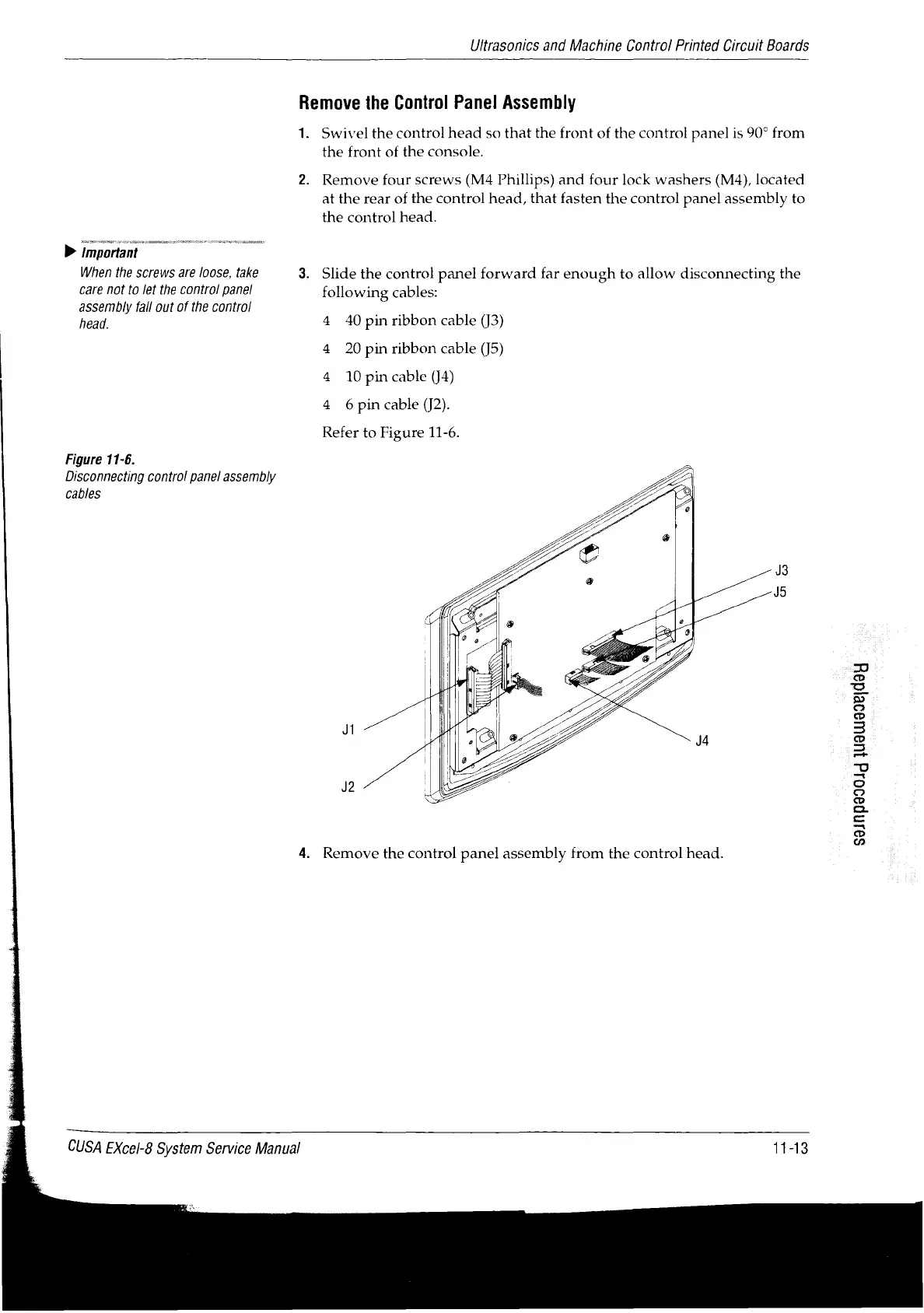

Figure 11-6.
Disconnecting control panel assembly
cables
sa1np990i4
Huawaoejday
4. Remove the control panel assembly from the control head.
CUSA EXcel-8 System Service Manual 11-13
