Preparing the CUSA EXcel Console for Use
Replacing Fuses (If Necessary)
Notice
To avoid product damage, be sure to insert fuses that are appropriate to the
power supply:
» 220 to 240 V — T5A, Time Delay (default)
« 95 to 120 V — T10A, Time Delay
You must change the fuses (located on the rear panel) if either of the
following situations occur:
‧ <A fuse burns out.
* Your facility receives 95 to 120 V power.
Tools needed: Small flat-headed screwdriver
Procedure (refer to Figure 3-2):
1. Using the screwdriver, turn the fuse cover counterclockwise (about
45°). The fuse holder pops loose.

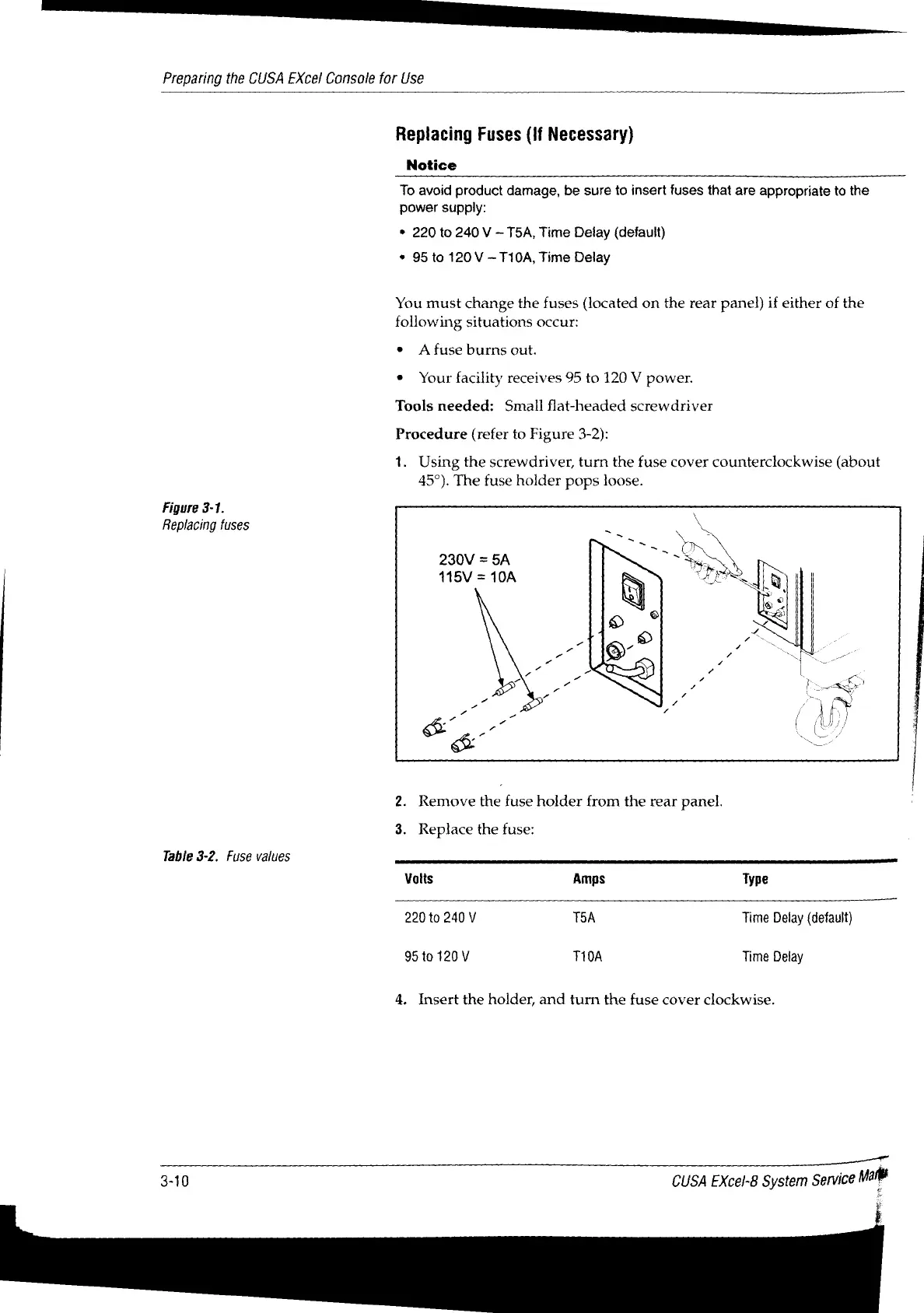

Figure 3-1.
Replacing fuses
230V = 5A
115V = 10A
2. Remove the fuse holder from the rear panel.
3. Replace the fuse:
Fabie 3-2. Fuse values
Volts Amps Type
220 to 240 V T5A Time Delay (default)
95 to 120 V T10A Time Delay
4. Insert the holder, and turn the fuse cover clockwise.
3-10 CUSA EXcel-8 System Service Mar
