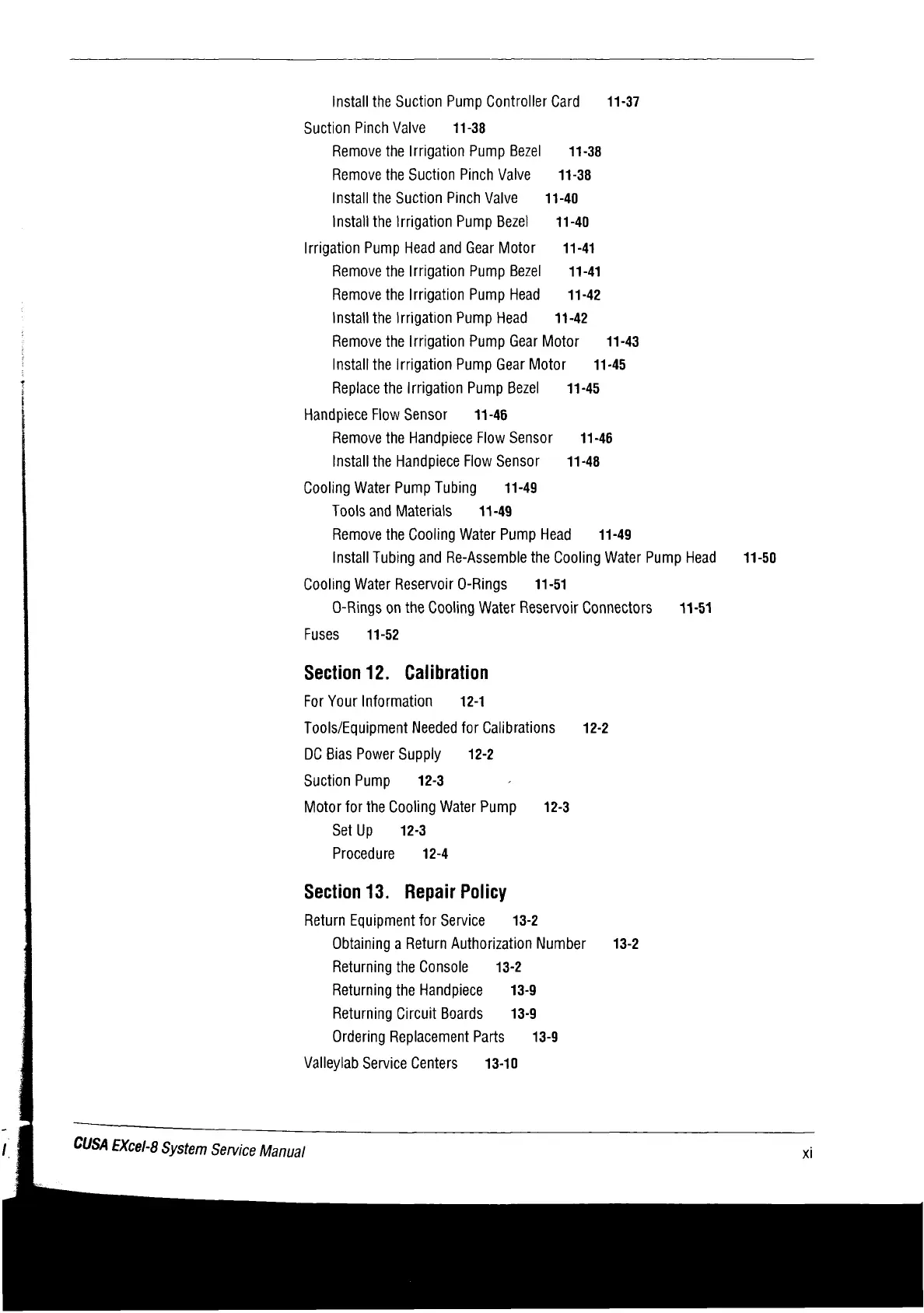

Valleylab CUSA EXcel-8 - Page 11

Install the Suction Pump Controller Card 11-37
Suction Pinch Valve 11-38
Remove the Irrigation Pump Bezel 11-38
Remove the Suction Pinch Valve 11-38
Install the Suction Pinch Valve 11-40
Instali the Irrigation Pump Bezel 11-40
Irrigation Pump Head and Gear Motor 11-41
Remove the Irrigation Pump Bezel 11-41
Remove the Irrigation Pump Head 11-42
Install the Irrigation Pump Head 11-42
Remove the Irrigation Pump Gear Motor 11-43
Install the Irrigation Pump Gear Motor 11-45
Replace the Irrigation Pump Bezel 11-45
Handpiece Flow Sensor 11-46
Remove the Handpiece Flow Sensor 11-46
Install the Handpiece Flow Sensor 11-48
Cooling Water Pump Tubing 11-49
Tools and Materials 11-49
Remove the Cooling Water Pump Head 11-49
Install Tubing and Re-Assemble the Cooling Water Pump Head 11-50
Cooling Water Reservoir O-Rings 11-51
O-Rings on the Cooling Water Reservoir Connectors 11-51
Fuses 11-52
Section 12. Calibration
For Your Information 12-1
Tools/Equipment Needed for Calibrations 12-2
DC Bias Power Supply 12-2
Suction Pump 12-3
Motor for the Cooling Water Pump 12-3
Set Up 123
Procedure 12-4
Section 13. Repair Policy
Return Equipment for Service 13-2
Obtaining a Return Authorization Number 13-2
Returning the Console 13-2
Returning the Handpiece 13-9
Returning Circuit Boards 13-9
Ordering Replacement Parts 13-9
Valleylab Service Centers 13-10
i
CUSA
EXcel-8
System
Service
Manual
*
