Engineer Troubleshooting

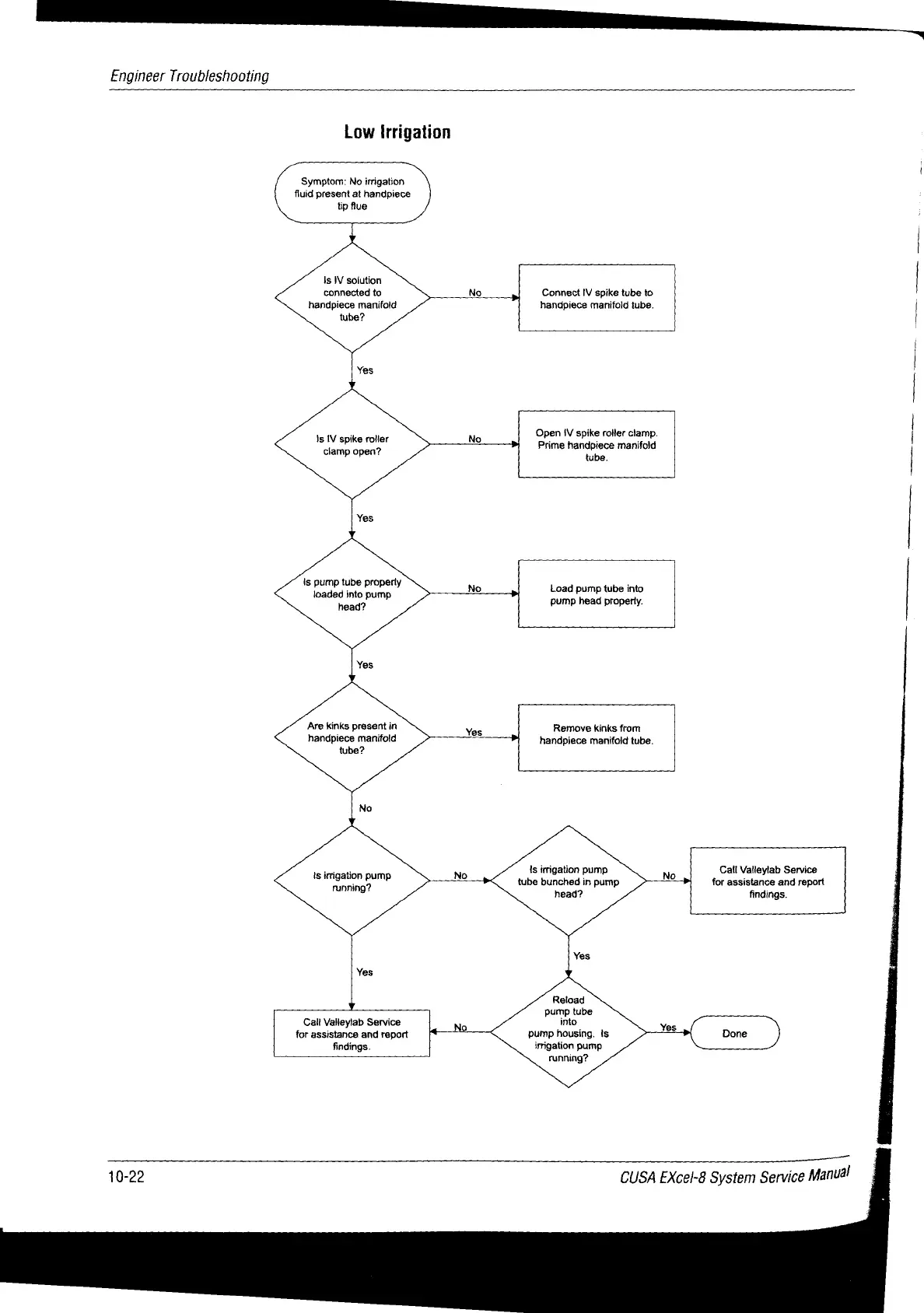

Low Irrigation
Symptom: No irrigation
fluid present at handpiece
tip flue
Is IV solution
connected to
handpiece manifold
tube?
Connect IV spike tube to
handpiece manifold tube.
Open IV spike roller clamp.
Prime handpiece manifold
tube.
Is IV spike roller
ciamp open?
Is pump tube properly
loaded into pump
head?
Load pump tube into
pump head property.
Remove kinks from
handpiece manifold tube.
Are kinks present in
handpiece manifold
tube?
Call Valleylab Service
for assistance and report
findings.
Is irrigation pump
tube bunched in pump
head?
ts irrigation pump
running?
Reload
pump tube
into
pump housing. 1$
irrigation pump
running?
Call Valleylab Service
for assistance and report
findings.
10-22
CUSA EXcel-8 System Service Manual
