Ultrasonics and Machine Control Printed Circuit Boards
6. Remove the ultrasonics PCB assembly from the console. Place the
ultrasonics PCB assembly on the floor next to the console.
7. Disconnect the ultrasonics PCB fan assembly by removing the
following lead wires from the 6-pin fan connector housing (removed
from J14). Refer to Figure 11-4.
Table 11-2.
Ultrasonics PCB fan assembly Color Pin
connectors
red 5
black 6

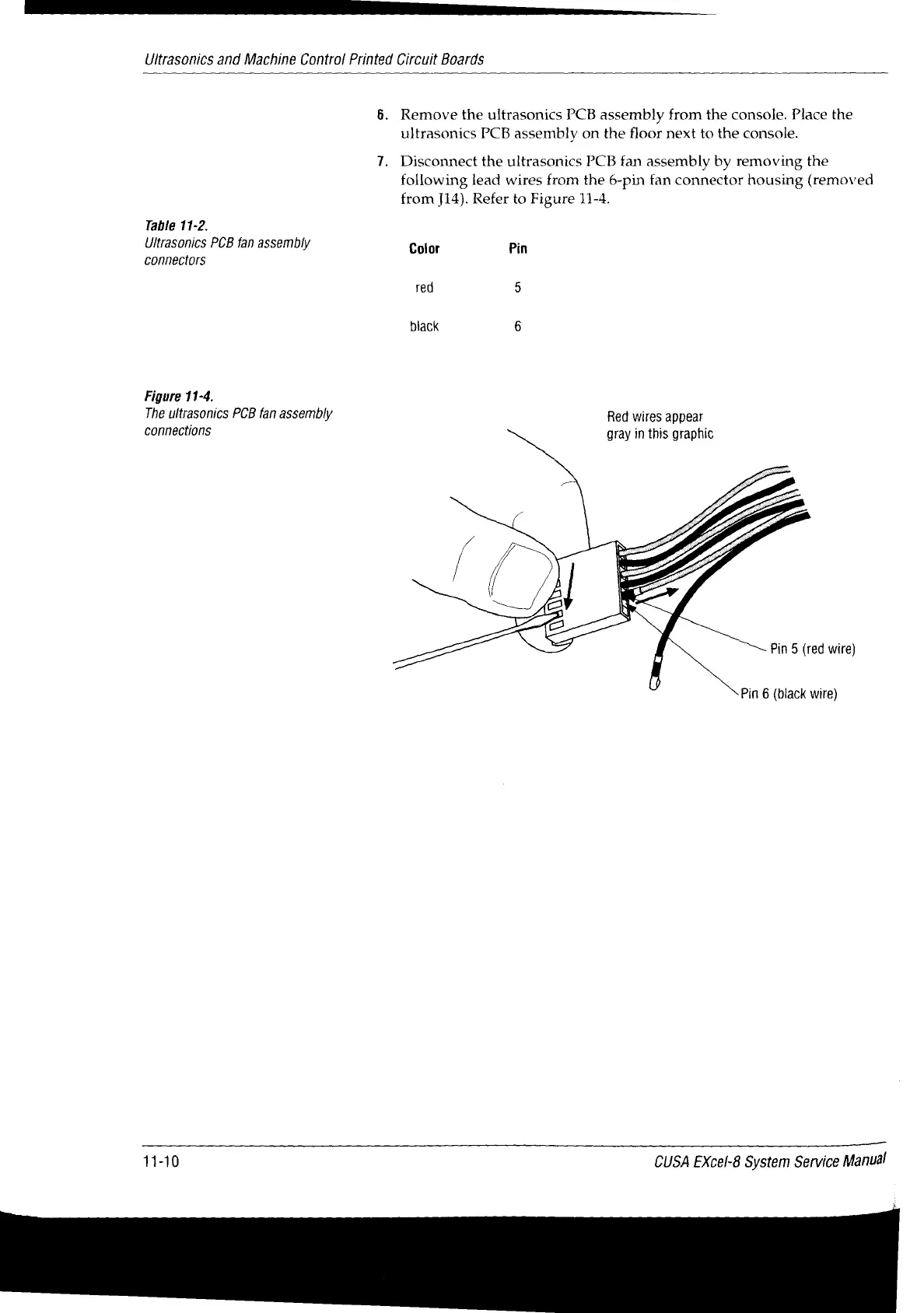

Figure 11-4.
The
ultrasonics
PCB
fan
assembly
Red
wires
appear
connections
gray
in
this
graphic
Pin 5 (red wire)
Pin 6 (black wire)
11-10 CUSA EXcel-8 System Service Manual
