Suction Pump and Controller Card
3. Disconnect the cables from the suction pump to the suction pump
controller card:

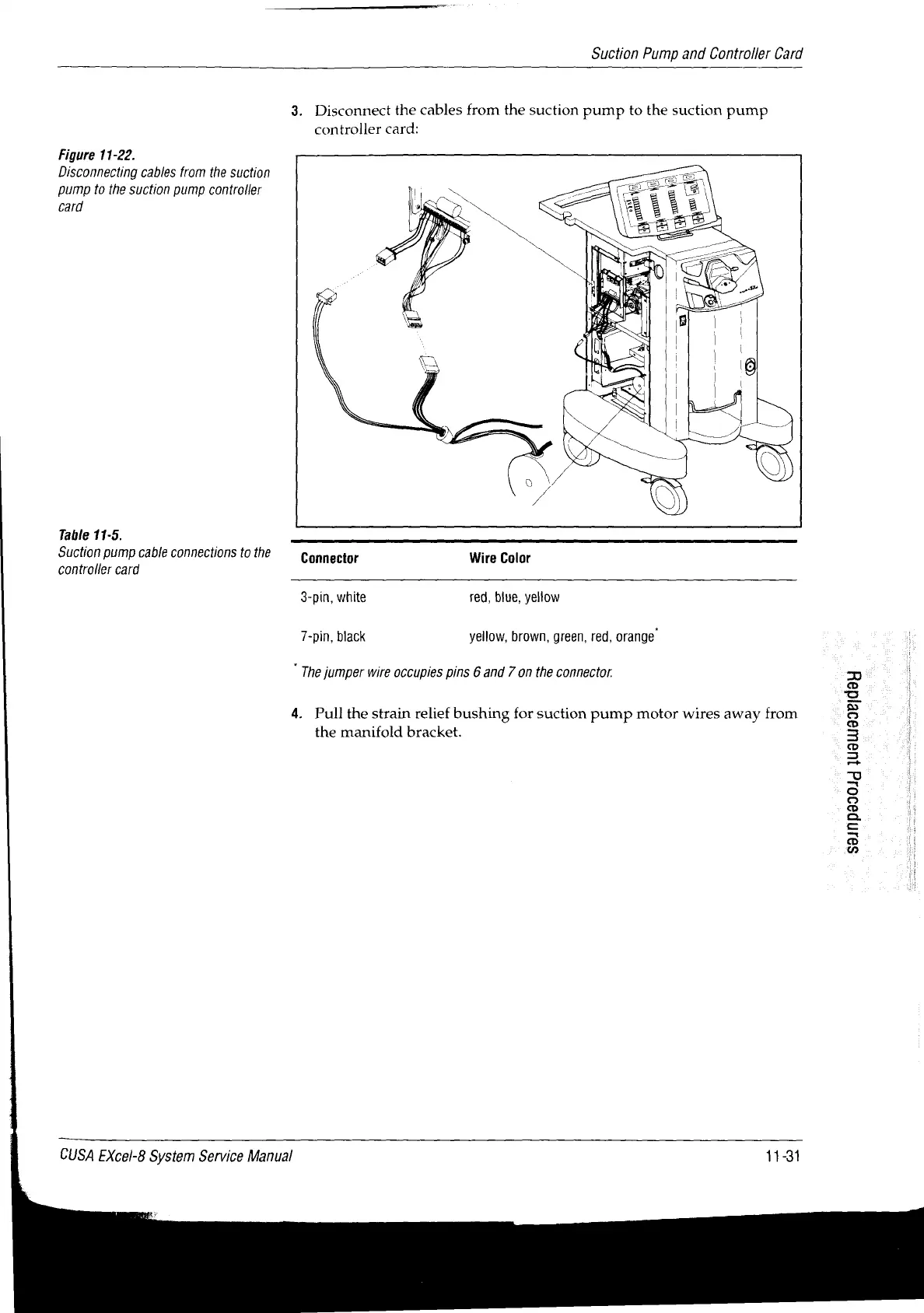

Figure 11-22.
Disconnecting cables from the suction
pump to the suction pump controller
card
Table 11-5.
Suction pump cable connections to the Connector Wire Color
controller card
3-pin, white red, blue, yellow
7-pin, black yellow, brown, green, red, orange“
“The jumper wire occupies pins 6 and 7 on the connector.
4. Pull the strain relief bushing for suction pump motor wires away from
the manifold bracket.
Sa1nPp99014
1U9UU99PId9J
CUSA EXcel-8 System Service Manual 11-31
