Suction Pump and Controller Card
6. Remove the 3/8 in. ID suction tube and clamp from the 90° elbow on
the suction pump: Set them aside for re-use.
Note: Do not remove the split bushing restraint from the tube.
Note: The new suction pump does not include this tube, clamp, or
bushing.

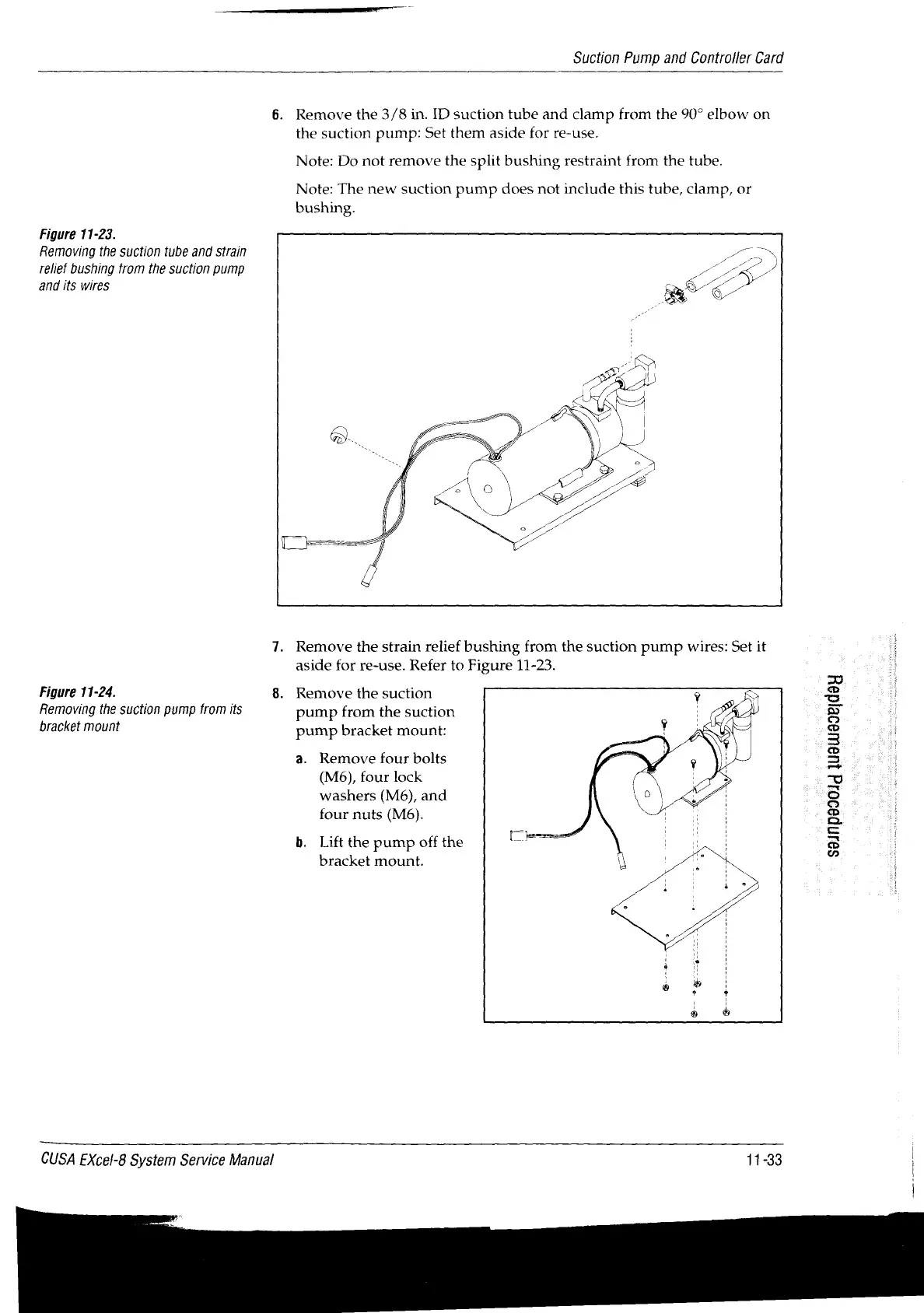

Figure 11-23.
Removing the suction tube and strain OSN
relief bushing trom the suction pump a < 2
. . ご v 一
and its wires a 6
Te =
7. Remove the strain relief bushing from the suction pump wires: Set it
aside for re-use. Refer to Figure 11-23.
Figure 11-24. 8. Remove the suction
Removing the suction pump from its pump from the suction
bracket mount pump bracket mount:
a. Remove four bolts
(M6), four lock
washers (M6), and
four nuts (M6).
b. Lift the pump off the
bracket mount.
