Remove
the
Control
Panel
Overlay
Four
snap-in
standoffs
fasten
the
overlay
to
the
control
panel
assembly.
1.
Attach
an
ESD
strap.
2.
With
your
fingertips
or
small
pliers,
squeeze
the
spring-loaded
flanges
on
the
standoffs
to
retract
them.
3.
With
the
flanges
retracted,
push
the
standoffs
out
of
the
control
panel
assembly
to
release
the
overlay.

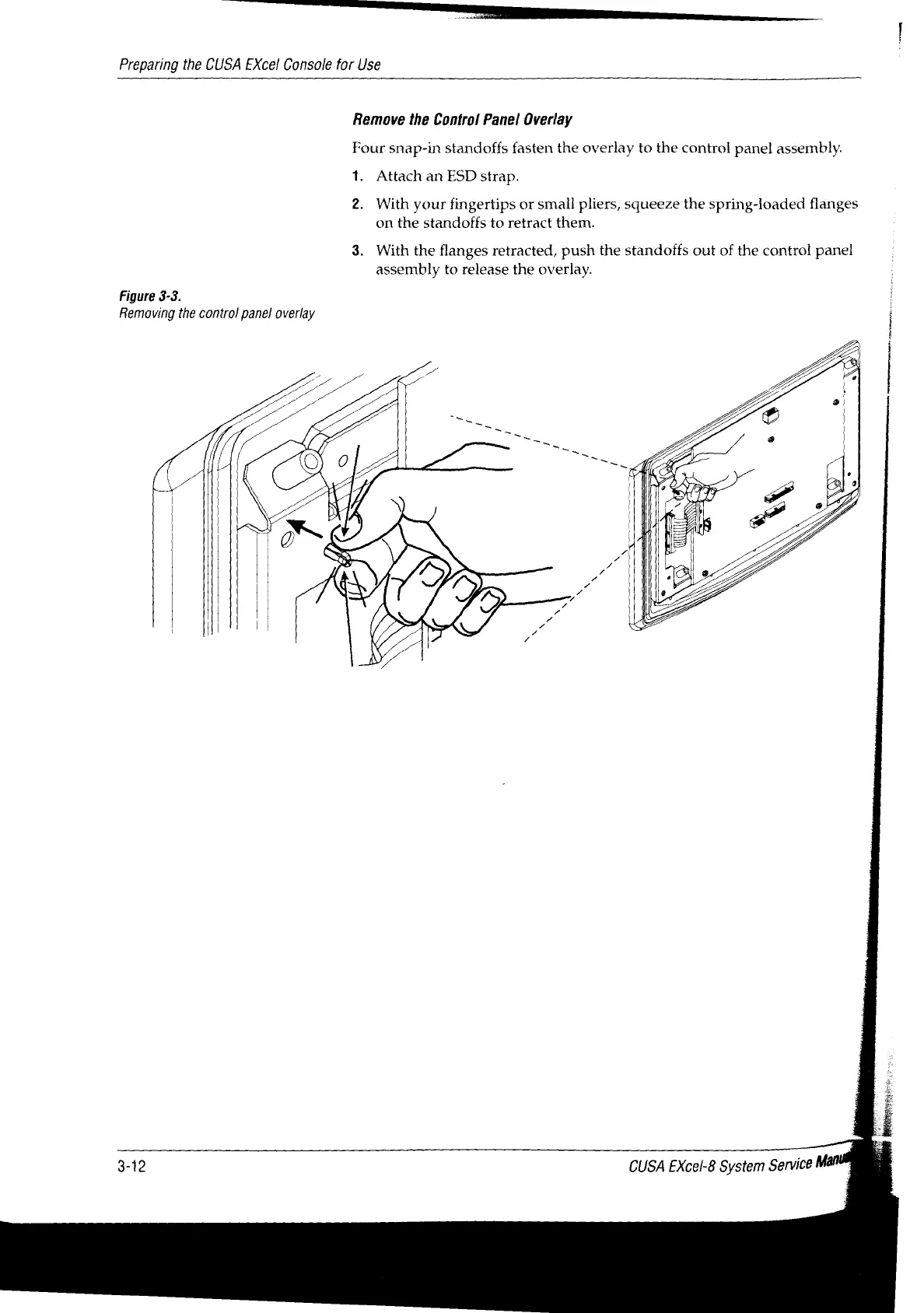

Figure
3-3.
Removing
the
control
panel
overlay
CUSA
EXcel-8
System
Service
Mam
